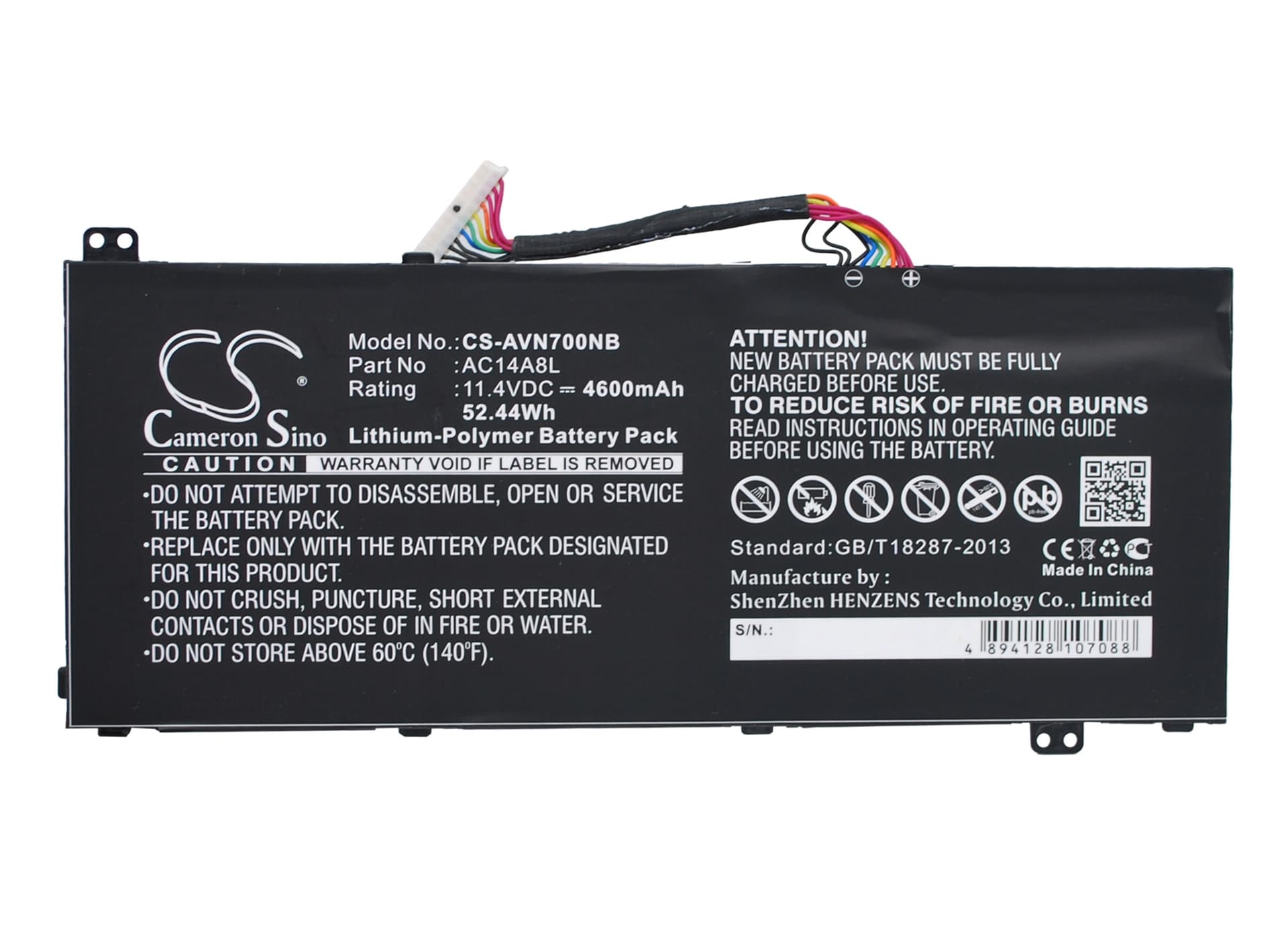

Acer Aspire VN7 Series — 11.4V Li-Polymer Replacement Battery (AC14A8L)
This 11.4V, 4600mAh (52.44Wh) Li-Polymer battery replaces the factory cell in the Acer Aspire VN7 notebook line. It fits the VN7-571, VN7-571G, VN7-591, and over 170 additional VN7 configurations. OEM part numbers AC14A8L, KT.0030G.001, AC15B7L, and KT.00307.003 all cross to this cell.
- VN7 platform fit: The VN7 line runs a shared 11.4V three-cell Li-Polymer architecture across its sub-models. The connector pinout, BMS handshake protocol, and charge controller voltage rails are consistent across the 571, 571G, and 591 variants — which is why a single replacement cell covers the full range.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a VN7-591 unit. The BMS negotiated correctly with the Acer EC firmware, reported state-of-charge accurately, and did not trigger any overcurrent or temperature fault flags during a full charge sequence.
- First-cycle calibration on the VN7: After installing, run one full discharge until the laptop hibernates, then charge uninterrupted to 100% without interruption. This forces the Acer BIOS to complete its battery learn cycle and clears the inaccurate "poor health" or "replace battery" warning that appears after every cell swap.
Why the VN7 BIOS reports poor battery health after a new cell install
The Acer BIOS reads health data from EEPROM registers on the battery's fuel gauge IC. When a new cell arrives, those registers carry factory default values — not real cycle history — and the BIOS flags the battery as degraded before it has even been used. This is a firmware interpretation issue, not a fault with the replacement cell. Running one full discharge-to-hibernate followed by a complete uninterrupted charge resets the learn cycle. After two to three calibration cycles, the BIOS health percentage will stabilise and reflect the actual cell condition.
VN7 shutting down at 20–30% charge shown on the gauge
This symptom means the cell voltage is collapsing under the combined load of the CPU and display before the fuel gauge IC expects it to. The fuel gauge was calibrated against the old degraded cell, so its voltage-to-capacity curve no longer matches the new chemistry. Under a sustained load spike — rendering, gaming, or a CPU boost event — the cell drops below the BMS cutoff threshold while the OS still shows 20–30% remaining. Run two full discharge and charge calibration cycles to realign the fuel gauge IC against the new cell. After calibration, the gauge should track accurately down to the 3.0V per cell floor.
