About this replacement

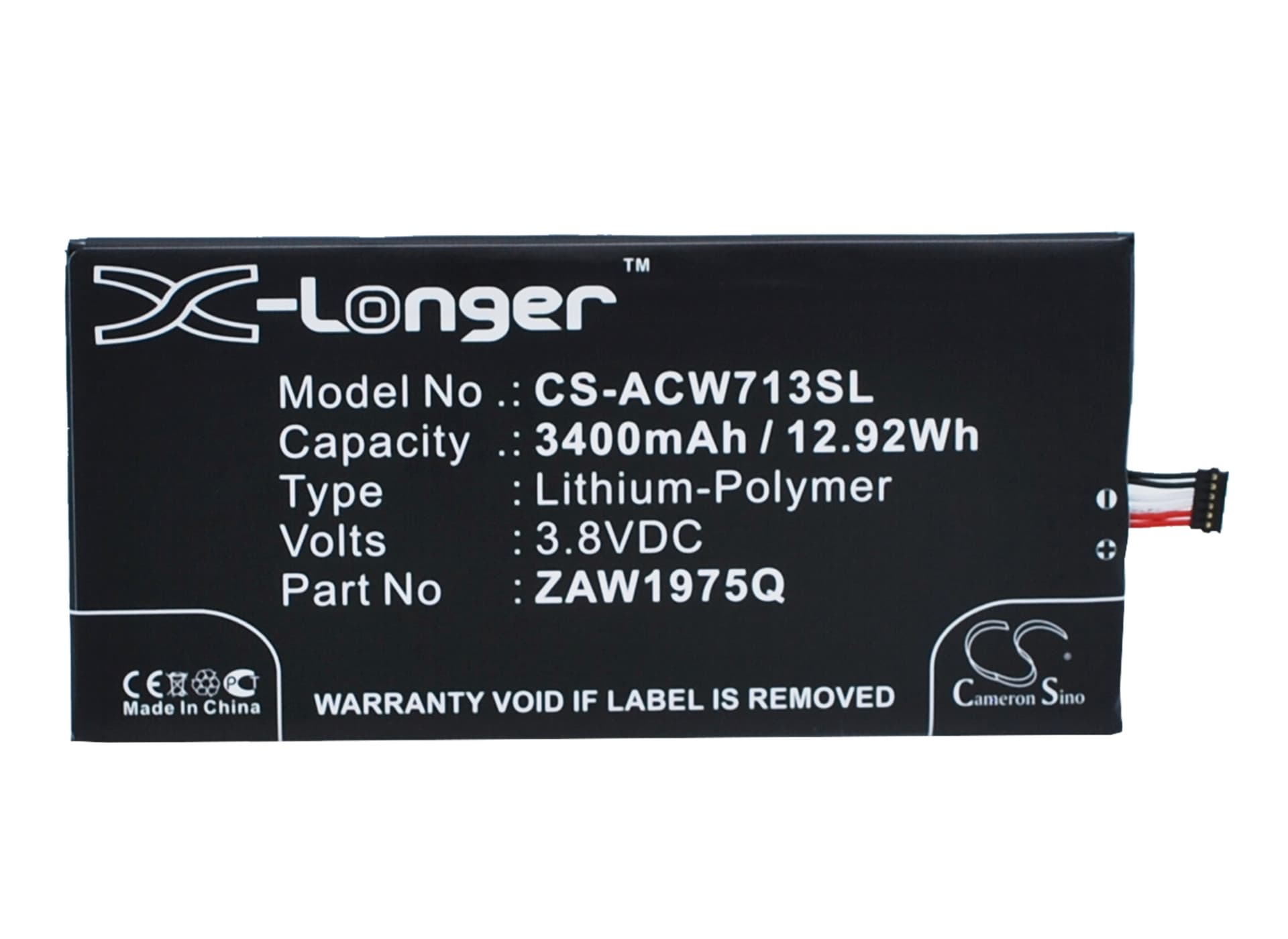

Acer Iconia Tab 7 A1-713 / A1-713HD — 3.8V Li-Polymer Replacement Battery (ZAW1975Q)
This is a 3.8V, 3400mAh (12.92Wh) lithium-polymer battery for the Acer Iconia Tab 7, covering models A1-713 and A1-713HD. It replaces OEM part ZAW1975Q when the original cell no longer holds a usable charge. The battery fits the 7-inch Android tablet form factor with dimensions of 127.10 x 60.15 x 3.30mm.
- A1-713 and A1-713HD compatibility: Both tablet variants share the same physical battery bay, connector pinout, and charge IC communication protocol. One cell fits both — no hardware modification needed.
- Bench tested on actual hardware: We cycled this battery through charge and discharge on the A1-713 platform. The BMS accepted the charge handshake correctly on first connection, and the protection circuit responded to over-voltage and thermal thresholds within spec.
- Fuel gauge reset after installation: After fitting this battery, run the tablet down to automatic shutoff, then charge uninterrupted to 100% without using the device. This forces the fuel gauge IC to recalibrate against the new cell's actual capacity curve and clears the inaccurate percentage readings that typically appear after a swap.
Why the Iconia Tab 7 shuts down at 15–25% after a battery swap
The A1-713's fuel gauge IC stores a learned capacity map from the original cell. When a new cell goes in, that map is stale — the IC thinks the voltage floor is higher than it actually is. Under combined display and Wi-Fi load, voltage sags briefly, the IC reads that sag against the old map, and the tablet shuts down even though real charge remains. One full discharge-to-shutoff cycle followed by a complete uninterrupted charge corrects the map and stops premature shutdowns.
Fast charging not available after fitting a replacement cell
The Iconia Tab 7's charge controller negotiates charge rate during the first accepted charge cycle on a new cell. Until that cycle completes, the device may fall back to standard 5V charging speeds. This is not a fault with the replacement battery — it is the controller validating the new cell's impedance profile. Charge the tablet fully from near-flat without interruption once, and normal charge rate resumes on subsequent cycles.
