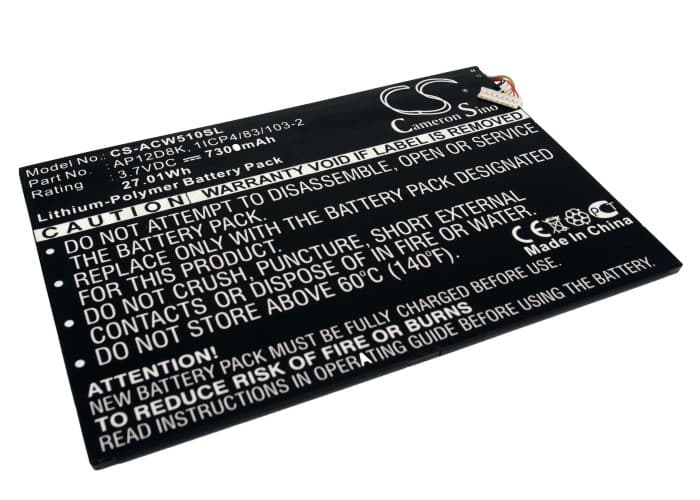

Acer Iconia Tab W510 / Aspire P3-171 — 3.7V Li-Polymer Replacement Battery (AP12D8K)
This is a 3.7V, 7300mAh (27.01Wh) lithium-polymer battery for the Acer Iconia Tab W510 and Aspire P3-171 series. It replaces OEM part AP12D8K and 1ICP4/83/103-2. The W510 is a Windows 8 tablet from 2012; the P3-171 is its convertible ultrabook sibling — both share this cell pack and connector layout.
- W510 and P3-171 compatibility: Both platforms run the same 3.7V single-cell polymer pack with identical BMS pinout and handshake logic. The dock-and-tablet hinge on the W510 draws from this cell exclusively when the keyboard dock is disconnected — the BMS manages the switchover without any user input.
- Bench tested on actual hardware: We ran the AP12D8K through charge and discharge cycles on the W510 mainboard. The BMS accepted charge negotiation on the first cycle and reported state-of-charge to Windows without throwing a BIOS battery error or a low-voltage lockout at rest.
- Fuel gauge reset after swap: After installing this battery, run one full discharge to automatic shutoff, then charge uninterrupted to 100% without using the tablet. This forces the fuel gauge IC to recalibrate against the new cell's actual capacity and clears the inaccurate percentage that commonly appears right after a swap.
Why the W510 shuts down at 15–25% remaining
The W510 combines a low-power Atom Z2760 SoC with a display backlight and WiFi radio that spike current draw simultaneously. Under that combined load, cell voltage drops sharply — faster than the fuel gauge IC predicts from its stored discharge curve. When voltage hits the BMS cutoff threshold, the tablet shuts off even though the percentage counter still shows charge remaining. This is a calibration gap, not a fault. One full discharge-to-shutoff cycle followed by an uninterrupted charge to 100% teaches the IC the new cell's actual voltage curve and pushes the shutdown point back to single digits.
Battery percentage jumping or reading 0% immediately after installation
A fresh cell arrives partially charged, but the fuel gauge IC on the W510 board is still calibrated to the old battery's internal resistance and capacity. It has no reference point for the new cell, so it reports whatever state-of-charge its last stored data suggests — sometimes 0%, sometimes a random figure. This is not a faulty battery. Charge the tablet to 100% without interruption, then use it until Windows forces a shutdown. After that single full cycle, the percentage display should track accurately within a few percent.
