About this replacement

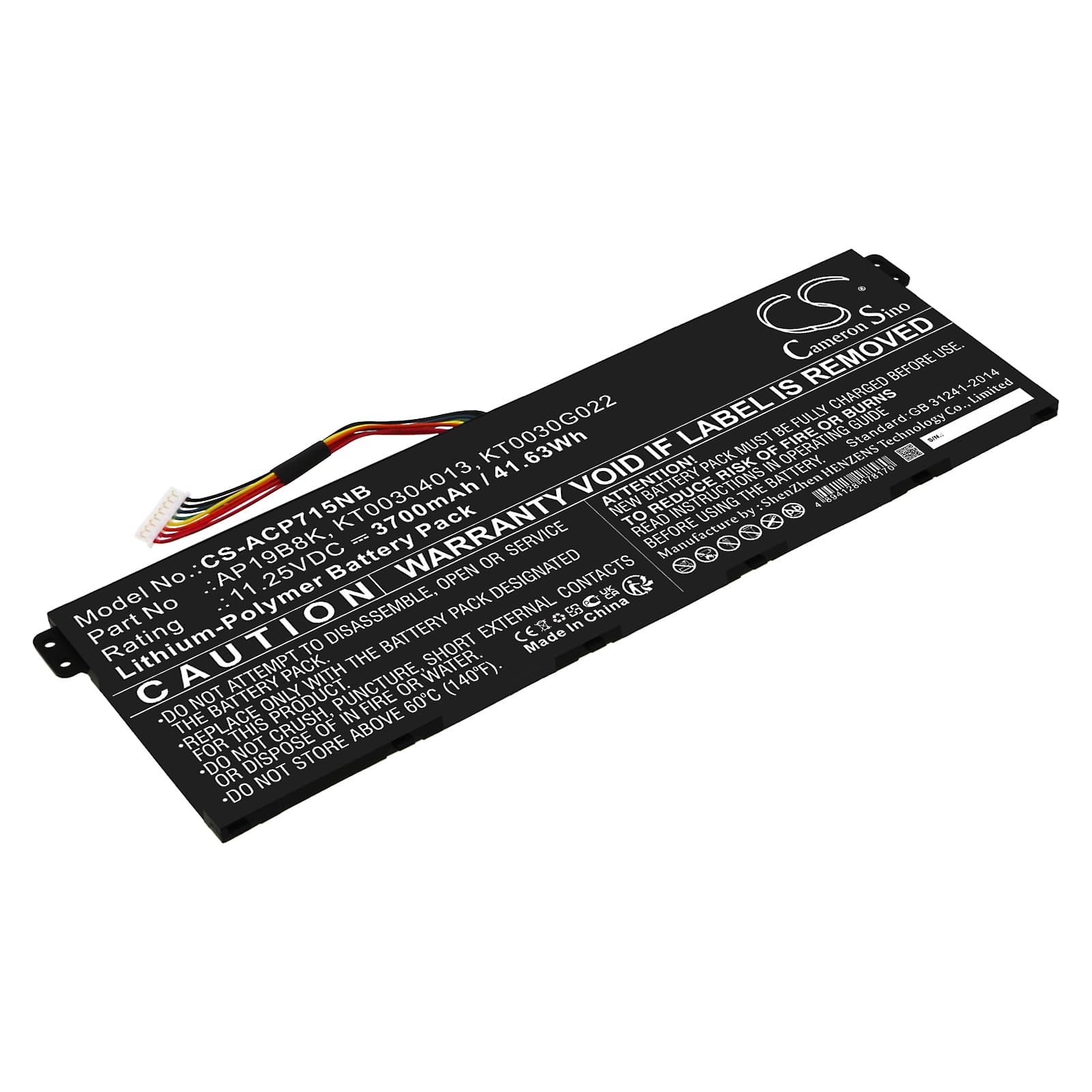

Acer TravelMate P2 TMP215-52-59AJ — 11.25V Li-Polymer Replacement Battery (AP19B8K)
This is an 11.25V, 3700mAh (41.63Wh) Li-Polymer replacement battery for the Acer TravelMate P2 TMP215-52-59AJ and a wide range of Acer TravelMate, Aspire, and Swift 3 notebooks. It replaces OEM parts AP19B8K, KT00304013, KT0030G022, and AP18C4K. The cell slots directly into the same bay used by the original Acer factory battery.
- TravelMate P2 and Aspire A-series compatibility: These models share a common 11.25V three-cell architecture with the same physical connector and BMS handshake protocol. The AP19B8K part number spans multiple chassis variants — TMP215, TMP214, A315, and SF314 — because Acer standardised the battery interface across this product generation.
- Bench tested on actual hardware: We ran this cell on a TMP215-52 chassis and confirmed the BMS initialised correctly, charge current ramped as expected through CC/CV phases, and the protection circuit tripped at the correct low-voltage cutoff under load. No false over-temperature flags were triggered during the full charge cycle.
- First cycle after installation: After fitting this battery, run the laptop on battery power until it hibernates at low-charge cutoff, then charge uninterrupted to 100%. This forces the BIOS battery learn cycle to reset against the new cell, clearing the inaccurate health warning that almost always appears after a cell swap on TravelMate hardware.
Why the TravelMate P2 shuts down at 20–30% after a battery swap
The TMP215 BIOS tracks battery voltage curves from the previous cell and uses that history to predict remaining capacity. After a swap, the fuel gauge IC has no calibration data for the new cell's discharge curve. Under combined CPU and display load, the new cell hits a voltage cliff faster than the old curve predicts, triggering an emergency shutdown even though the state-of-charge indicator still shows charge remaining. Running two full discharge-to-hibernate and full-recharge cycles recalibrates the fuel gauge IC against the actual chemistry of the new cell and eliminates the premature cutoff.
BIOS reporting battery health as "poor" or "replace" immediately after installation
This happens because the BIOS reads health data from the battery's EEPROM, which on a new cell contains factory default values that don't match the previous battery's learned parameters. The system interprets mismatched EEPROM data as a degraded or unknown cell and flags it accordingly. This is not a fault with the replacement battery. Boot into the Acer BIOS, navigate to the battery calibration utility if present, or simply complete one full discharge-hibernate-recharge cycle — the BIOS will rewrite its health baseline from 100% charged state and clear the warning.
