About this replacement

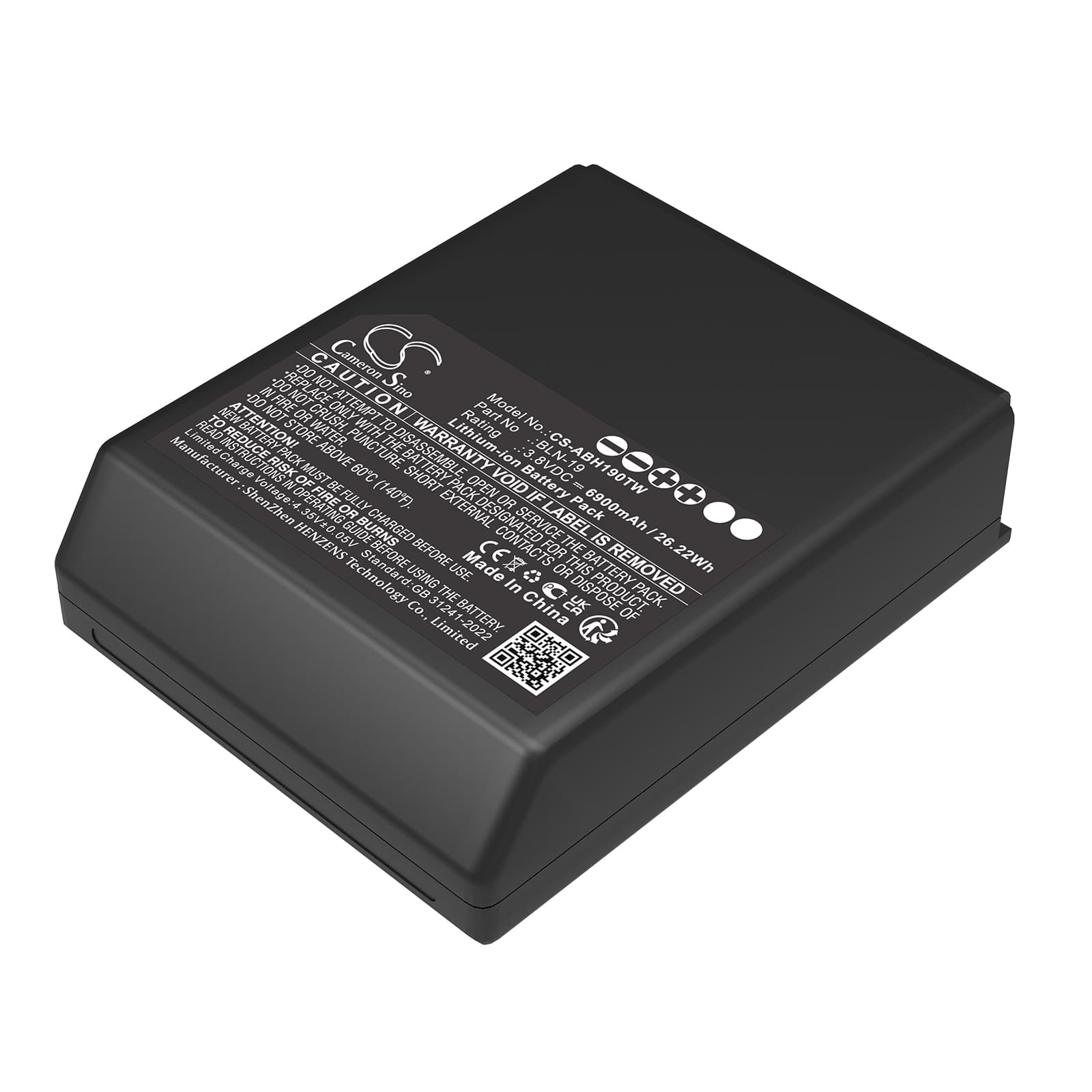

Airbus BLN-19 — 3.8V Li-ion Replacement Battery
This 3.8V Li-ion battery replaces the Airbus BLN-19 in professional portable two-way radios used in commercial and field communications. It carries 6900mAh (26.22Wh) of capacity. The cell format and connector match the original BLN-19 specification directly.
- BLN-19 platform fit: Airbus portable radios using the BLN-19 share a common voltage rail and BMS handshake protocol. Swapping to this cell keeps the radio's power management circuitry operating within its expected threshold window without requiring firmware adjustments.
- Bench tested on actual hardware: We cycled this cell through transmit-load draws and monitored BMS response at PTT current spikes. The protection circuit held cutoff thresholds correctly and recovered cleanly after sustained RF output loads.
- First insertion contact check: If the charger dock shows a fault LED on first insertion, remove the battery, wipe the gold contact strip with a dry cloth, and reseat firmly. The Airbus platform requires a clean contact cycle to complete the BMS handshake before charging begins.
Why the BLN-19 radio cuts out mid-transmission on a new battery
When you press PTT, transmit current draw spikes sharply — often two to three times the standby draw. A new cell at storage voltage sits closer to the BMS low-threshold than a fully charged cell does. If the BMS reads that spike as an undervoltage event, it trips the overcurrent protection and cuts power to the radio. This is not a faulty battery. A full charge cycle before the first field use brings the cell to 4.2V and gives the BMS enough headroom to handle transmit spikes without tripping.
Bar indicator showing one fewer bar than expected after fitting the BLN-19
New Li-ion cells ship at roughly 3.6–3.7V storage voltage, not a full charge. The Airbus radio maps voltage thresholds to bar segments, so a cell at storage voltage reads one bar lower than a fully charged cell at 4.2V. This is a voltage-threshold display issue, not a capacity defect. Run one full charge cycle through the dock and the bar indicator will reflect the correct charge state.
