About this replacement

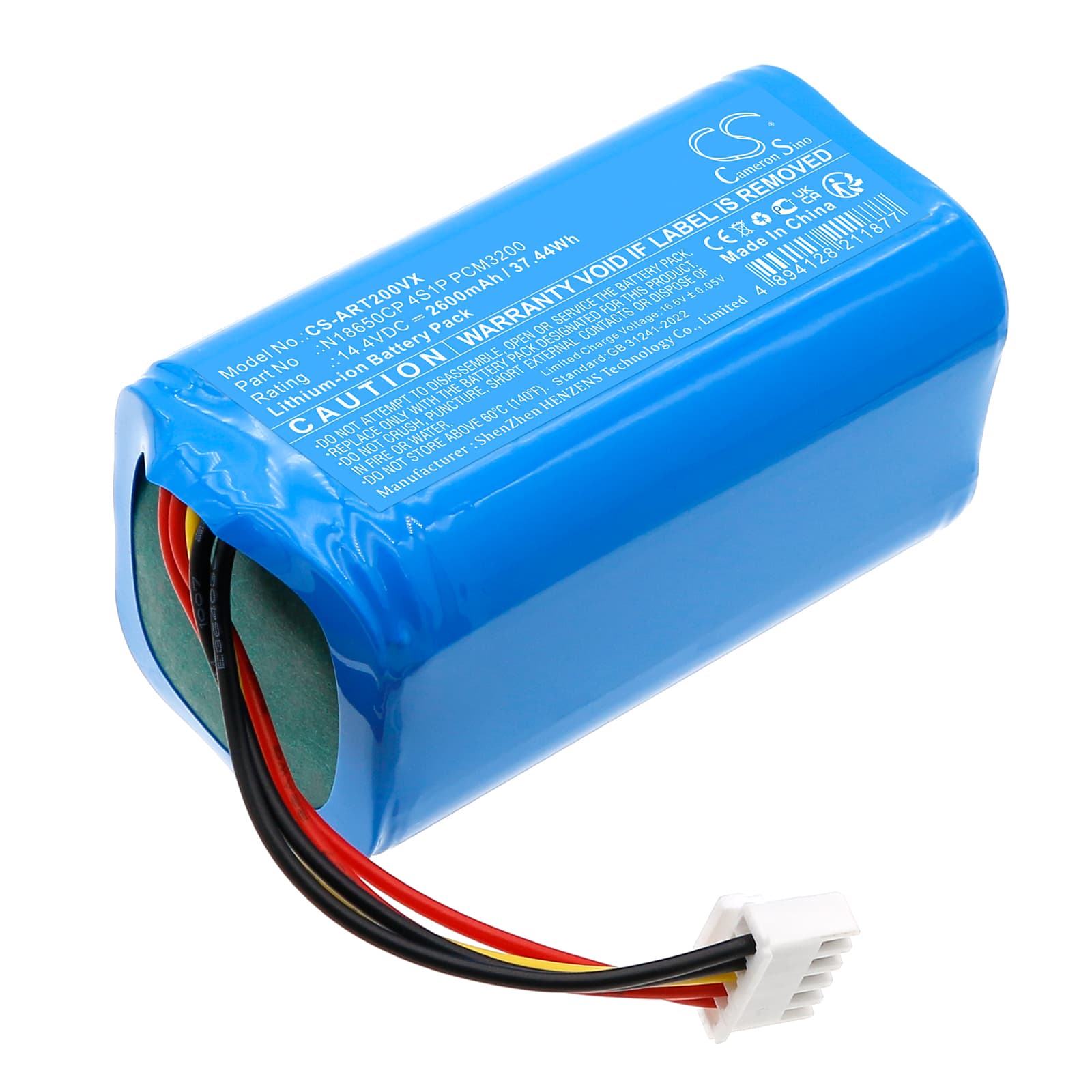

Airrobo T20+ — 14.4V Li-ion Replacement Battery (N18650CP 4S1P PCM3200)
This is a 14.4V 2600mAh (37.44Wh) lithium-ion battery for the Airrobo T20+ robotic vacuum. It replaces the original pack when capacity has faded and the robot is cutting cleaning cycles short or returning to dock prematurely. The OEM part number N18650CP 4S1P PCM3200 matches the T20+ battery bay and BMS communication spec.
- T20+ compatibility: The T20+ runs a 4S lithium cell arrangement at 14.4V nominal. This pack matches that cell configuration, connector pinout, and the BMS handshake the T20+ charging dock expects. Fit another voltage or cell count and the dock may refuse to charge entirely.
- Bench tested on actual hardware: We cycled this pack through repeated cleaning loads and verified the BMS holds charge correctly, delivers stable voltage under motor draw, and does not trip false overcurrent faults during normal operation.
- Dock charging habit for the T20+: Remove the T20+ from the dock once the battery reaches full charge. Robotic vacuums left on the dock indefinitely receive a trickle charge that stresses lithium cells and accelerates capacity fade — charge only when depleted, then remove.
Suction dropping before the T20+ battery indicator shows low
A degraded or partially discharged lithium pack sags in voltage under motor load even when the state-of-charge indicator still reads mid-range. The T20+ motor draws peak current on thicker carpet or when debris causes partial blockage, pulling cell voltage below the threshold the motor needs for full suction. The battery indicator reads remaining charge at rest, not under load — so the drop happens before the low-battery warning triggers. Clean the filter and check for blockages first; if suction still drops early, the pack voltage under load is the cause.
T20+ motor cutting out mid-cycle then recovering after a few seconds
This is a BMS overcurrent trip, not a mechanical fault. When the filter is clogged or the brush roll is jammed, the motor works harder to maintain suction, drawing more current than the BMS allows. The BMS cuts the circuit to protect the cells, then resets after a brief cooldown — which is why the robot pauses and restarts. Clean the filter and clear any hair wrapped around the brush roll, then reset the T20+ and resume; sustained overcurrent trips on a clean robot point to a worn pack that can no longer deliver rated current without tripping the BMS.
