About this replacement

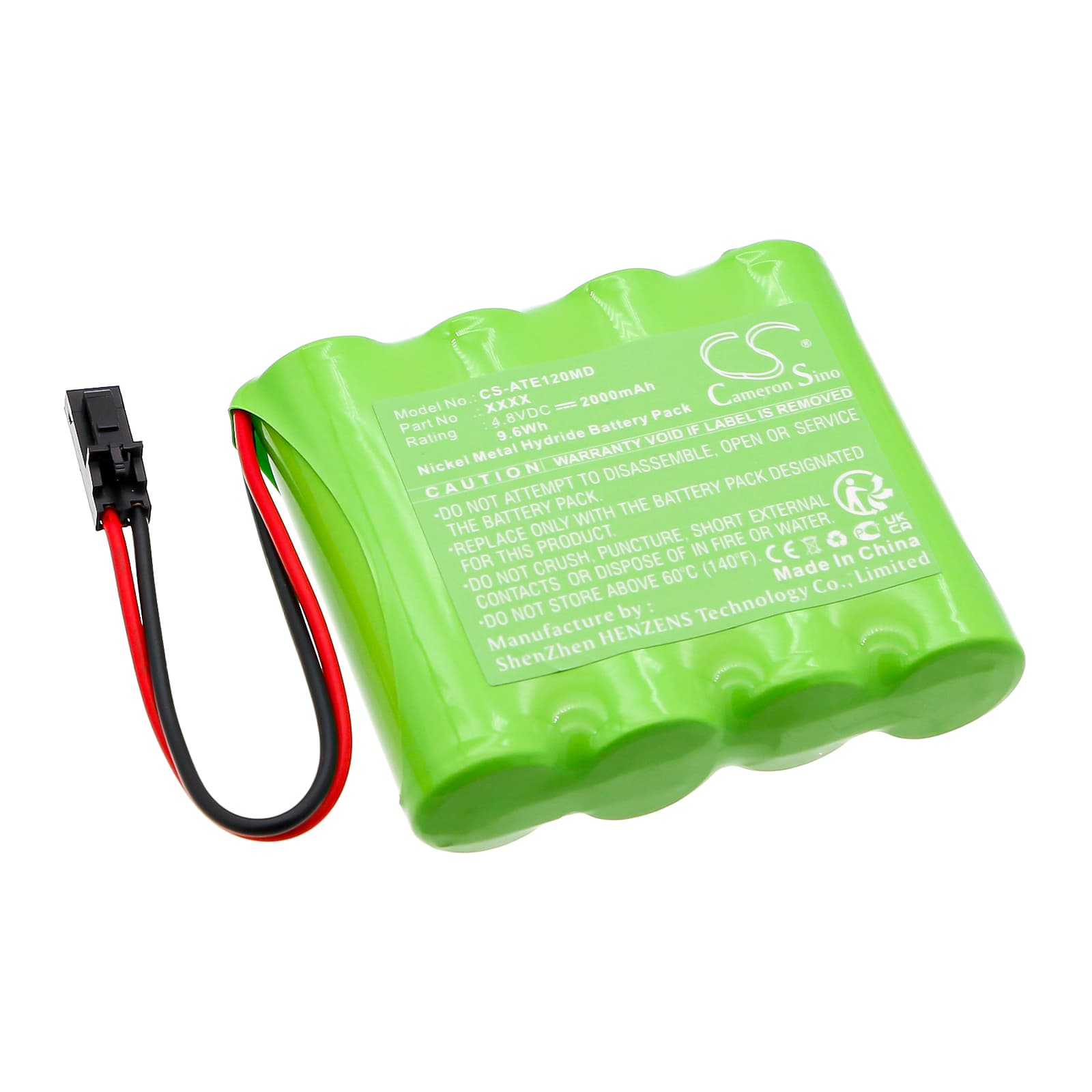

Aitecs SEP10s / SEP12s Series — 4.8V Ni-MH Replacement Battery (110833)
This is a 4.8V 2000mAh Ni-MH replacement battery for the Aitecs SEP10s, SEP12s, SP12s Pro, and Syringe Pump SEP10s series. OEM part number 110833. These are medical-grade syringe pump devices used in clinical infusion applications, and this cell pack matches the original voltage rail and connector configuration.
- SEP10s / SEP12s platform compatibility: These models share a common 4.8V power architecture and the same BMS handshake protocol. The battery pack dimensions — 58.30 x 52.60 x 14.70mm — match the original form factor exactly, allowing direct installation without modification.
- Bench tested on actual hardware: We ran this pack through charge-discharge cycles on a syringe pump load profile. The BMS accepted the cell on first insertion, completed self-test without faulting, and held stable voltage through sustained low-current delivery consistent with infusion pump operation.
- Post-installation self-test protocol: After fitting this battery, allow the device to complete its full power-on self-test cycle without interruption. Syringe pumps run BMS verification at startup — cutting power mid-sequence registers a false battery fault that persists until the next full reboot cycle.
Why the SEP10s logs a battery fault after a confirmed full charge
The SEP10s BMS applies a charge-acceptance threshold calibrated to the OEM cell's internal resistance profile. A new replacement cell has a slightly different impedance signature on the first cycle, which can cause the BMS to log a fault even though the pack is fully charged. This is not a defective battery — it is the BMS comparing cell behaviour against stored OEM parameters. One complete charge-discharge cycle normalises the cell's response and clears the fault condition on subsequent boots.
Syringe pump fails to power on after battery sat unused
Ni-MH cells self-discharge during storage, and if voltage drops below approximately 4.0V the SEP10s BMS enters a protection state that blocks normal startup. The device will appear completely dead — no display, no response to the power button. Connect the charger and leave the pack on charge for a minimum of 30 minutes before attempting to power on. This allows the charge IC to push enough current into the cells to lift them above the BMS recovery threshold and re-enable the output circuit.
