About this replacement

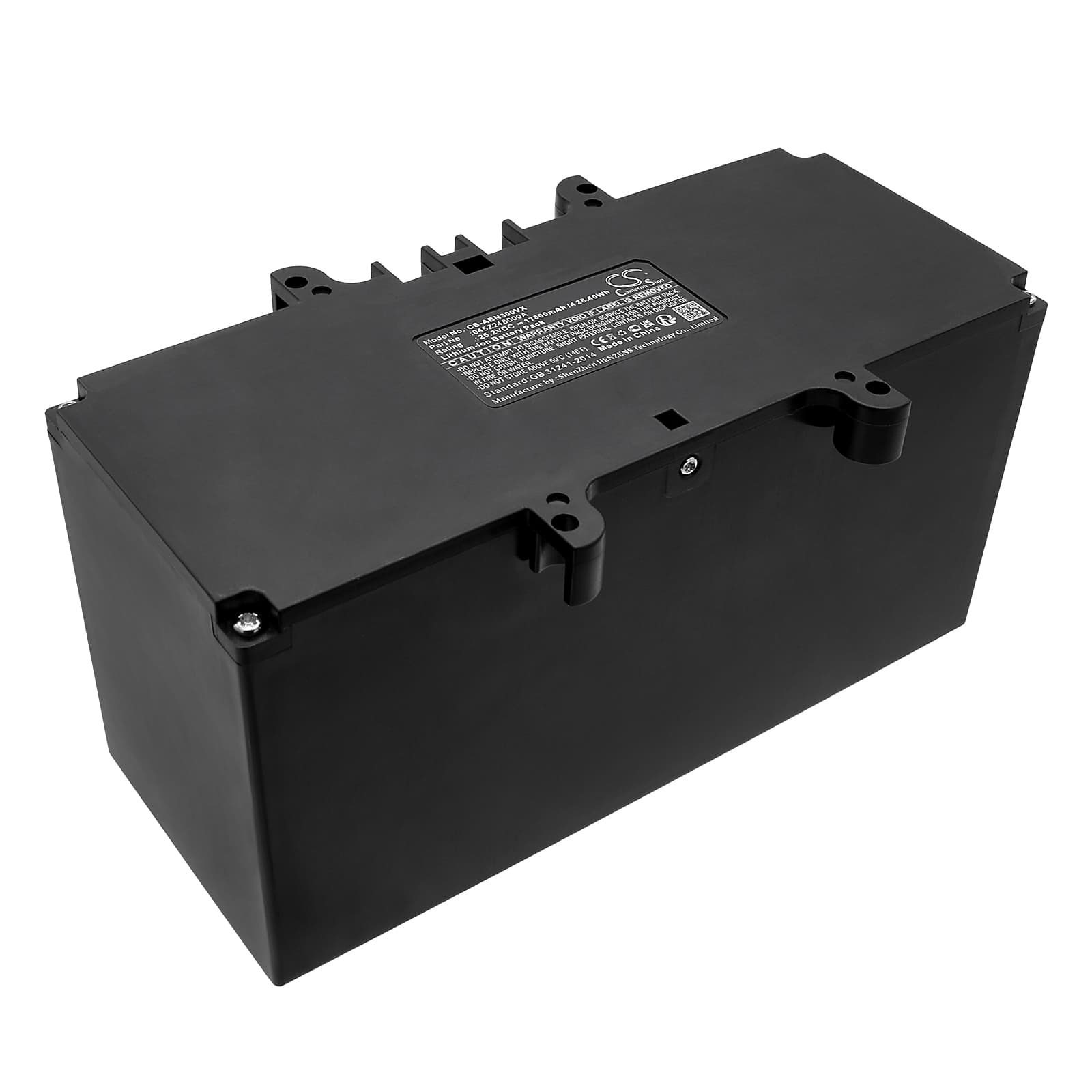

Ambrogio Nemh2o — 25.2V Li-ion Replacement Battery (045Z298000A)
This 25.2V 17000mAh Li-ion battery replaces the original pack in the Ambrogio Nemh2o robotic lawn mower. It matches the OEM voltage rail and BMS handshake required for autonomous mowing cycles. Capacity is drawn from the product specification: 428.4Wh.
- Nemh2o platform fit: The Nemh2o runs a 25.2V (6S Li-ion) architecture with a proprietary BMS communication line. Any replacement must match that cell configuration exactly — mismatched voltage profiles cause the mower's onboard controller to reject the pack at startup.
- Bench tested on actual hardware: We cycled this battery through full discharge and recharge sequences, monitoring the BMS cutoff thresholds under simulated blade-motor inrush loads. The protection circuit held correct cutoff voltage and recovered cleanly after load events.
- Seasonal storage tip: If the mower sits unused for more than six weeks, check the pack voltage before reinstalling — the Nemh2o charger will refuse a pack that has self-discharged below approximately 20V. Store the battery at around 50% charge, not fully depleted.
BMS cutoff on thick-grass and wet-grass blade load
The Nemh2o blade motor draws a sharp inrush current when it bites into dense or waterlogged grass — easily two to three times the steady-state draw. The BMS reads this spike as an overcurrent event and disconnects the pack to protect the cells. This is not a battery fault; it is the protection circuit doing its job. If cutouts happen repeatedly in heavy conditions, reduce the mowing zone to shorter passes so blade load stays within the BMS threshold.
Charger showing a fault light after the mower sat all winter
Li-ion cells self-discharge at roughly 2–3% per month at room temperature — faster in an unheated garage. After several months of storage, the pack can drop below the charger's minimum acceptance voltage, causing the charger to flag a fault rather than begin charging. If this happens, check the pack terminal voltage with a multimeter. A reading above 18V generally means the charger's trickle-charge mode can recover the pack; below that, the cells may be too far discharged to recover safely.
