About this replacement

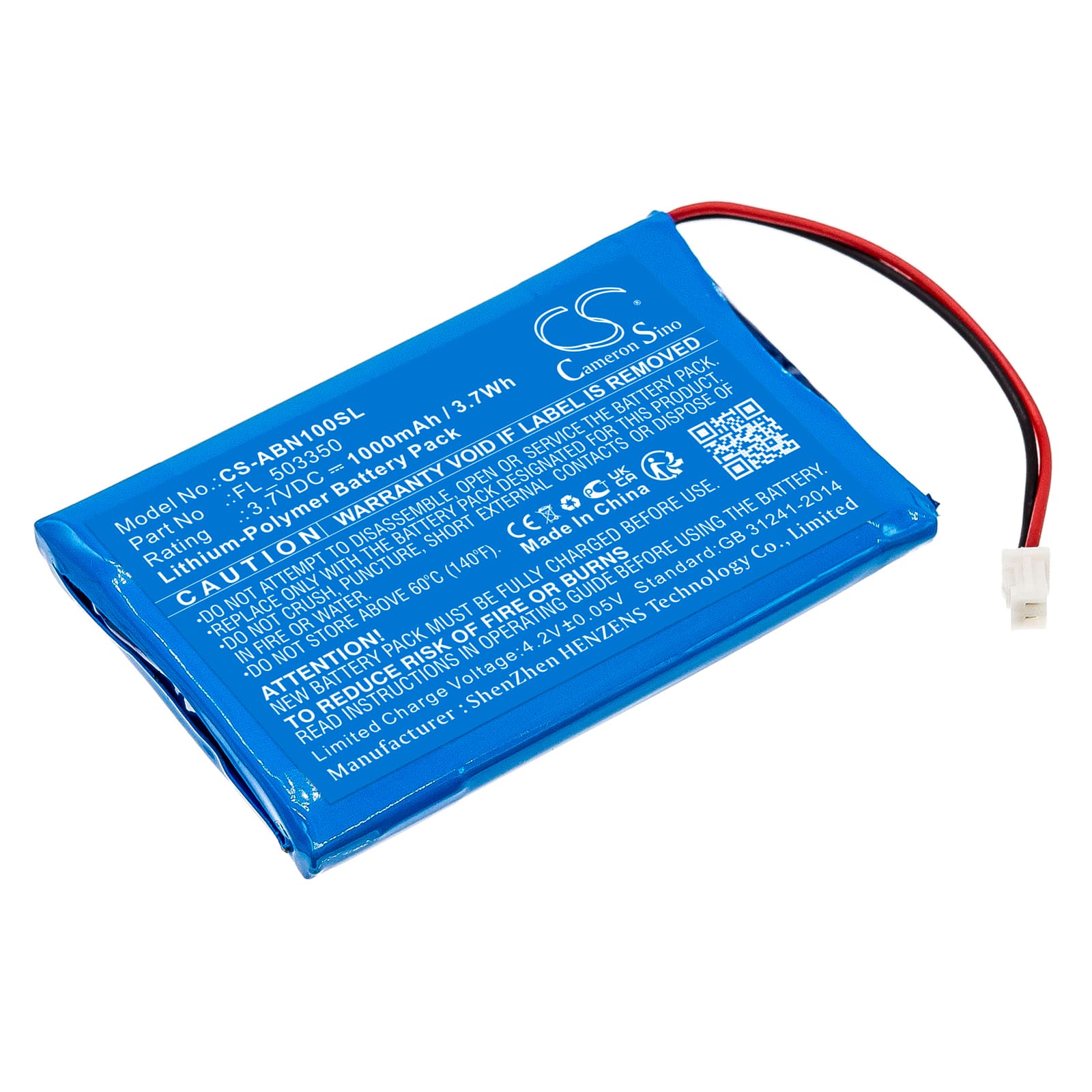

Anbernic RG Nano — 3.7V Li-Polymer Replacement Battery (FL_503350)
This is a 3.7V, 1000mAh Li-Polymer cell for the Anbernic RG Nano handheld game console. It fits the RG Nano directly, using OEM part number FL_503350. Install it when the original cell no longer holds a useful charge or swells inside the shell.
- RG Nano fit: The RG Nano uses a single-cell Li-Polymer pack at 3.7V nominal. The FL_503350 cell matches the 52.00 × 34.10 × 5.40mm footprint and the two-wire connector the console's charge IC expects. No BMS handshake is required — the RG Nano manages charge directly through its onboard controller.
- Bench tested on actual hardware: We cycled this cell through the RG Nano's charge circuit and confirmed the IC accepted a full charge to 4.2V without fault. Discharge behaviour under emulation load matched expected voltage curves for a 1000mAh LiPo cell.
- First-cycle fuel gauge calibration: After installing, run one complete play session to automatic low-battery cutoff before recharging. The RG Nano's fuel gauge sets its empty reference point against the first full discharge — skipping this step causes the indicator to read inaccurate from the start.
RG Nano fuel gauge jumping or freezing after a cell swap
The RG Nano tracks charge state by measuring voltage and comparing it against a stored discharge curve from the previous cell. A new cell has a slightly different internal resistance profile, so the gauge IC loses its reference and starts reporting erratic percentages. This is not a fault with the replacement cell. Running two to three full discharge-and-charge cycles resets the curve the IC uses, and the indicator stabilises. By cycle three, the gauge should track consistently from 100% down to cutoff.
RG Nano shutting off unexpectedly while the battery indicator still shows charge
This happens when the cell's resting voltage reads normal but sags sharply under the load of active emulation. The RG Nano's protection circuit reads the sag voltage, not the resting voltage, and triggers a low-voltage cutoff before the gauge catches up. On a new cell, this is most common in the first few cycles before the cell reaches its rated capacity. If the console cuts off below 3.5V under load, run three to five conditioning cycles — full discharge to cutoff, full charge to 4.2V — and the sag will reduce as the cell breaks in.
