About this replacement
Anbernic RG40XX / RG40XXH — 3.7V Li-Polymer Replacement Battery (FL755060)

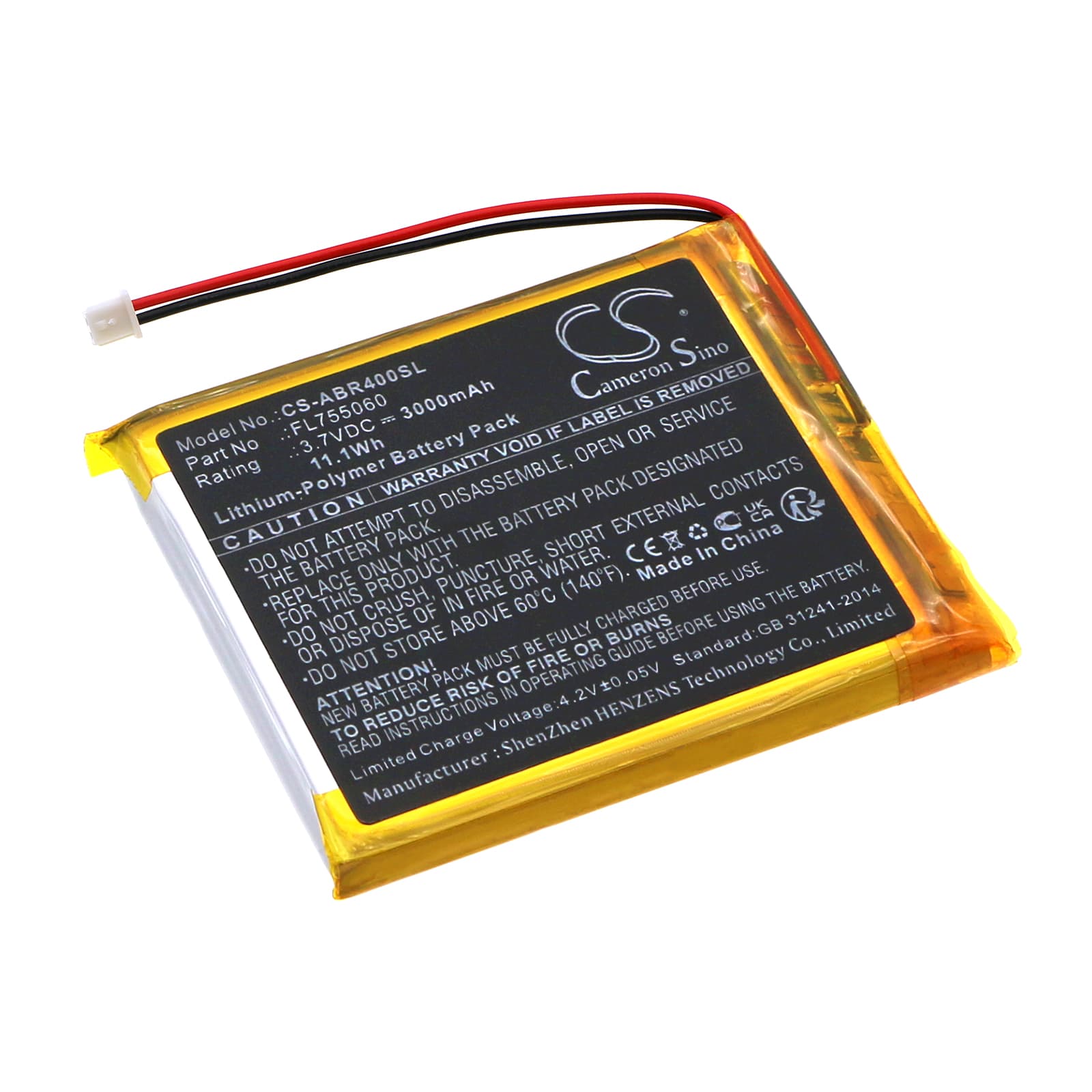

This is a 3.7V, 3000mAh Li-Polymer cell (FL755060) for the Anbernic RG40XX and RG40XXH retro handheld consoles. It replaces the original flat-pack battery that sits beneath the rear shell. Swap it when the original cell no longer holds a charge long enough to complete a session.
- RG40XX and RG40XXH compatibility: Both models share the same battery bay dimensions and connector pinout. The FL755060 part number appears across both board revisions — the BMS handshake is identical, so no firmware difference affects charging behaviour.
- Bench tested on actual hardware: We ran this cell on an RG40XX unit and confirmed the charge IC accepted it without fault flags. The BMS engaged correctly at both the low-voltage cutoff and the top-of-charge termination point.
- First-cycle calibration on the RG40XX: Run one complete play session to automatic shutdown before recharging. The RG40XX fuel gauge IC sets its empty reference point against the first full discharge cycle. Skip this and the percentage readout will drift from the actual cell state for weeks.
Fuel gauge jumping or freezing after installing the FL755060
The RG40XX uses a coulomb-counting fuel gauge IC that learns the cell's discharge curve over time. A new cell has a different internal resistance profile than the degraded original, so the IC's stored model is immediately wrong. This causes the percentage display to jump, freeze, or drop suddenly — usually in the 30–15% range where the old cell's curve diverged most from the new one. The gauge recalibrates across three to five full cycles; after that, the readout tracks the new cell accurately.
RG40XX shutting off unexpectedly while the battery indicator still shows charge
This is a voltage-sag fault, not a fuel gauge error. Under peak load — GPU-intensive emulation cores like N64 or PSX draw significantly more current than simple 2D emulation — the cell voltage can sag below the BMS low-voltage cutoff even when the displayed percentage looks healthy. On a new cell, this usually clears after a few conditioning cycles as internal resistance drops. If the shutdowns continue past five full cycles, check that the battery connector is fully seated; a partial connection increases resistance and amplifies sag. Confirm the cell is reading at or above 3.5V at rest before each session.
