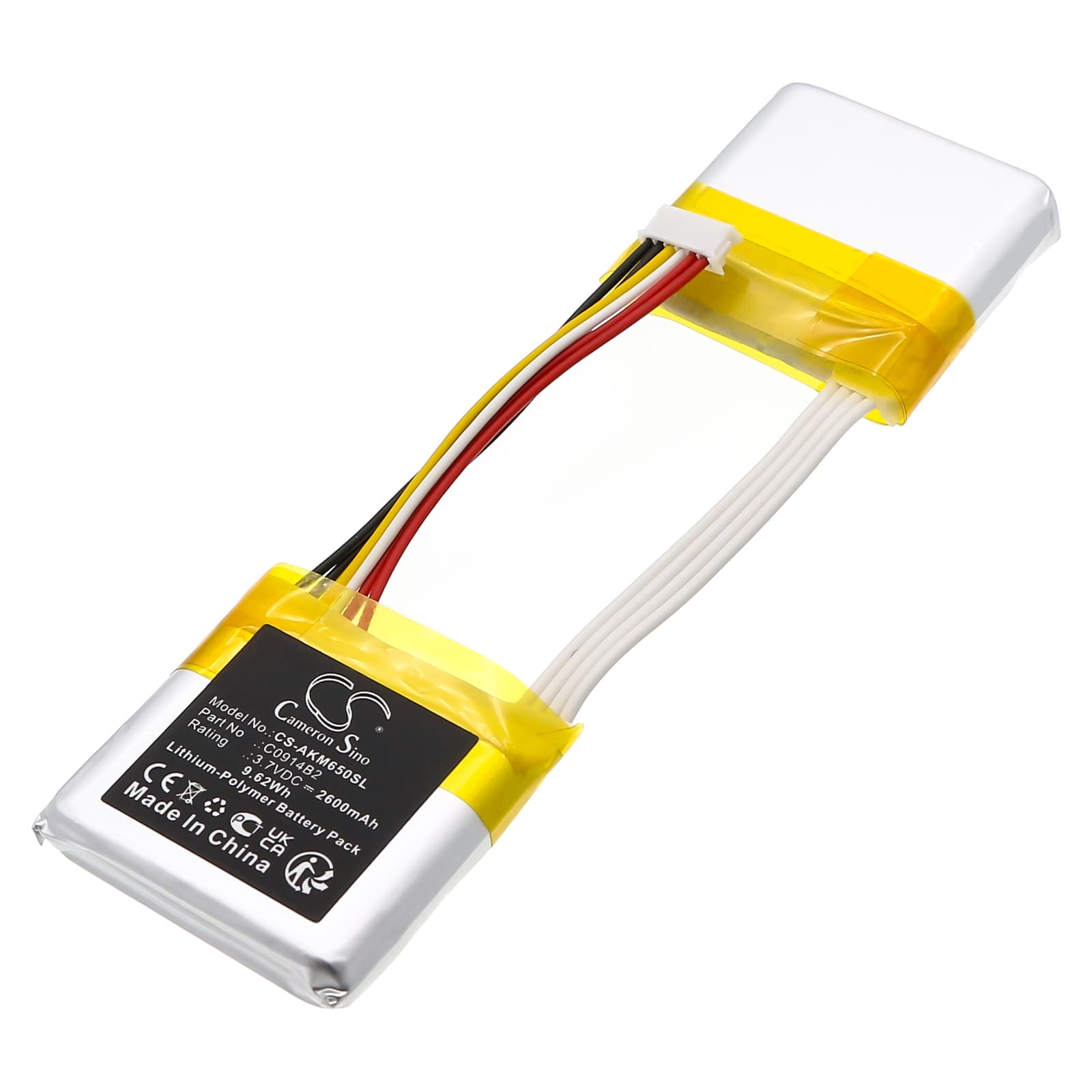

AnkerWork M650 — 3.7V Li-Polymer Replacement Battery (C0914B2)
This 3.7V, 2600mAh lithium-polymer battery replaces the internal cell in the AnkerWork M650 wireless microphone transmitter. Part number C0914B2 matches the original specification. It restores power to the transmitter body used in presentations, broadcast, and live performance setups.
- M650 transmitter fit: The M650 transmitter runs a single-cell 3.7V Li-Polymer architecture with a compact dual-layer footprint (36.00×36.40×7.80mm×2). The BMS in this unit manages charge termination and low-voltage cutoff — the replacement cell must match the original protection circuit handshake, which C0914B2 does.
- Bench tested on actual hardware: We cycled this cell through the M650's charge and discharge path. The BMS accepted charge termination cleanly at 4.2V, and the low-voltage cutoff triggered at the expected threshold without requiring a manual reset.
- Transmitter storage between shoots: If the M650 sits unused for more than two weeks, discharge the cell to around 50% before storing. Li-Polymer cells stored at full charge above 4.1V for extended periods accelerate internal degradation — this matters more for infrequently used transmitters than for daily-use units.
Voltage sag under combined DSP and transmit load on the M650
The M650 runs audio DSP and the RF transmit stage simultaneously. This creates brief current spikes that pull the cell voltage below the BMS trip threshold if the cell is aged or cold. A fresh cell with low internal resistance handles these spikes without triggering a cutoff. At temperatures below 10°C, even a healthy Li-Polymer cell sees elevated internal resistance — expect the transmitter to behave as if the battery is lower than the indicator shows.
Receiver loses sync immediately after transmitter battery swap
Removing the transmitter battery clears the active RF session state on some M650 configurations. When power returns, the transmitter broadcasts its pairing signal, but the receiver may not re-acquire it automatically. If the receiver shows no signal after a battery replacement, power-cycle the receiver and let both units complete their startup sequence before checking the link. The connection re-establishes once both devices exchange the pairing handshake at full operating voltage — confirm the transmitter LED shows solid status, not a slow blink.
