About this replacement

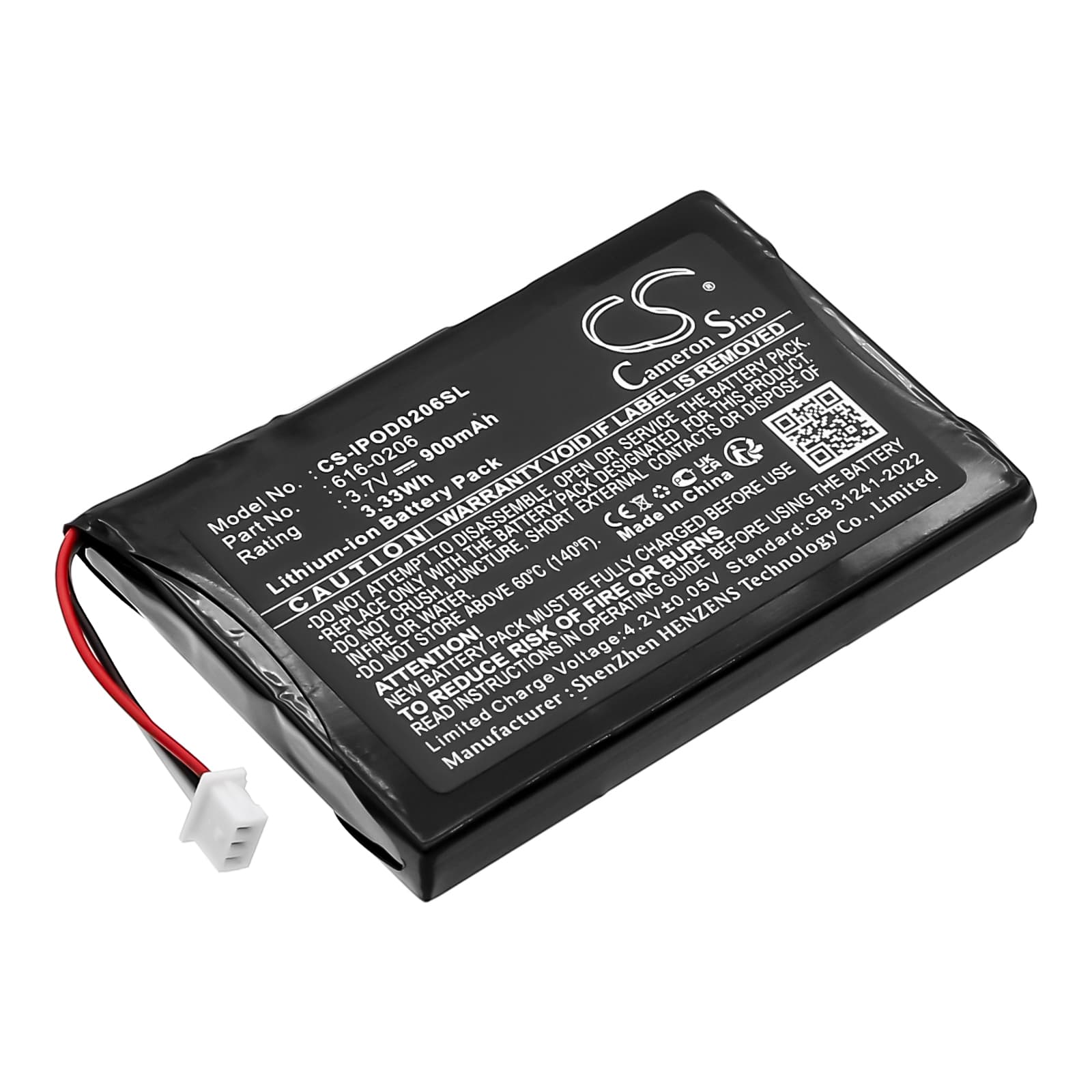

Apple iPod Photo — 3.7V Li-ion Replacement Battery (616-0206)
This is a 3.7V, 900mAh Li-ion replacement battery for the Apple iPod Photo. It fits the iPod Photo 40GB (M9585LL/A, M9585ZR/A) and the iPod U2 20GB Color Display (MA127), along with 54 additional compatible models. OEM part number 616-0206 confirms fitment.
- iPod Photo and U2 Color Display compatibility: These models share the same 3.7V single-cell architecture, physical footprint, and connector pinout. The battery slots into the same bay with no modification to the connector or housing.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on iPod Photo hardware. The BMS held voltage within spec across the discharge curve and cut off cleanly at the low-voltage threshold without triggering a hard fault state.
- Post-swap initialisation on iPod Photo: After installing this battery, charge the device fully before powering it on. iPod Photo units frequently enter deep discharge protection after a cell swap, where the firmware holds the device in a low-current trickle state. Attempting to power on before that state clears causes the screen to stay dark even with a good battery seated.
Battery percentage jumping on iPod Photo after cell swap
The iPod Photo uses a voltage-threshold method to estimate charge level — it reads cell voltage and maps it to a percentage. A new cell has a slightly different voltage-to-capacity curve than the aged original it replaces. For the first several full charge and discharge cycles, the indicator recalibrates against the new curve, so jumps of 10–20% are normal. Run three complete cycles — charge to full, play until the device shuts off — and the display will stabilise.
Playback cutting out before the battery indicator reaches empty
The audio amplifier in the iPod Photo draws more current than the backlight or UI tasks. Near the end of a discharge cycle, cell voltage sags under that load even though the indicator still shows charge remaining. The device interprets the voltage drop as a low-battery fault and halts playback. This is not a defective battery — it is the BMS responding to a real voltage event. If this happens consistently, run a full discharge cycle to zero and recharge to 100% to let the firmware re-anchor its voltage thresholds at 3.0V cutoff.
