About this replacement

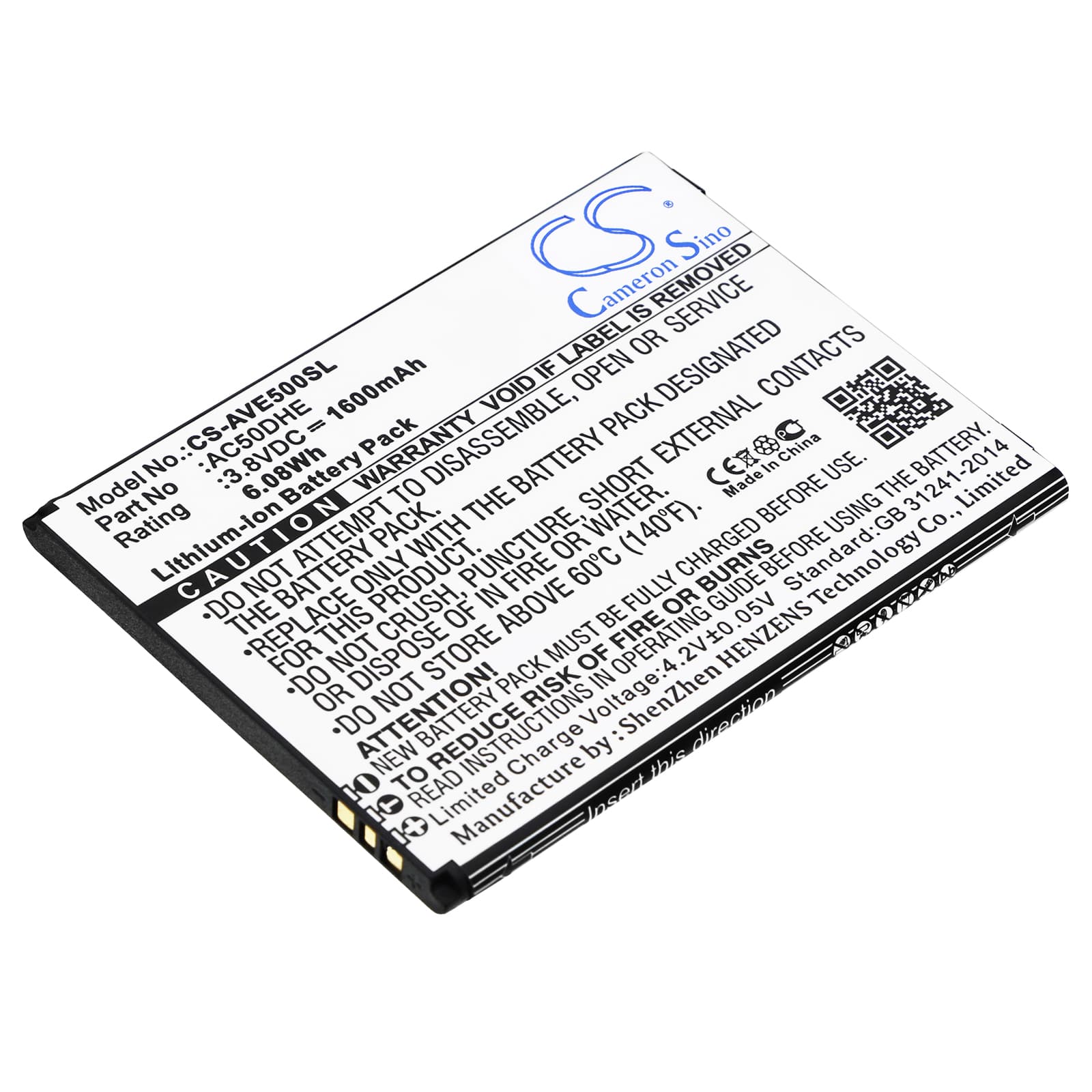

Archos Elements 50d Helium — 3.8V Li-ion Replacement Battery (AC50DHE)
This is a 3.8V, 1600mAh Li-ion cell for the Archos Elements 50d Helium and 50d Helium 4G/Dual SIM LTE variants. It replaces the OEM AC50DHE battery when the original cell can no longer hold adequate charge for normal daily use. Voltage and physical dimensions match the original: 72.20 × 55.10 × 4.50mm.
- 50d Helium series compatibility: The standard, Dual SIM, and 4G variants all run the same 3.8V battery rail with an identical footprint and connector pinout, so one cell covers the entire 50d Helium lineup without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the 50d Helium platform. The BMS accepted the charge handshake without fault codes, held voltage flat through mid-discharge, and tripped the low-voltage cutoff cleanly at the expected floor.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one full discharge-to-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before the system starts reporting accurate percentages.
Why the 50d Helium reports wrong battery percentage after a cell swap
The Archos 50d Helium uses a coulomb counter in the fuel gauge IC that tracks charge based on the old cell's learned discharge curve. When a new cell goes in, the stored curve no longer matches actual cell behaviour. The OS reads from that stale data, so the percentage shown on screen can be off by 10–20% in either direction. One complete discharge down to auto-shutoff, followed by a full uninterrupted charge to 100%, forces the IC to rebuild its reference curve against the new cell.
Sudden shutdown at 20–30% on the replacement cell
This happens when the cell voltage drops sharply under the combined load of the LTE modem and display — a voltage cliff the fuel gauge IC did not predict. The phone's power management circuit reads the sag as a critical low-voltage condition and cuts out, even though the displayed percentage still looks safe. It is common on the first few cycles with any new cell before the gauge recalibrates. After one or two full discharge-charge cycles, the IC learns the new cell's sag profile and the early shutdowns stop. If they continue past three full cycles, check that the battery connector is fully seated and that flex contact resistance is below 0.5Ω.
