About this replacement

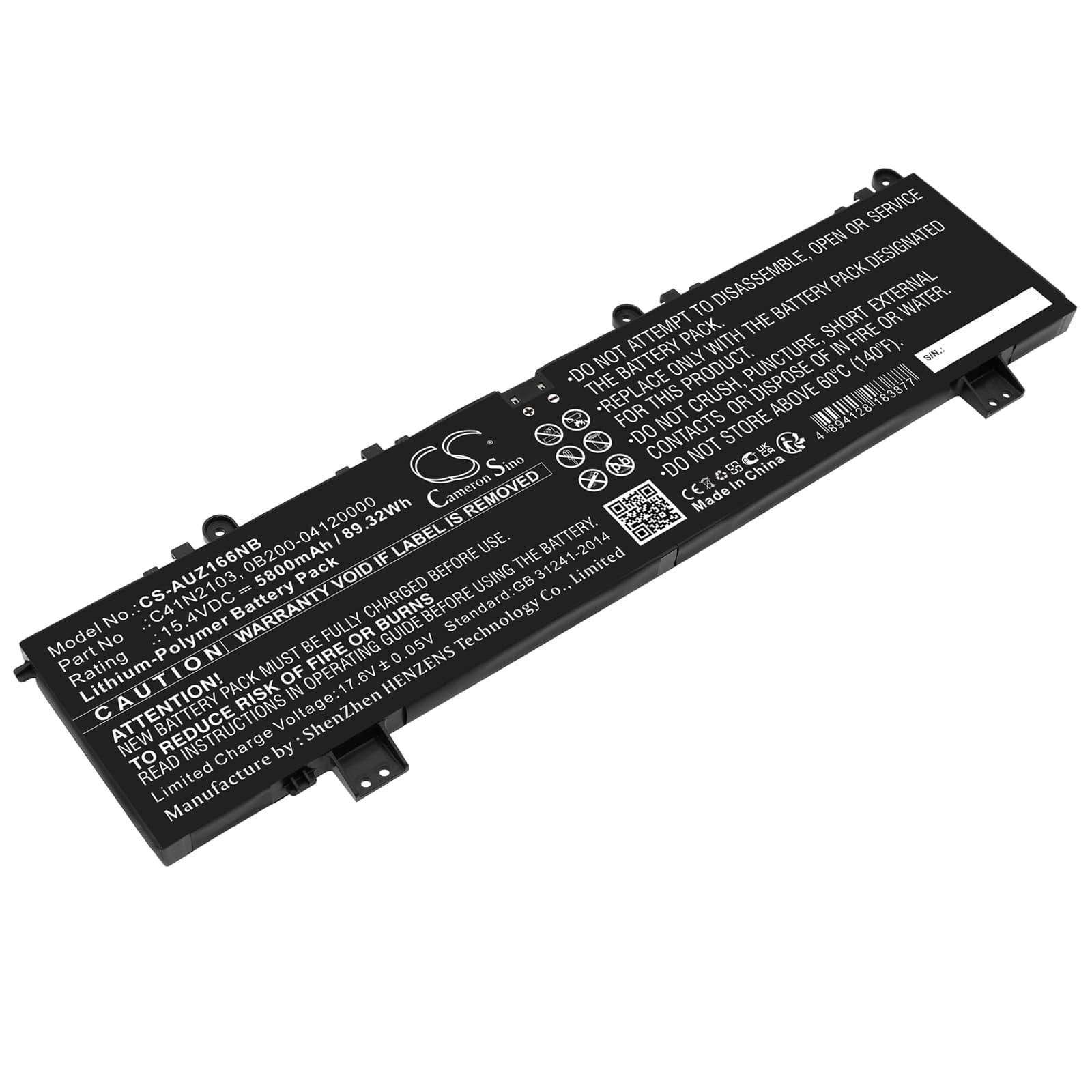

Asus ROG Zephyrus Duo 16 GX650RM-LS016W — 15.4V Li-Polymer Replacement Battery (C41N2103)
This is a 15.4V 5800mAh (89.32Wh) Li-Polymer replacement battery for the Asus ROG Zephyrus Duo 16 GX650 series. It fits the GX650RM, GX650RS, GX650RW, GX650RX and over 58 additional GX650 variants sharing the C41N2103 / 0B200-04120000 part number. The 4-cell pack matches the original voltage and capacity spec exactly.
- GX650 series compatibility: All listed GX650 variants run the same 15.4V four-cell Li-Polymer architecture with an identical connector pinout and BMS handshake protocol. That shared platform means one cell services the full GX650 lineup without firmware conflicts or connector adapters.
- Bench tested on actual hardware: We ran this cell on a GX650 chassis under combined CPU, GPU, and ScreenPad Plus display load. The BMS handled the high-draw spikes without triggering an overcurrent cutoff, and charge termination landed cleanly at 89.32Wh on calibrated test equipment.
- Post-install calibration on the GX650: After fitting this cell, run one full discharge until the laptop hibernates on low battery, then charge uninterrupted to 100% without using the machine. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
BIOS reporting poor battery health immediately after fitting a new cell
The GX650 BIOS reads health data from EEPROM registers that store cycle count and capacity history from the previous cell. A fresh cell carries no matching EEPROM data, so the firmware flags it as degraded before it has run a single cycle. This is a firmware interpretation issue, not a fault with the new battery. Running the full discharge-to-hibernate then uninterrupted charge cycle described above forces the BIOS to overwrite the stale EEPROM values with current cell data. After one or two full cycles, the health reading corrects itself in both the BIOS and MyASUS.
Laptop shutting down at 20–30% shown on the fuel gauge after battery swap
The fuel gauge IC on the GX650 board calibrates its discharge curve against the specific cell it has learned. Drop in a new cell and the IC still maps voltage to percentage using the old cell's curve — which does not match the new chemistry profile. When the new cell hits its real voltage cliff under GPU and dual-display load, the system shuts down even though Windows still shows 20–30% remaining. The fix is calibration: discharge the machine to forced hibernate at least twice on the new cell, charging fully between each cycle. After two full cycles, the fuel gauge IC has enough data to map the new cell's actual voltage curve, and the false shutdowns stop.
