About this replacement

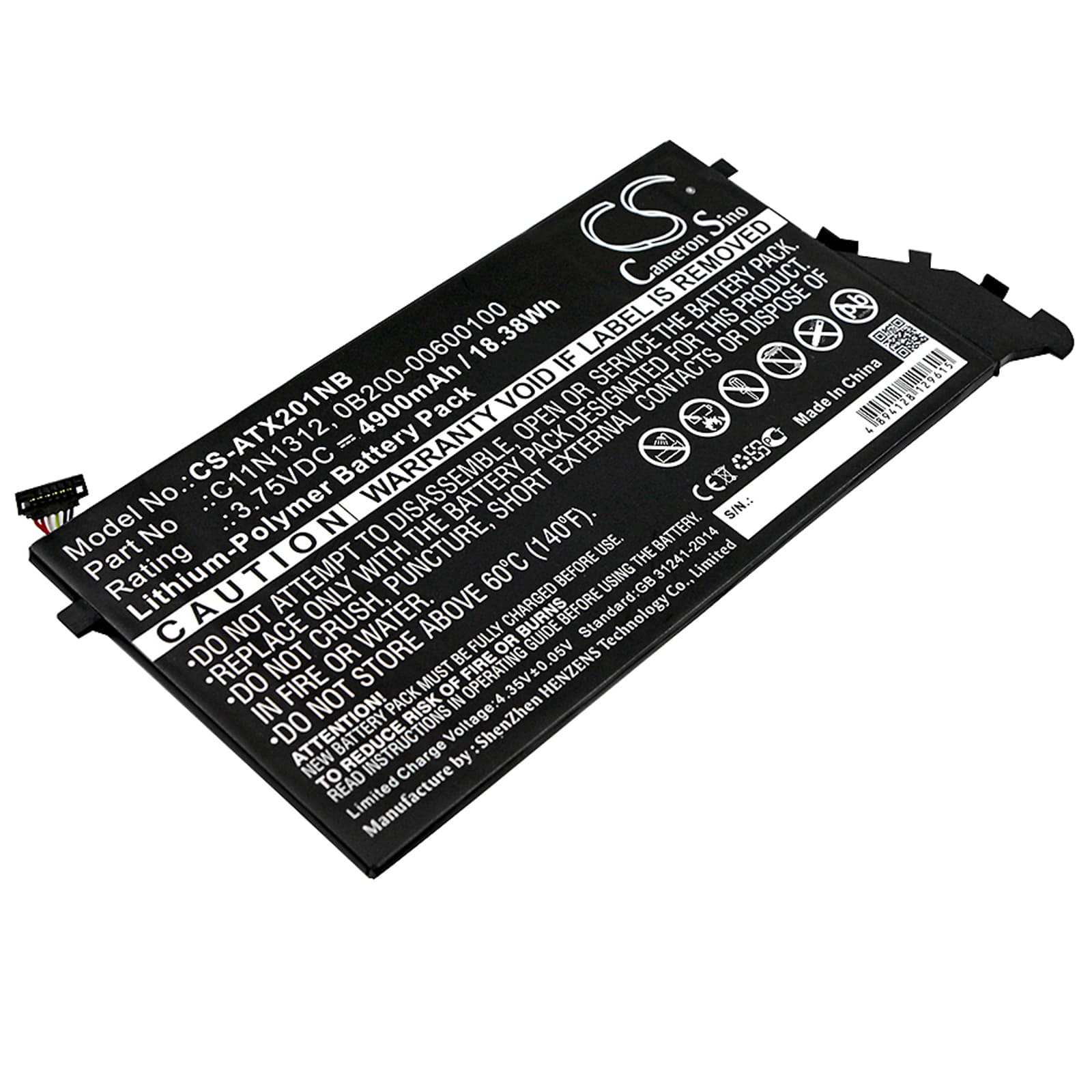

Asus Transformer Book TX201LA — 3.75V Li-Polymer Replacement Battery (C11N1312)
This is a 3.75V, 4900mAh (18.38Wh) Li-Polymer battery for the Asus Transformer Book TX201LA. It fits the detachable tablet portion of this 2-in-1 hybrid device. OEM part numbers C11N1312 and 0B200-00600100 both apply to this cell.
- TX201LA tablet module fit: The TX201LA separates into a tablet and keyboard dock. This battery powers the tablet half only. The 3.75V rail, thin 3.26mm cell profile, and connector pinout match the tablet module's charging circuit directly.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the TX201LA tablet module. The BMS handshake completed without error, and charge current tapered correctly as the cell approached capacity.
- First-cycle calibration on TX201LA: After fitting, let the tablet discharge fully to hibernate cutoff, then charge uninterrupted to 100%. This forces the fuel gauge IC to re-map against the new cell and clears the inaccurate health warning the system logs after any cell swap.
Why the TX201LA BIOS flags a new battery as poor health immediately after swap
The TX201LA reads EEPROM data embedded in the old battery cell to track health history. When a new cell goes in, the BIOS has no prior cycle data and defaults to a poor-health or unknown status. This is a data gap, not a fault with the replacement cell. Running one full discharge-to-hibernate then an uninterrupted charge to 100% gives the fuel gauge IC enough data to update the health register and clear that warning.
TX201LA tablet showing wrong Wh rating in system information after battery replacement
Windows reads the Wh figure stored in the battery's EEPROM, not from live measurement. The value in EEPROM may differ from the actual chemistry rating of a replacement cell. This is a reporting artefact — the cell is still delivering its rated 18.38Wh capacity. After two or three full calibration cycles, some firmware revisions update the displayed figure to match actual measured output. If the figure persists, verify the reading against actual charge behavior rather than treating the displayed number as accurate.
