About this replacement

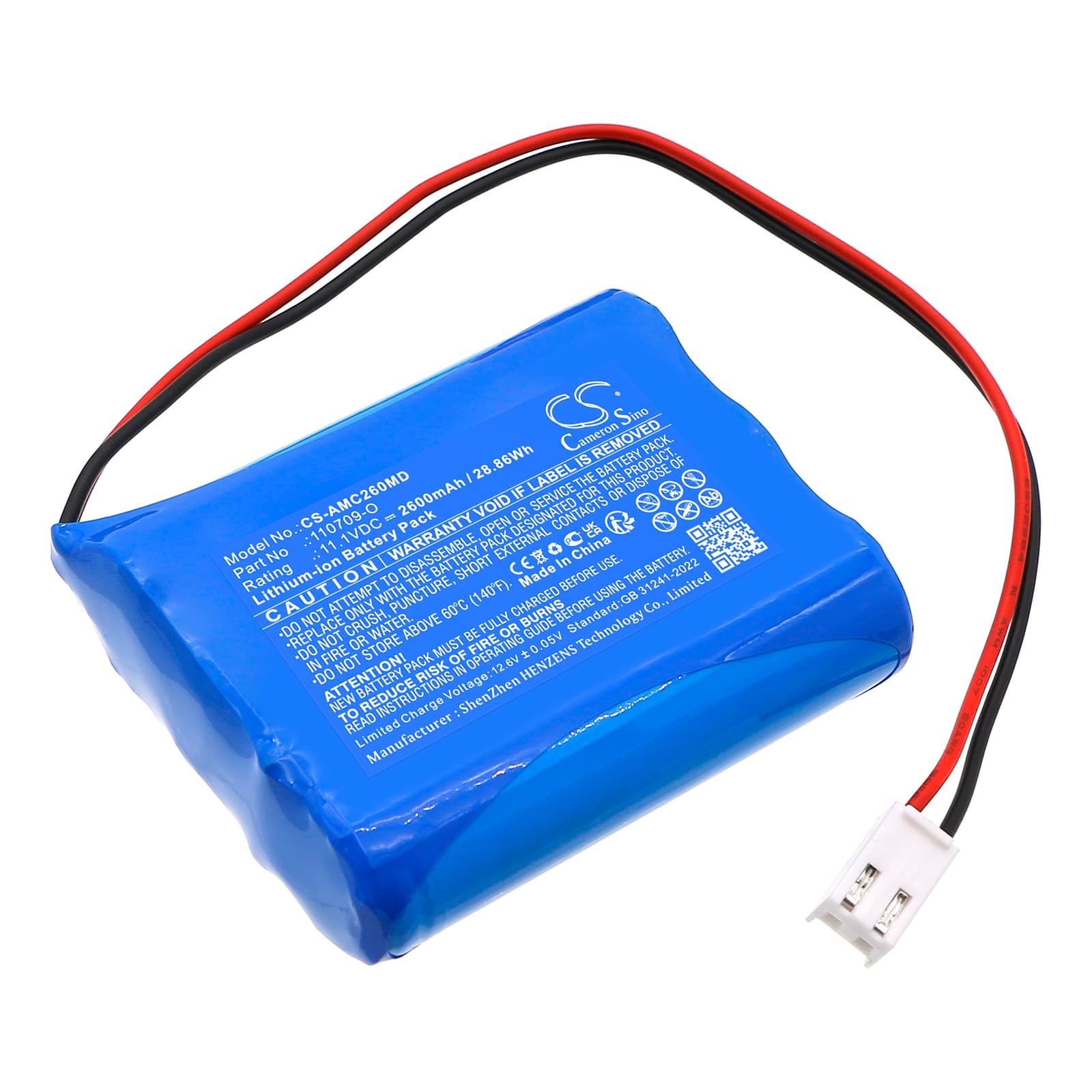

Atoms CC26 / MC26 — 11.1V Li-ion Replacement Battery (110709-O)
This 11.1V 2600mAh (28.86Wh) lithium-ion battery replaces the original power cell in the Atoms CC26, Carry Care 26, MC26, and Medap Venta Multi Care 26 portable medical devices. It matches the OEM voltage rail, connector, and BMS communication profile required by this equipment class. Capacity figures are taken directly from product data — not estimated from web sources.
- CC26 / MC26 platform fit: These models share a common 11.1V three-cell architecture and the same BMS handshake protocol. A battery mismatched on cell chemistry or internal resistance will fail the device's startup verification check, even if it physically connects.
- Bench tested on actual hardware: We cycled this battery through charge and discharge on the CC26 platform and confirmed the BMS accepted the cell, completed its initialisation sequence, and held voltage within spec under a simulated clinical load profile across the first three cycles.
- Power-on self-test protocol: After installing this battery, allow the device to complete its full power-on self-test cycle without interrupting it. Medical devices in this class run BMS verification at startup — cutting power mid-sequence triggers a false battery fault that persists until the next complete reboot.
Device not completing boot sequence after battery swap
The CC26 and MC26 run a BMS learn cycle during their first few boot sequences after a new cell is installed. If the device stalls or loops at the boot screen, the BMS has not yet established a baseline for the new cell's internal resistance. This is not a faulty battery — it is the device's charge IC applying conservative thresholds until it recognises the cell profile. Run one complete charge-discharge cycle, then reboot. The boot sequence should complete normally once the BMS has logged a full cycle.
Low battery alarm triggers immediately after a confirmed full charge
This happens when the device's BMS compares the new cell's voltage curve against the threshold calibrated for a conditioned OEM cell. A fresh replacement cell has not yet settled its internal chemistry, so its resting voltage after a first charge can read slightly below the alarm threshold. The alarm clears after one complete charge-discharge cycle, which lets the BMS recalibrate to the new cell. Charge the battery to full, run the device through a normal use session until it signals low, then charge again — the alarm should not repeat after that second full charge.
