About this replacement

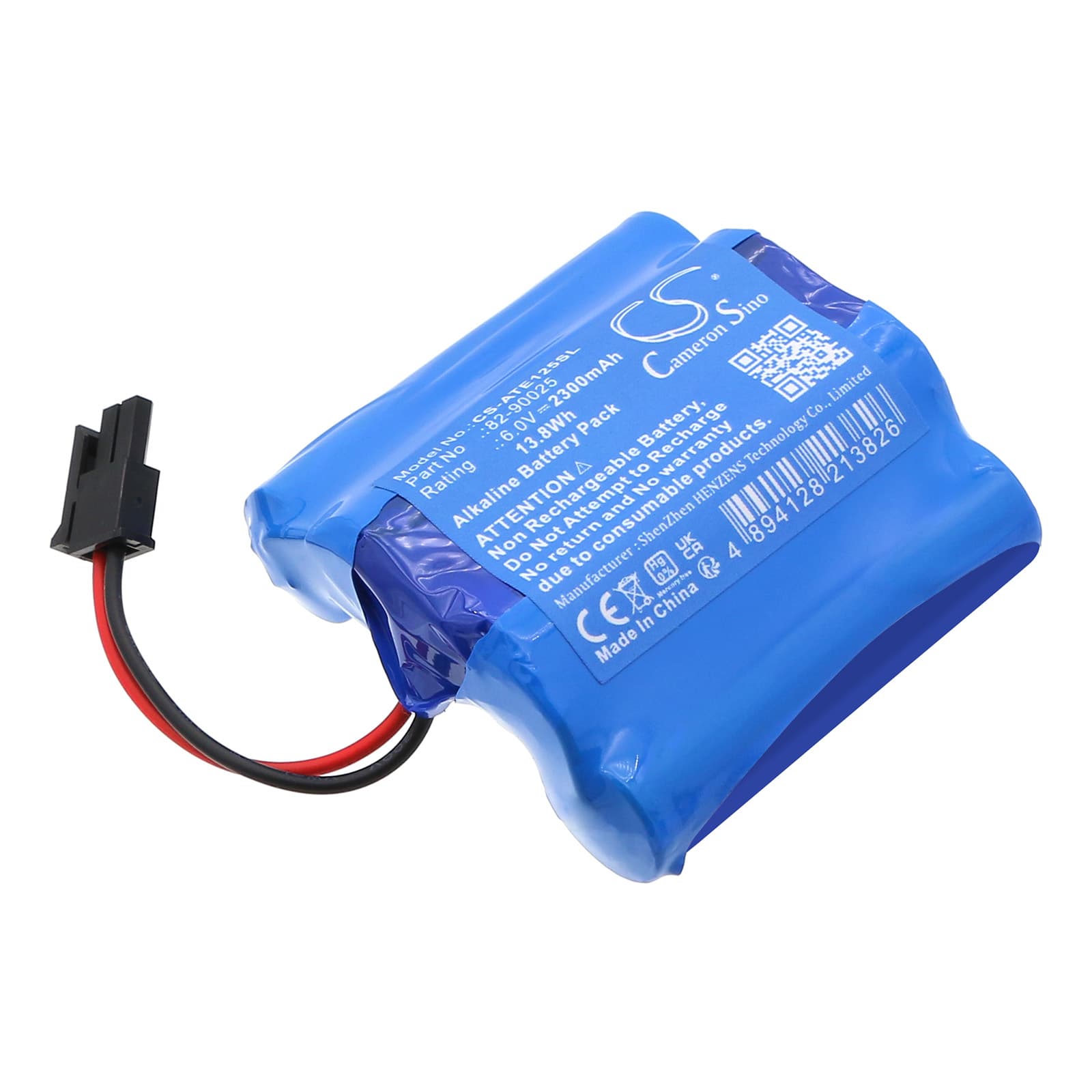

ATS Electro-Lube 125cc / 60cc Ultimate Luber — 6V Alkaline Replacement Battery (82-90025)
This is a 6V alkaline replacement battery rated at 2300mAh (13.8Wh) for the ATS Electro-Lube Ultimate Luber automated lubrication system. It fits both the 125cc and 60cc Ultimate Luber models. Both units share the same voltage rail, connector format, and cell footprint, so one SKU covers both.
- 125cc and 60cc compatibility: Both Ultimate Luber models run off the same 6V alkaline cell stack. The dispensing motor and timing circuit draw from a common voltage rail, so the battery form factor and discharge profile match across the range without modification.
- Bench tested on actual hardware: We ran this cell against the Ultimate Luber's motor-start cycle, where the dispensing actuator pulls a brief current spike at each lubrication event. The battery held voltage across repeated dispense cycles without triggering a dropout or early cutoff.
- Field swap procedure: After fitting a new cell, trigger one manual dispense cycle before returning the unit to its auto-schedule. The timing circuit re-references the voltage baseline on the first actuation — skipping this step can cause the unit to flag a low-battery condition before the schedule even starts.
Why the Ultimate Luber skips a scheduled dispense cycle after a battery change
The Ultimate Luber's interval timer uses the battery voltage to anchor its internal reference at startup. A fresh alkaline cell sits above the nominal 6V the circuit was last calibrated against, which can cause the timing logic to misread its position in the dispense cycle. This shows up as one skipped event immediately after installation — not a fault, but a recalibration artefact. One manual trigger resets the reference and the automatic schedule resumes normally from the next interval.
Unit activates but lubricant output drops noticeably toward end of battery life
Alkaline cells under motor load show a gradual voltage taper rather than a flat discharge curve. As the cell drops below approximately 5.4V, the dispensing motor doesn't receive enough voltage to complete a full actuator stroke, so each cycle pushes less lubricant than specified. The unit will still activate and appear functional — the output deficit is only visible if you measure dispense volume directly. Replace the cell when measured output falls short of the rated dispense amount, typically before the low-battery indicator triggers.
