About this replacement

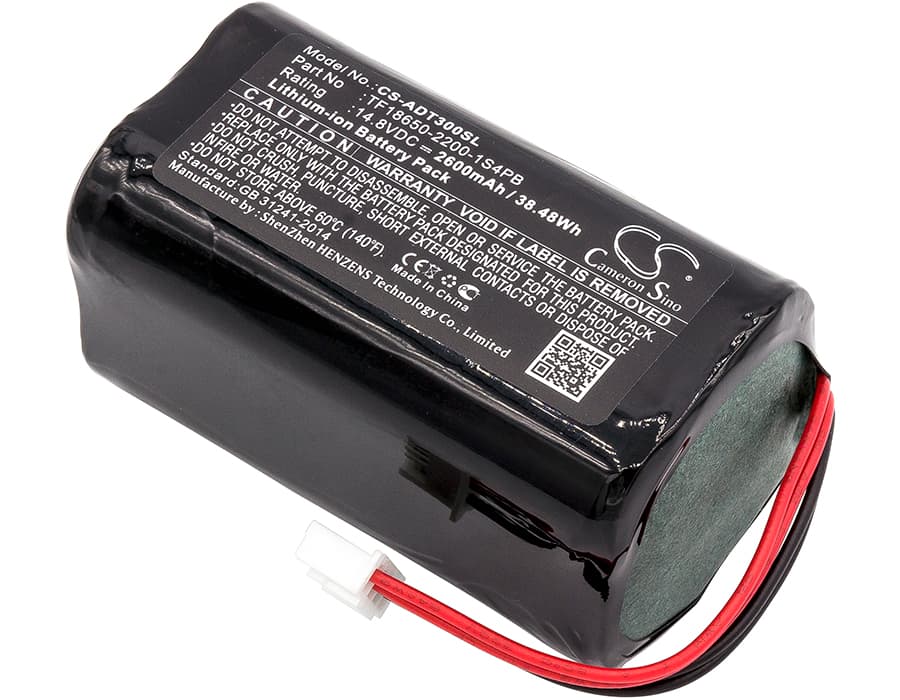

Audio Pro Addon T3 / T9 / T10 — 14.8V Li-ion Replacement Battery (TF18650-2200-1S4PB)
This 14.8V 2600mAh Li-ion pack replaces the original battery in the Audio Pro Addon T3, T9, and T10 portable speakers. It uses the same 1S4P 18650 cell configuration as the factory pack and matches the OEM part number TF18650-2200-1S4PB. Swap it when the original no longer holds charge or when playback cuts out before the indicator reaches empty.
- Addon T3 / T9 / T10 shared battery platform: These three speakers share the same internal battery bay dimensions and the same 14.8V nominal voltage rail. The BMS connector pinout and charge termination voltage are identical across all three, so one pack covers the full range.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the Addon T3. The BMS held charge termination at 16.8V and cut off discharge at 12V, matching factory BMS behaviour. Audio output stayed stable across the full discharge window with no mid-cycle shutdowns.
- Fuel gauge recalibration after install: After fitting a new pack, let the speaker discharge to the automatic power-off point before charging back to full. The Addon T3 fuel gauge calibrates on the first full discharge cycle — skipping this step causes the indicator to read incorrectly from day one.
Why the Addon T3 shuts down at high volume before the battery indicator hits empty
The Addon T3 amplifier draws a sharp current spike at high volume. When the battery pack has aged, internal cell resistance rises, and that spike causes a brief voltage sag below the BMS low-voltage cutoff threshold. The BMS interprets that sag as an empty pack and shuts the speaker down, even when the fuel gauge still shows charge remaining. A fresh pack with lower internal resistance handles the same current draw without tripping the cutoff.
Audio Pro Addon T3 showing full charge but distorting or cutting mid-session
Constant top-off charging — plugging in before the pack drops below 50% — compresses the active capacity range the fuel gauge tracks. Over time, cells that cycle only in the upper voltage band lose the ability to deliver current under load even when resting voltage looks healthy. The symptom is audio clipping or sudden shutdowns while the indicator still reads two or three bars. Run the speaker down to auto power-off at least once a month, then charge fully, to reset the gauge and keep the cells cycling across their full range. If the issue persists with a degraded original pack, replace to restore clean amplifier headroom.
