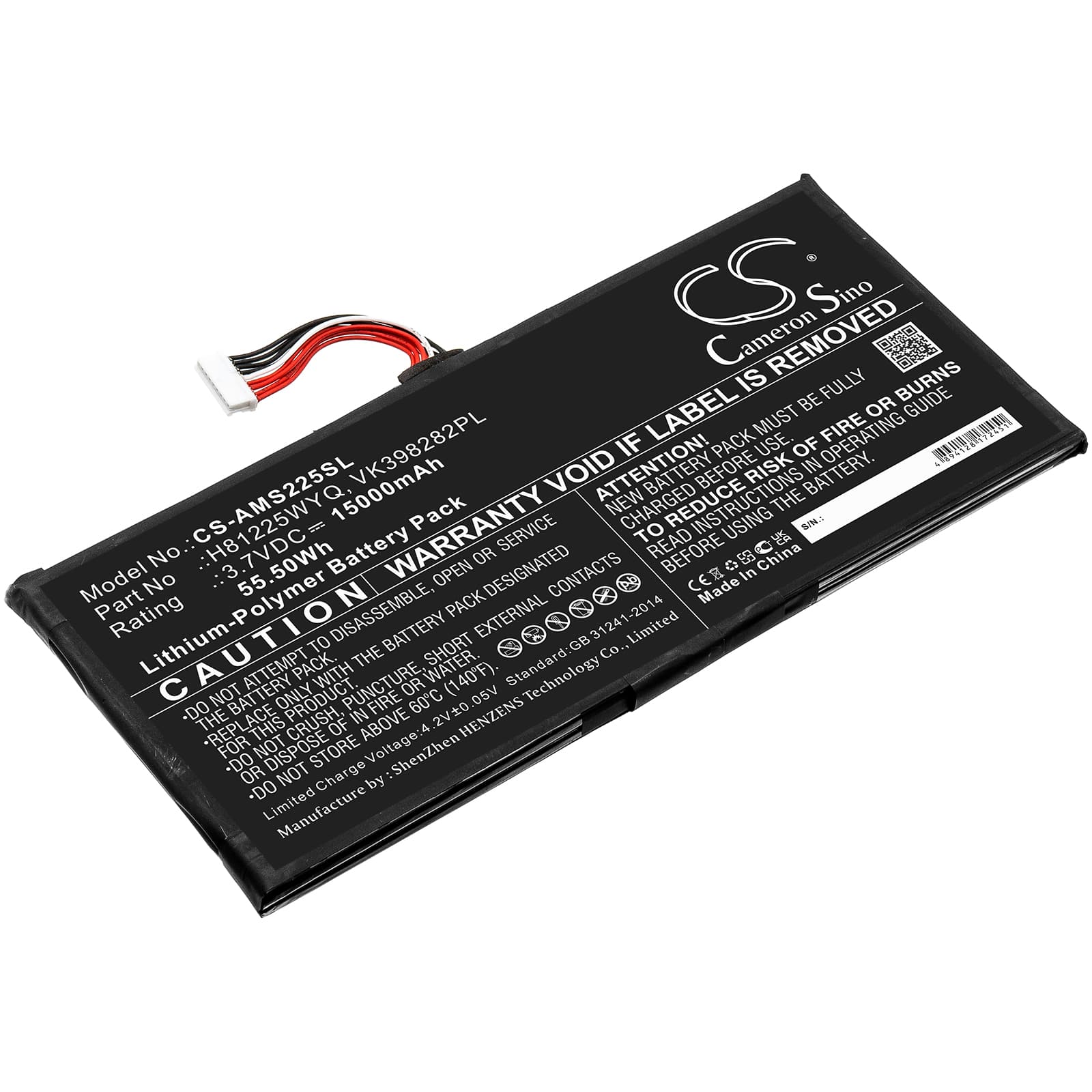

Autel MaxiSys Elite — 3.7V Li-Polymer Replacement Battery (H81225WYQ)
This is a 3.7V 15000mAh Li-Polymer battery for the Autel MaxiSys Elite professional automotive diagnostic scanner. It replaces OEM part H81225WYQ (also listed as VK398282PL) and restores main operating power to the unit. Fits the MaxiSys Elite only — confirm your part number before ordering.
- MaxiSys Elite platform fit: The Elite uses a single large-format Li-Polymer cell to power both the display and the onboard diagnostic processor from one voltage rail. The BMS on this unit monitors cell voltage and temperature independently, so any replacement must match the original cell's internal resistance profile to avoid false low-battery trips mid-session.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the MaxiSys Elite platform. The BMS accepted the cell without fault codes, the charge circuit completed normally, and the boot threshold cleared without issue.
- Vehicle profile export before swap: The MaxiSys Elite stores saved vehicle profiles and session data in memory tied to the main battery. Pull every vehicle profile to the USB or cloud backup before you remove the old cell — that data does not survive a full power loss.
Why the MaxiSys Elite won't boot after a battery swap
The MaxiSys Elite has a minimum boot voltage threshold built into the BMS — if the replacement cell ships below that threshold, the device will not power on at all. This is not a faulty battery or a faulty scanner. A fresh Li-Polymer cell often sits at 3.5V or lower after storage. Connect the unit to the Autel AC adapter and charge for at least 30 minutes before attempting to power on.
WiFi dropping mid-diagnostic session at partial battery charge
The MaxiSys Elite's wireless radio draws a short burst of current whenever it polls vehicle data over WiFi. At cell voltages below roughly 3.6V, that burst causes a momentary voltage sag that the BMS reads as an undervoltage event. The radio drops, and the active session may freeze or lose the vehicle connection. If this happens repeatedly before the battery indicator shows critical, the old cell has degraded beyond useful capacity — replace it and keep the replacement charged above 20% during active use.
