About this replacement

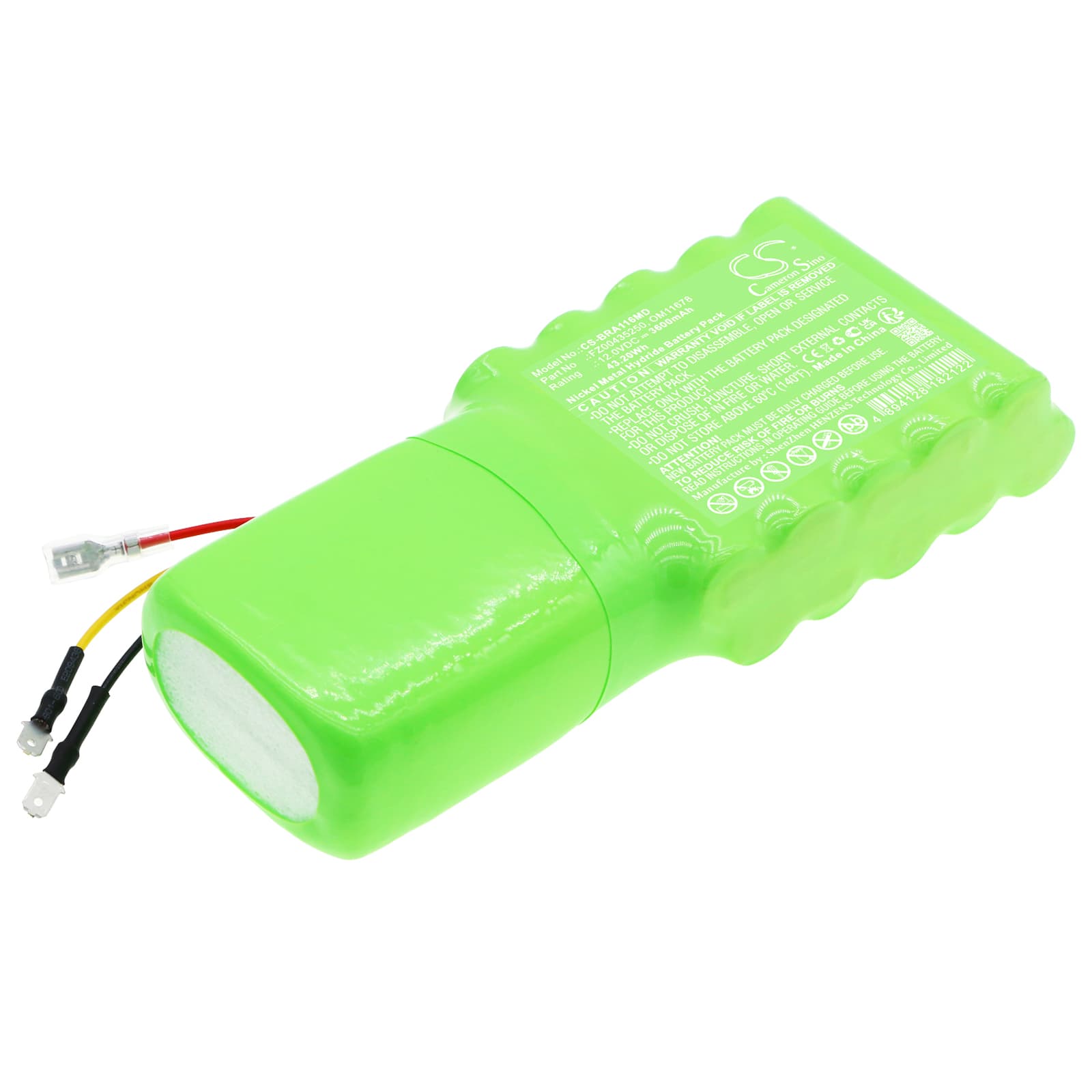

B.Braun Outlook 100ES / 200ES / 300ES / 400ES Safety Infusion — 12V Ni-MH Replacement Battery (FZ00435250)
This 12V 3600mAh Ni-MH battery replaces the internal power cell in B.Braun Outlook 100ES, 200ES, 300ES, and 400ES Safety Infusion pumps. It covers eight additional Outlook ES variants using the same battery bay and connector. Capacity follows the original specification: 3600mAh / 43.2Wh.
- Outlook ES platform compatibility: All listed Outlook ES models share the same 12V battery bay, connector pinout, and BMS communication protocol. A single cell swap covers the full range without adapters or rewiring.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on Outlook ES hardware. The BMS accepted the cell, completed handshake verification, and flagged no chemistry mismatch — Ni-MH cell voltage curves matched what the charge IC expects.
- Post-installation self-test protocol: After fitting this battery, allow the pump to complete its full power-on self-test cycle without interruption. The Outlook ES runs BMS verification at startup — cutting power mid-sequence triggers a false battery fault that persists until the next full reboot.
Why the Outlook ES alarms low battery immediately after a confirmed full charge
The Outlook ES charge IC applies a conservative acceptance threshold tuned to aged OEM cells. A fresh Ni-MH cell has a slightly different internal resistance profile on cycle one, which the BMS can read as below the pass threshold. This is not a faulty cell. Run one complete charge-discharge cycle — the BMS recalibrates its internal reference after the first full cycle and the alarm clears on subsequent charges.
Pump will not power on after the replacement cell sat in storage
Ni-MH cells self-discharge in storage at roughly 1–3% per day. If the cell voltage has dropped below the Outlook ES BMS recovery threshold — typically around 10.5V for a 12V Ni-MH pack — the pump will not boot. Connect the pump to mains and leave it on charge for a full uninterrupted cycle before attempting to power on. Check that the charge indicator is advancing; if it is not, verify the mains connection before assuming cell failure.
