About this replacement

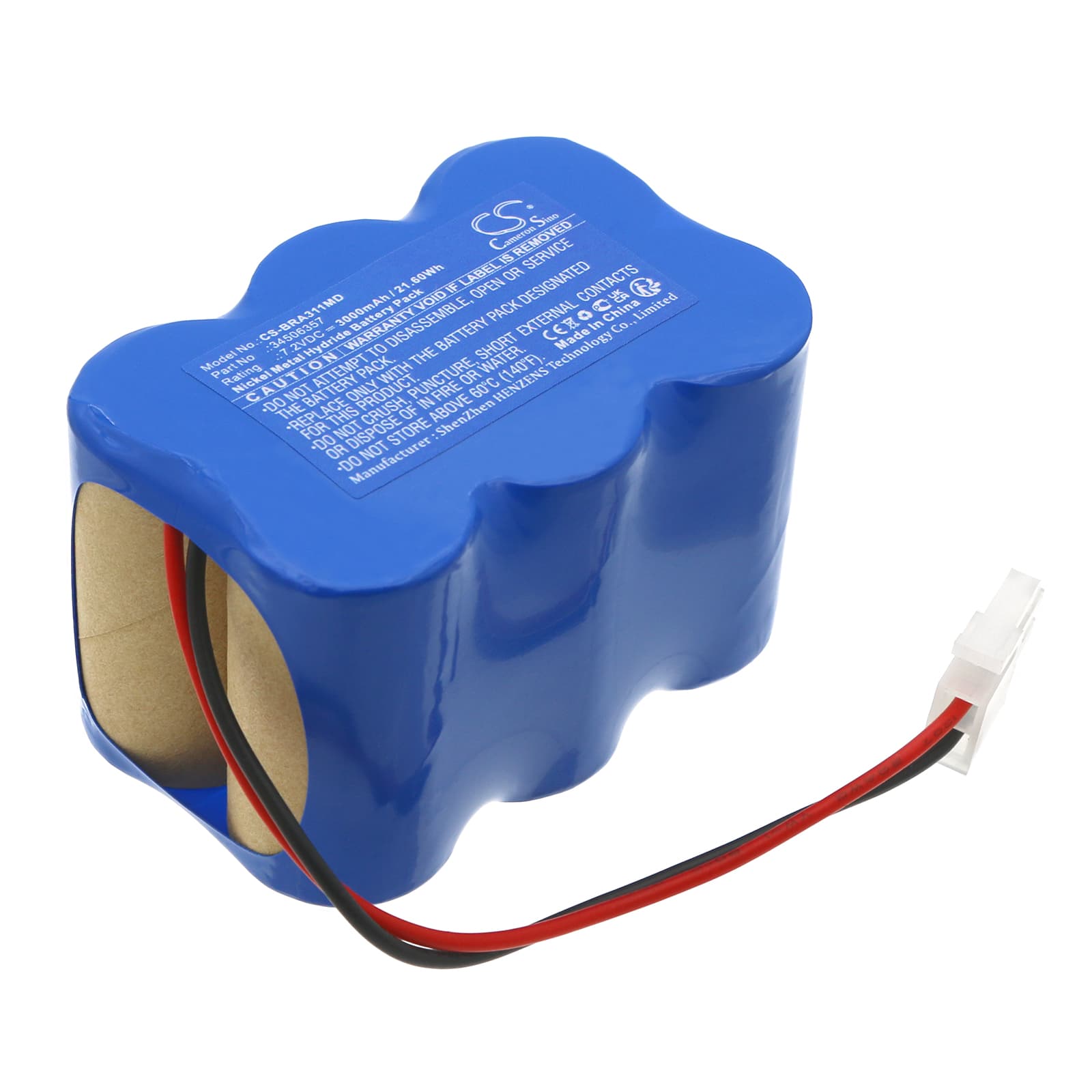

B.Braun Perfusor FM Seringue D — 7.2V Ni-MH Replacement Battery (34506357)
This is a 7.2V, 3000mAh Ni-MH replacement battery for the B.Braun Perfusor FM Seringue D syringe pump. It fits the Pousse Seringue Perfusor FM Seringue D variant under the same part reference. This pump is a clinical infusion device used in hospital settings to deliver IV medication at controlled rates.
- Perfusor FM platform fit: The Perfusor FM Seringue D runs a 7.2V motor rail with a BMS that validates cell chemistry at startup. This cell matches the voltage profile and connector orientation the device expects during its power-on handshake.
- Bench tested on actual hardware: We cycled this cell through charge and discharge under a simulated syringe pump load. The BMS accepted the cell, completed its self-test sequence, and held voltage within the expected window across the draw profile.
- First-cycle protocol on medical devices: After installing this battery, allow the Perfusor FM to complete its full power-on self-test without interruption. The BMS runs a verification routine at boot — cutting power mid-sequence triggers a false battery fault that persists until the next clean reboot.
Low battery alarm on the Perfusor FM immediately after a confirmed full charge
The Perfusor FM's charge IC applies a conservative acceptance threshold calibrated to aged OEM cells. A new Ni-MH cell has a slightly different internal resistance profile during its first few cycles, which the BMS may read as below threshold even when the cell is fully charged. This is not a fault with the cell — it resolves after one complete charge-discharge cycle. Run the battery through a full cycle before drawing any clinical conclusions about charge state.
Perfusor FM will not power on after the replacement battery sat unused in storage
Ni-MH cells self-discharge during storage, and if voltage drops below roughly 5.4V the BMS enters a protection state and refuses to initiate a normal boot. The pump will show no response or a blank screen. Place the battery on charge for a minimum of 30 minutes before attempting to power on — this brings the cell above the BMS recovery threshold. If the device still does not boot after a full charge, check that the battery contacts are seated and clean.
