About this replacement

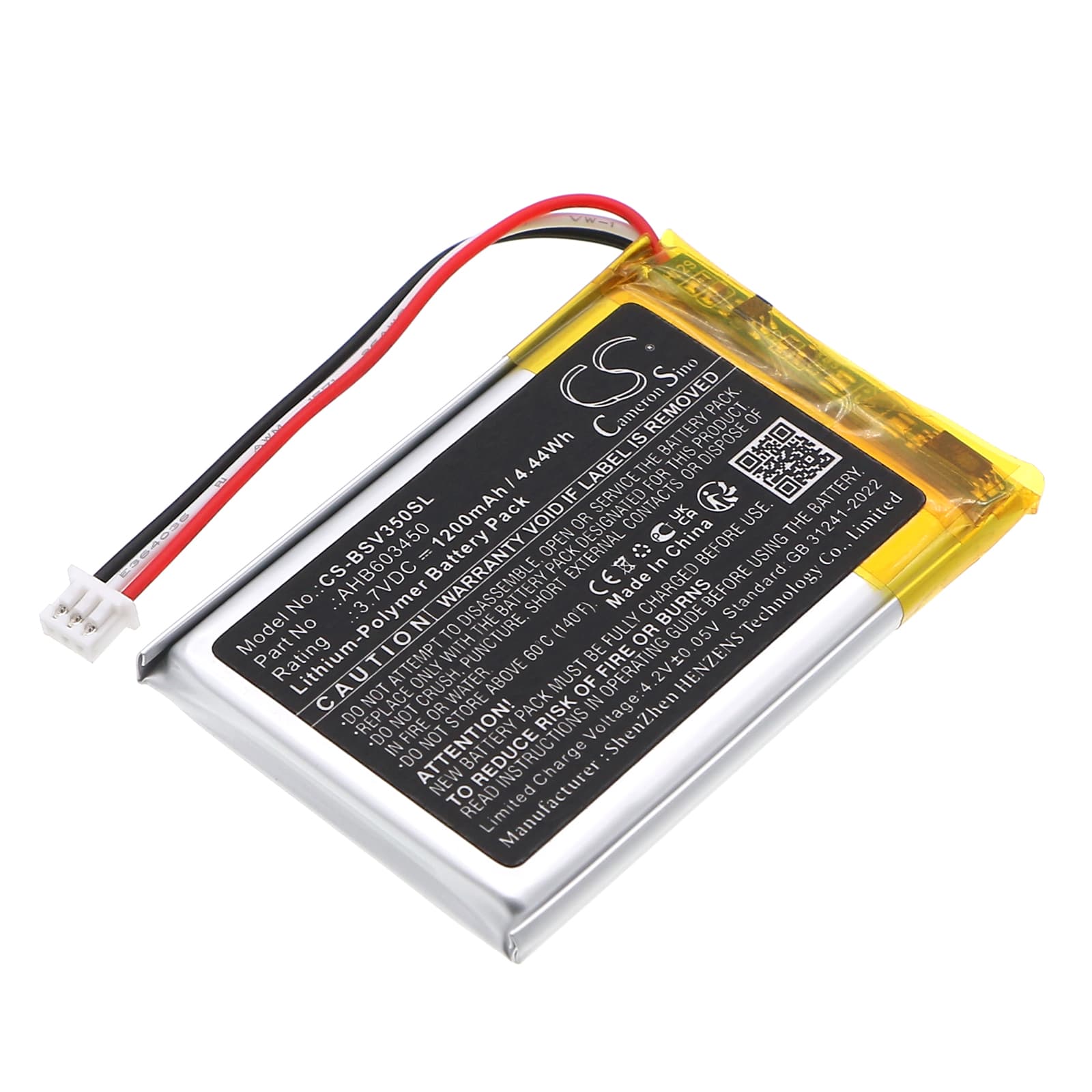

Babysense V35 Video Baby Monitor — 3.7V Li-Polymer Replacement Battery (AHB603450)
This 3.7V, 1200mAh Li-Polymer battery replaces the original AHB603450 cell in the Babysense V35 Video Baby Monitor parent unit. It fits the handheld parent unit — the device you carry around the house while the camera unit stays in the nursery. Capacity figure is taken directly from product data: 1200mAh (4.44Wh).
- V35 parent unit fit: The V35 parent unit uses a slim Li-Polymer cell at 3.7V nominal to match the unit's low-profile handheld housing. The AHB603450 part number identifies the exact cell geometry — 51.00 x 33.80 x 6.30mm — so the connector and physical fit align without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the bench and confirmed the BMS accepts a full charge to 4.2V with no fault flags. The protection circuit tripped correctly at the low-voltage cutoff, preventing cell damage under full discharge conditions.
- Post-swap wireless re-pair: When the parent unit loses power completely during a battery swap, it drops its stored link to the camera unit. After fitting the new battery, power the parent unit on and re-pair it with the V35 camera unit using the sync button sequence in your manual before relying on it overnight.
Parent unit battery draining overnight with screen active
The V35 parent unit runs the LCD screen, radio receiver, and speaker simultaneously during night-time monitoring. That combination draws sustained current well above what a standby-only device would pull. A degraded original battery struggles to cover a full night under this load. Enable the screen timeout function so the display shuts off between alerts — this significantly reduces draw without cutting audio monitoring.
Reduced wireless range after fitting a replacement battery
The V35 parent unit's radio transmitter output is voltage-sensitive. If the replacement battery is not fully charged before first use, the unit operates below its rated voltage and the radio runs at reduced power. This shows up as dropouts or a shorter usable range from the camera unit. Charge the parent unit to full — confirmed at 4.2V across the cell terminals — before testing range.
