About this replacement

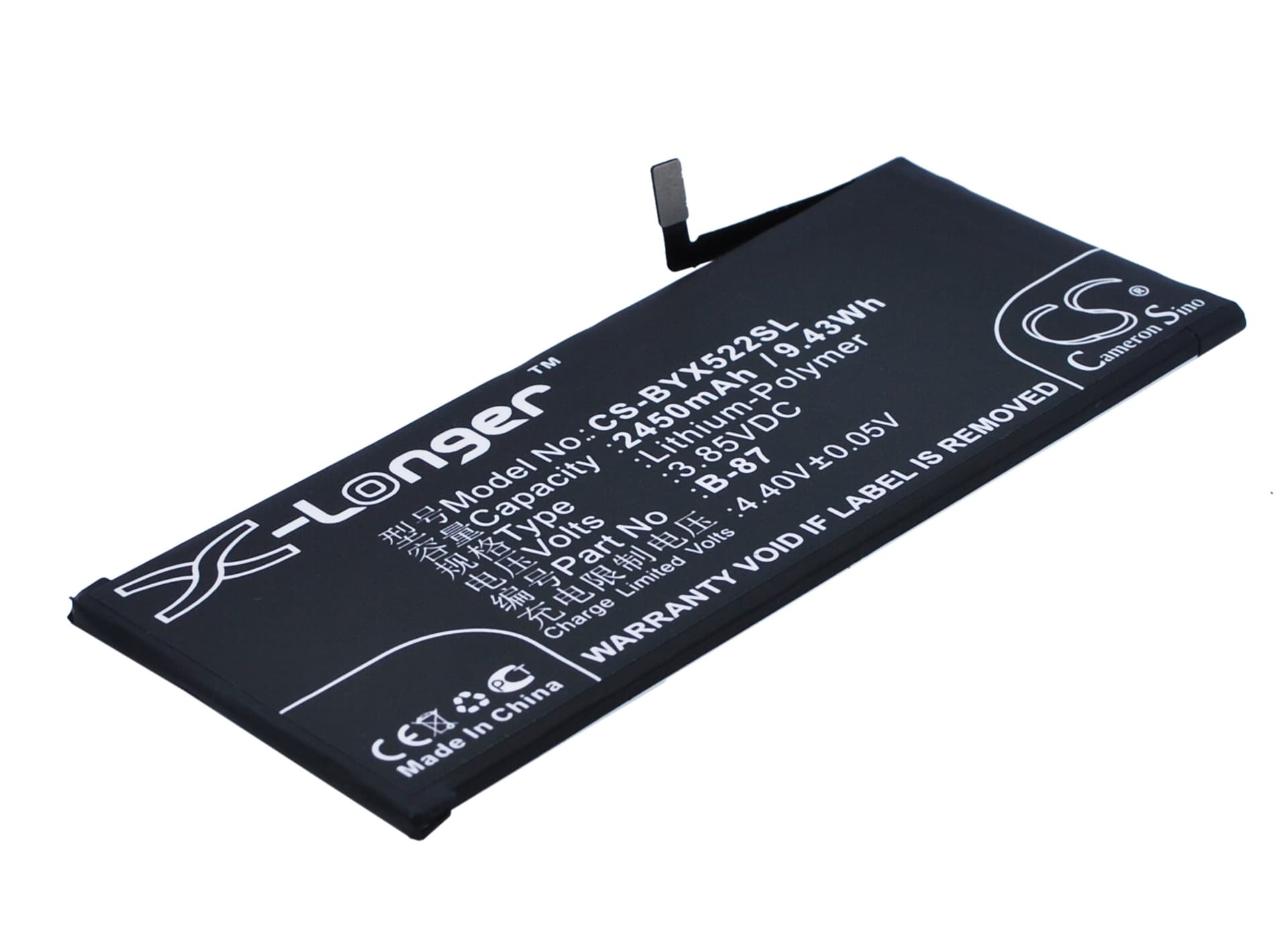

BBK Vivo X5Pro V — 3.85V Li-Polymer Replacement Battery (B-87)
This 3.85V, 2450mAh lithium-polymer cell replaces the original B-87 battery in the Vivo X5Pro V and Vivo X5Pro V Dual SIM. It restores power to the processor, display stack, and wireless radios when the original cell no longer holds a usable charge. Capacity is 9.43Wh — matching the OEM specification.
- X5Pro V and Dual SIM compatibility: Both variants use the same B-87 cell format, voltage rail, and connector pinout. The BMS handshake is identical across the two SKUs, so one cell covers both builds without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on X5Pro V hardware. The BMS accepted the cell, reported state-of-charge correctly after one full cycle, and held voltage above the low-battery cutoff under combined screen and modem load.
- Fuel gauge recalibration after installation: On first use, disable fast charging and run one complete discharge down to automatic shutdown, then charge to 100% on standard current. This gives the coulomb counter a known reference point against the new cell's actual discharge curve before high-current charging begins.
Why the X5Pro V reports wrong battery percentage after a cell swap
The fuel gauge IC on the X5Pro V uses a stored discharge curve from the original cell to estimate remaining capacity. When a new cell goes in, that curve no longer matches the actual cell chemistry, so the reported percentage drifts — sometimes by 10–20 points. The IC needs one full discharge-to-shutdown and charge-to-full cycle to relearn the curve against the replacement cell. Until that cycle completes, percentage readouts are estimates against stale data, not accurate readings.
Sudden shutdown at 20–30% on the replacement cell
This happens when the cell voltage drops below the modem's minimum operating voltage under combined LTE and display load — even though the fuel gauge still shows charge remaining. The fuel gauge is reading average voltage, not instantaneous voltage under peak draw. A fresh cell with an uncalibrated coulomb counter makes this worse because the IC doesn't yet know where the real voltage cliff sits. Run one full calibration cycle first, then check if shutdowns persist; if they do, confirm the cell is seated flat and the connector is fully locked.
