About this replacement

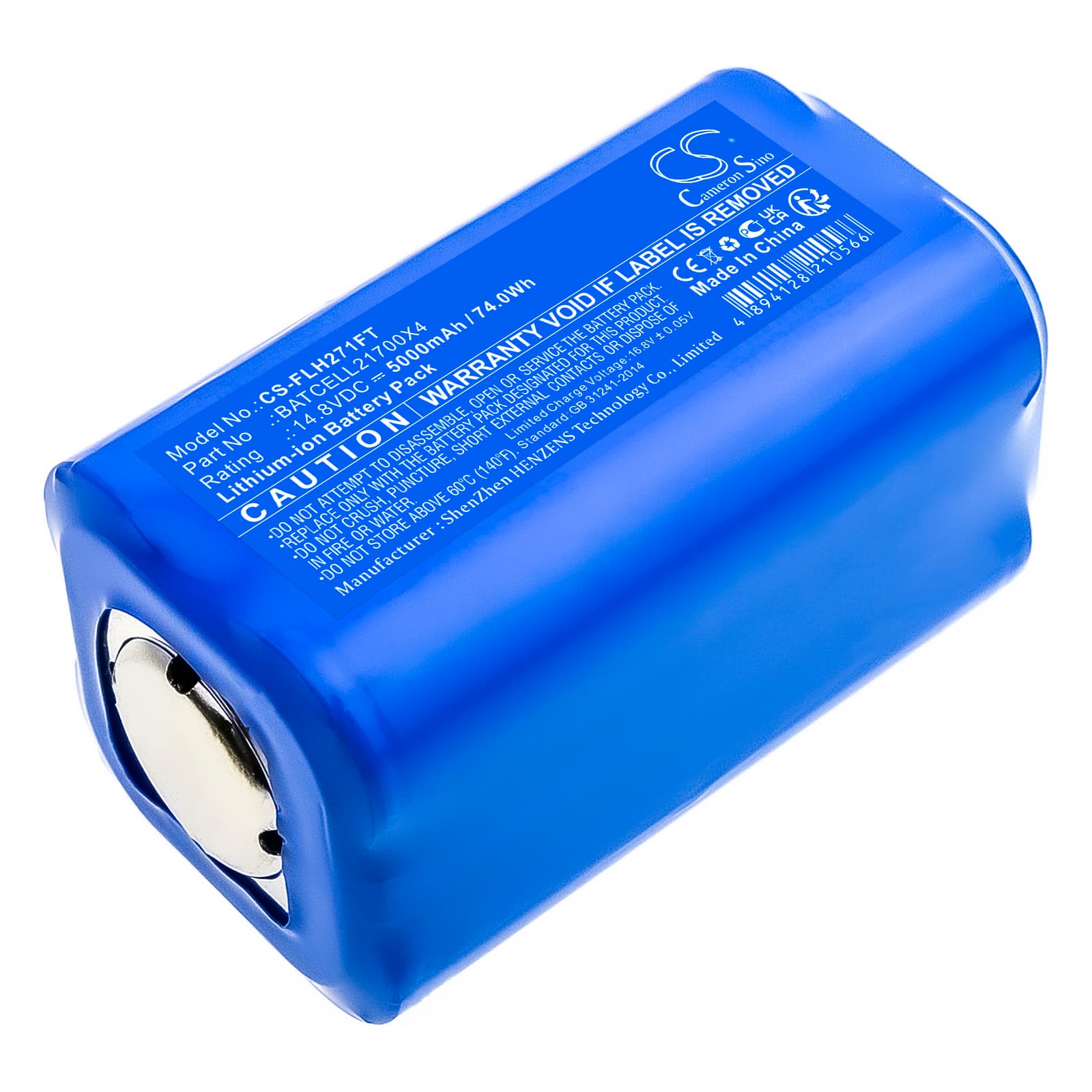

Bigblue CB9000P Series — 14.8V Li-ion Replacement Battery (BATCELL21700X4)
This is a 14.8V, 5000mAh lithium-ion battery pack for the Bigblue CB9000P, CB10000PRC, CB 9000P, and CB 10000P diving flashlights. It uses four 21700 cells in a series configuration. It replaces depleted or degraded packs that cause reduced output or premature shutoff underwater.
- CB9000P and CB10000P series compatibility: These models share the same four-cell 21700 pack format, 14.8V nominal voltage rail, and the same connector and BMS handshake — so one part number covers the full lineup.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the CB9000P driver board. The BMS held cell balance across all four 21700s and tripped protection correctly at the low-voltage cutoff threshold.
- Multi-cell replacement rule: Replace all four cells at the same time from the same batch. Mixing a new pack with partially depleted cells creates imbalance — under the high current draw of turbo mode, the weaker cell drains first and can be damaged by the resulting overcurrent through its depleted capacity.
Why the CB9000P steps down brightness before the indicator reads low
The CB9000P driver uses brownout protection to step output down before the battery actually reads empty. When pack voltage drops under sustained turbo-mode draw, the driver reduces current to the LED array to prevent a hard cutoff underwater. This happens at the cell level — even if overall pack voltage looks acceptable, one imbalanced cell can trigger the threshold early. A fresh, balanced pack eliminates early stepdown in normal dive conditions.
Turbo mode runtime noticeably shorter than standard mode
Turbo mode on the CB9000P draws five to ten times more current than standard mode. That rate of draw compresses the usable capacity window significantly — the pack voltage sags faster under high current, and the driver steps down or cuts off sooner than the mAh figure alone suggests. This is not a defective battery; it is a predictable effect of high-current draw on cell voltage curves. Switch to standard or medium mode for extended dives, reserving turbo for short bursts where full output is needed.
