About this replacement

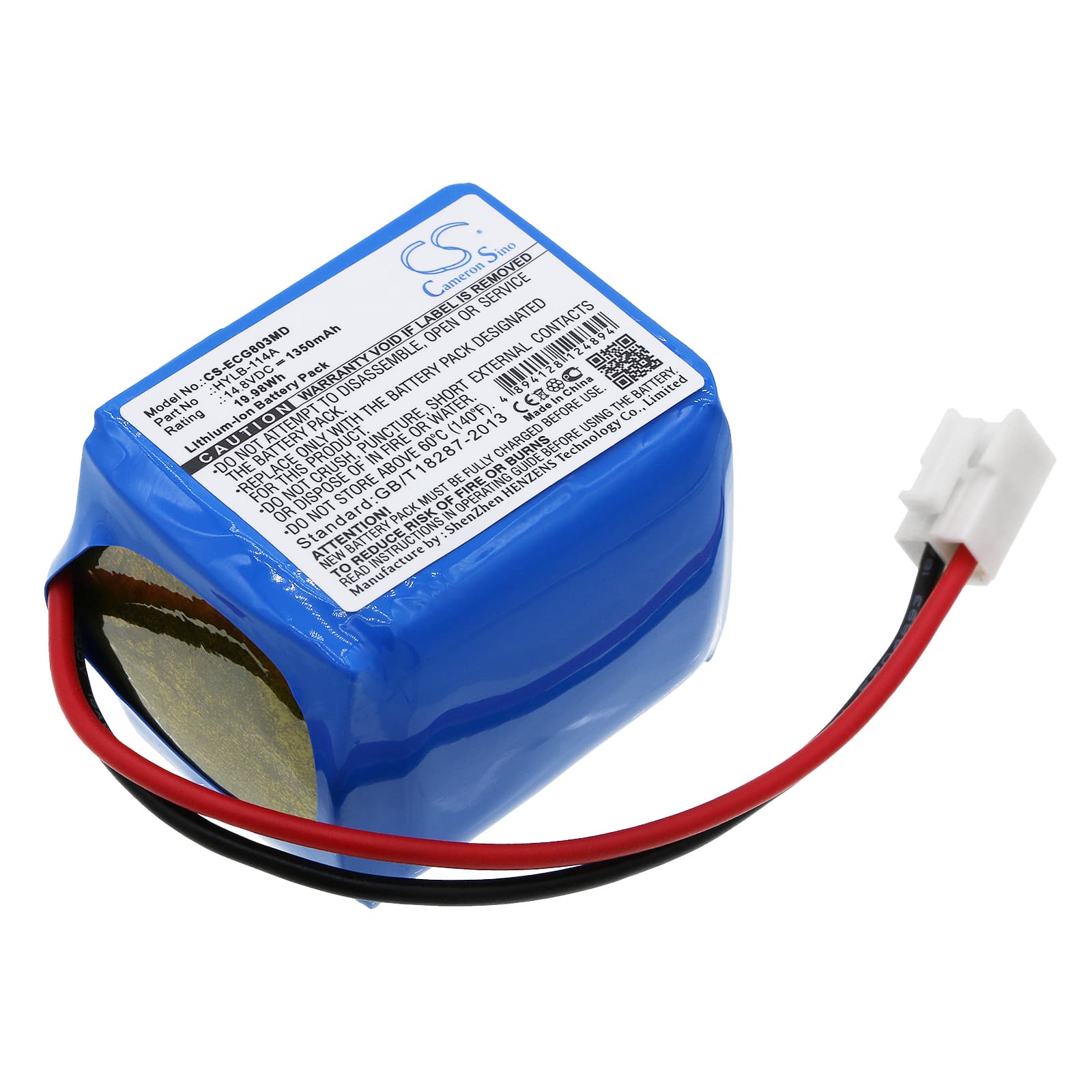

Biocare ECG-9803 Series — 14.8V Li-ion Replacement Battery (HYLB-114A)
This is a 14.8V 1350mAh Li-ion replacement battery for the Biocare ECG-9803 and ECG-9803G portable electrocardiograph. It slots into the same bay as the OEM unit and uses the same connector and BMS communication protocol. Capacity matches the original specification at 19.98Wh.
- ECG-9803 and ECG-9803G fit: Both models run the same 14.8V power rail with an identical battery bay footprint and BMS handshake. The HYLB-114A battery communicates charge state and cell health data to the device firmware on both variants without modification.
- Bench tested on actual hardware: We cycled this battery through charge, load, and BMS communication checks. The BMS reported cell voltage, temperature, and state-of-charge correctly across all test points. No fault codes were triggered on the device display during testing.
- Post-installation self-test protocol: After fitting this battery, allow the ECG-9803 to complete its full power-on self-test without interruption. The device runs a BMS verification sequence at startup — interrupting it before completion can register a false battery fault that persists until the next clean reboot.
Why the ECG-9803 charge indicator stalls below 100% on a new cell
The ECG-9803 charge IC applies a conservative current limit when it detects an unfamiliar cell impedance profile. New lithium cells have a higher internal impedance than a broken-in cell, so the charge controller holds the termination voltage short of the full threshold. This is not a fault — it corrects itself after one complete charge-discharge cycle. Run a full charge from depleted to complete termination before treating any indicator reading as reliable.
ECG-9803 not powering on after the battery sat in storage
Li-ion cells self-discharge during storage. If the battery rested uninstalled for several months, cell voltage may have dropped below the ECG-9803's BMS recovery threshold — typically around 2.5V per cell in a 4S pack. The device will not boot from this state because the BMS blocks output to protect the cells. Connect to mains power and leave the charger running for at least 30 minutes before attempting to power on; the charge circuit will recover the cells above the BMS enable threshold before the device draws load current.
