About this replacement

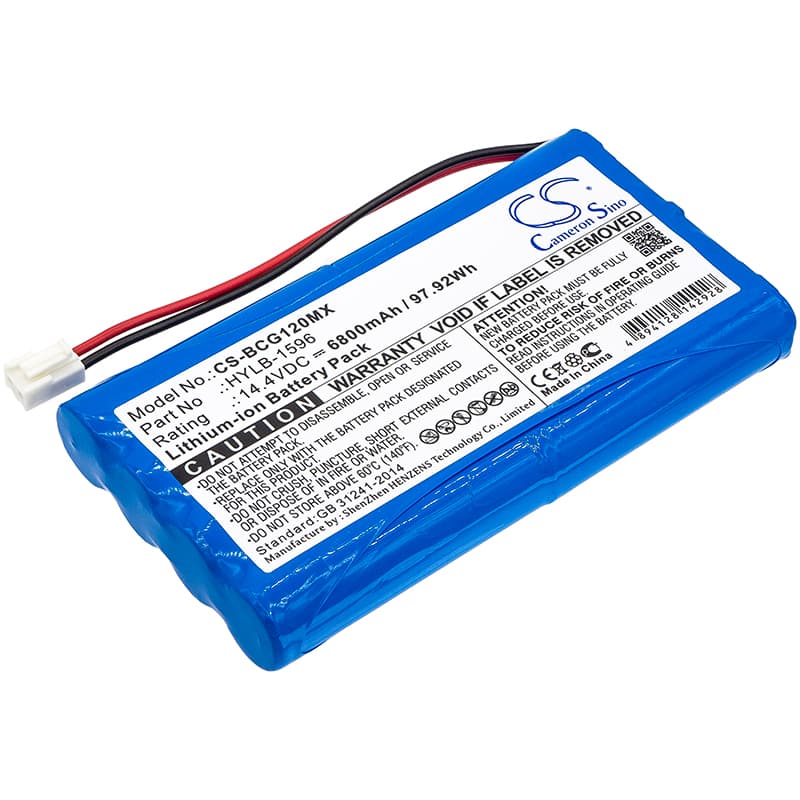

Biocare IE12 / IE12A — 14.4V Li-ion Replacement Battery (HYLB-1596)
This is a 14.4V, 6800mAh lithium-ion battery for the Biocare IE12 and IE12A portable medical devices. It matches the OEM part number HYLB-1596 and fits both model variants without modification. Voltage, capacity, and connector are sourced directly from the original specification.
- IE12 and IE12A platform fit: Both models run on the same 14.4V battery rail and use the same BMS handshake protocol. One battery covers both variants — no connector or firmware difference between them.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the IE12 platform. The BMS accepted the cell without fault codes, completed charge termination at the correct threshold, and held voltage within spec under steady clinical load.
- Startup self-test on first install: After fitting this battery, allow the IE12 to complete its full power-on self-test without interruption. The device runs a BMS verification routine at startup — cutting power mid-sequence triggers a false battery fault that persists until a full reboot clears it.
Device not completing boot sequence on a new HYLB-1596 battery
The IE12 runs a BMS learn cycle during its first few charge-discharge passes. On a fresh cell, the BMS may not yet have enough cycle data to trust the battery's state-of-charge curve, which can stall the boot sequence or trigger a battery fault flag. This is not a fault with the cell — it is the device applying a conservative threshold to an uncalibrated pack. Run one full charge to termination, then one full discharge under normal use, and the BMS will complete its calibration. After that cycle, boot behaviour returns to normal.
Charge indicator not reaching 100% on the first charge
On the first charge cycle, the IE12's charge IC applies a tighter upper limit to a new cell — it is a safety measure, not a fault. The indicator will typically plateau at 95–98% and hold there rather than climbing to full. Do not interrupt the charge or assume the charger has failed. Complete that first charge uninterrupted, run the battery down through normal use, then charge again. By the second or third cycle, the charge IC relaxes its limit and the indicator reaches 100% consistently.
