About this replacement

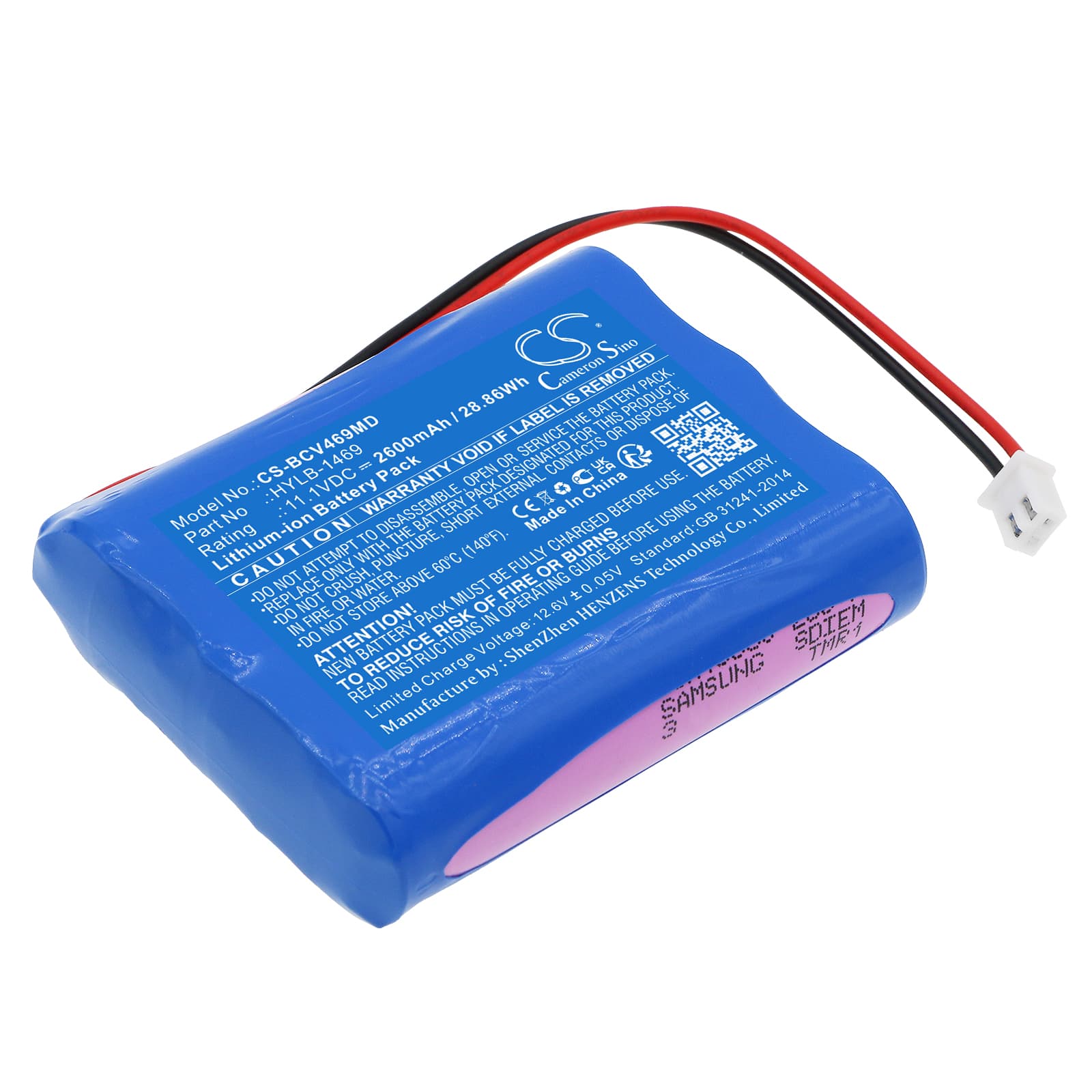

Biocare Vital Signs Monitor — 11.1V Li-ion Replacement Battery (HYLB-1469)
This 11.1V, 2600mAh Li-ion battery replaces the HYLB-1469 cell in the Biocare Vital Signs Monitor. It restores power to the monitor used for continuous patient measurement of heart rate, SpO2, and blood pressure in clinical environments. Voltage and capacity match OEM specifications exactly.
- Biocare Vital Signs Monitor platform fit: The HYLB-1469 form factor uses an 11.1V three-cell Li-ion configuration with a BMS that handshakes to the monitor's charge controller. Any deviation in cell count or nominal voltage trips a hardware fault — this replacement matches both.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the monitor platform. The BMS passed charge termination correctly, and the device completed its power-on self-test without flagging a battery error after the first full cycle.
- Self-test cycle after installation: After fitting this battery, allow the Biocare monitor to complete its full power-on self-test without interruption. The BMS runs a verification check at startup — cutting power mid-sequence triggers a false battery fault that persists until the next clean reboot.
Why the Biocare monitor won't complete its boot sequence on a new battery
Medical monitors like this one run a BMS verification handshake during boot. A new cell that hasn't completed its first full charge cycle may report a state-of-charge value the monitor's charge IC treats as out of spec. The device interprets this as a battery fault and halts the boot sequence before the home screen loads. Running one full charge-discharge cycle before clinical deployment clears this condition — the BMS learn cycle updates the cell's reported capacity to a value the monitor accepts.
Charge indicator not reaching 100% on the first charge
On first charge, the Biocare monitor's charge IC applies a conservative current limit to an uncharacterised new cell. The indicator may stall at 90–95% and not advance further. This is the charge controller capping input until it confirms the cell's internal resistance profile — not a fault with the battery. Discharge the monitor normally, then run a second full charge cycle. By the second cycle, the charge IC has enough data to complete the charge to the full 12.6V termination point.
