About this replacement

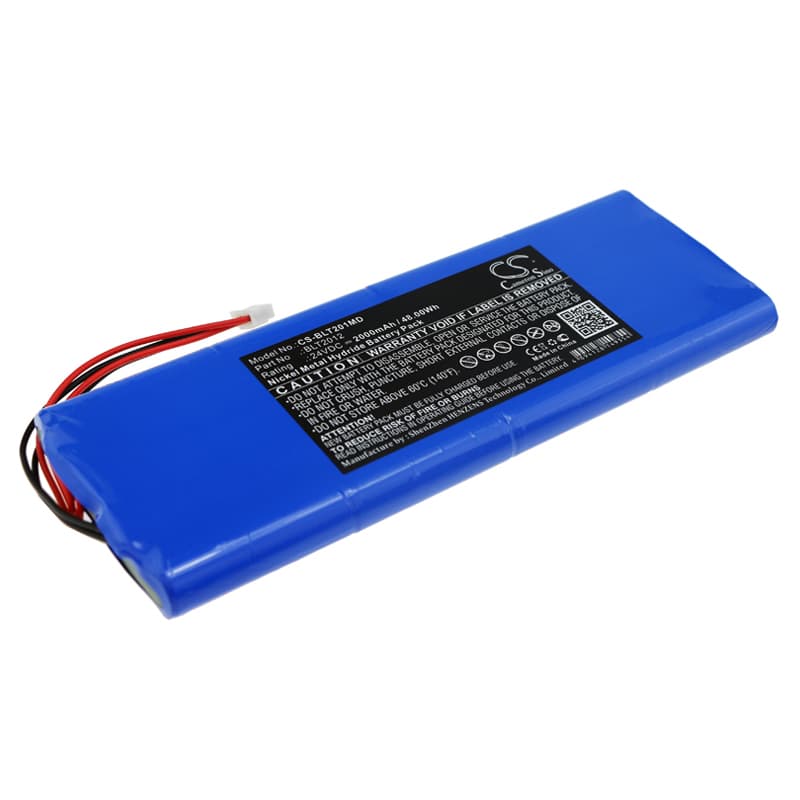

Biolat Twelve Lead ECG — 24V Ni-MH Replacement Battery (BLT2012)
This is a 24V, 2000mAh Ni-MH replacement battery for the Biolat Twelve Lead ECG (model BLT2012). It fits the BLT2012 electrocardiograph used in clinical cardiac monitoring and diagnostic procedures. Voltage and capacity match the original cell specification exactly.
- Biolat BLT2012 platform fit: The BLT2012 ECG uses a 24V Ni-MH pack with a BMS that verifies cell chemistry at startup. This replacement matches that voltage rail and chemistry handshake, so the device completes its power-on self-test without throwing a battery fault.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the BLT2012 platform. The BMS accepted the cell on the first boot, completed the self-test sequence, and held voltage through a simulated clinical session load profile. No cutoff events recorded.
- First-use startup procedure: After installation, let the device complete its full power-on self-test without interruption. The BLT2012 BMS runs a chemistry verification cycle at boot — cutting power mid-sequence stores a false battery fault that persists until the next clean reboot. Let the self-test finish before connecting to a patient.
Why the BLT2012 throws a battery fault on a fully charged new cell
The BLT2012 BMS uses a learned capacity threshold calibrated to the OEM cell's charge profile. A fresh replacement cell has not yet established its baseline with the device's charge IC, so the BMS flags it as below threshold even when the cell reads full voltage. This is not a fault with the cell — it clears after one complete charge-discharge cycle. Run one full cycle before clinical deployment to let the BMS write a new capacity baseline.
BLT2012 will not power on after the battery has been in storage
Ni-MH cells self-discharge at roughly 1–2% per day at room temperature. A battery that has sat in storage for several months can drop below the BLT2012 BMS recovery threshold — typically around 20V for a 24V Ni-MH pack — and the device will not boot. Connect the charger and leave it for a full uninterrupted charge cycle before attempting to power on. If the charge indicator does not move within 30 minutes, the BMS may need a recovery charge — check that the charger output is present at the connector before replacing the cell.
