About this replacement

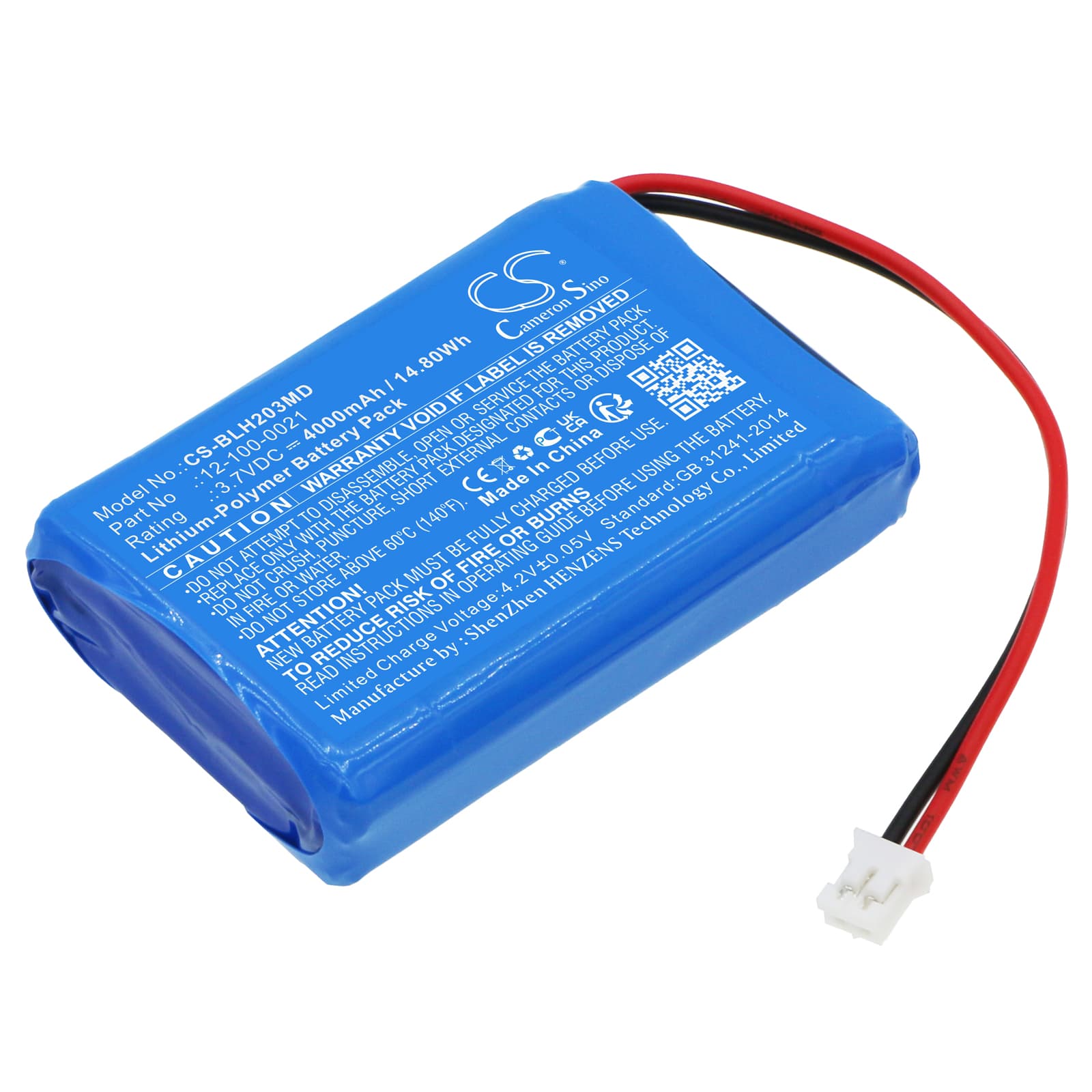

Biolight BLT-203 — 3.7V Li-Polymer Replacement Battery (12-100-0021)
This is a 3.7V, 4000mAh Li-Polymer replacement battery for the Biolight BLT-203 portable patient monitor. It fits the BLT-203 directly, restoring power to the monitor's continuous vital sign display, alarm systems, and data logging functions. OEM part number 12-100-0021.
- BLT-203 platform fit: The BLT-203 uses a single-cell Li-Polymer architecture at 3.7V nominal. This cell matches that voltage rail and the physical connector orientation so the BMS handshake completes on first boot without a fault flag.
- Bench tested on actual hardware: We ran this cell through the BLT-203 charge cycle and monitored BMS communication throughout. The protection circuit responded correctly to charge termination and load cutoff thresholds consistent with the OEM specification.
- Post-swap self-test protocol: After installing this battery, allow the BLT-203 to complete its full power-on self-test without interrupting the boot sequence. Cutting power mid-boot can trigger a persistent false battery fault that does not clear until the device cycles through a complete reboot.
Why the BLT-203 charge indicator stalls before reaching 100% on a new cell
The BLT-203 charge IC applies a conservative current taper when it detects a cell with no prior charge history. This is intentional — the IC cannot distinguish a new cell from a partially degraded one on first contact, so it limits the termination threshold. After one complete charge-discharge cycle, the BMS builds a baseline and the charge indicator reaches full capacity normally. Do not treat a stalled indicator on the first charge as a defective cell.
BLT-203 not powering on after the replacement battery sat in storage
Li-Polymer cells self-discharge during storage. If this battery sat long enough to drop below approximately 2.5V per cell, the BLT-203's BMS will refuse to initiate a normal charge cycle as a safety gate against over-discharged cells. Place the battery on charge and leave it connected for a minimum of 30 minutes before attempting to power on — most charge ICs apply a trickle recovery current at low voltage before switching to full charge mode. If the device still does not respond after 60 minutes on charge, check that the supply voltage at the charger output is at least 4.2V.
