About this replacement

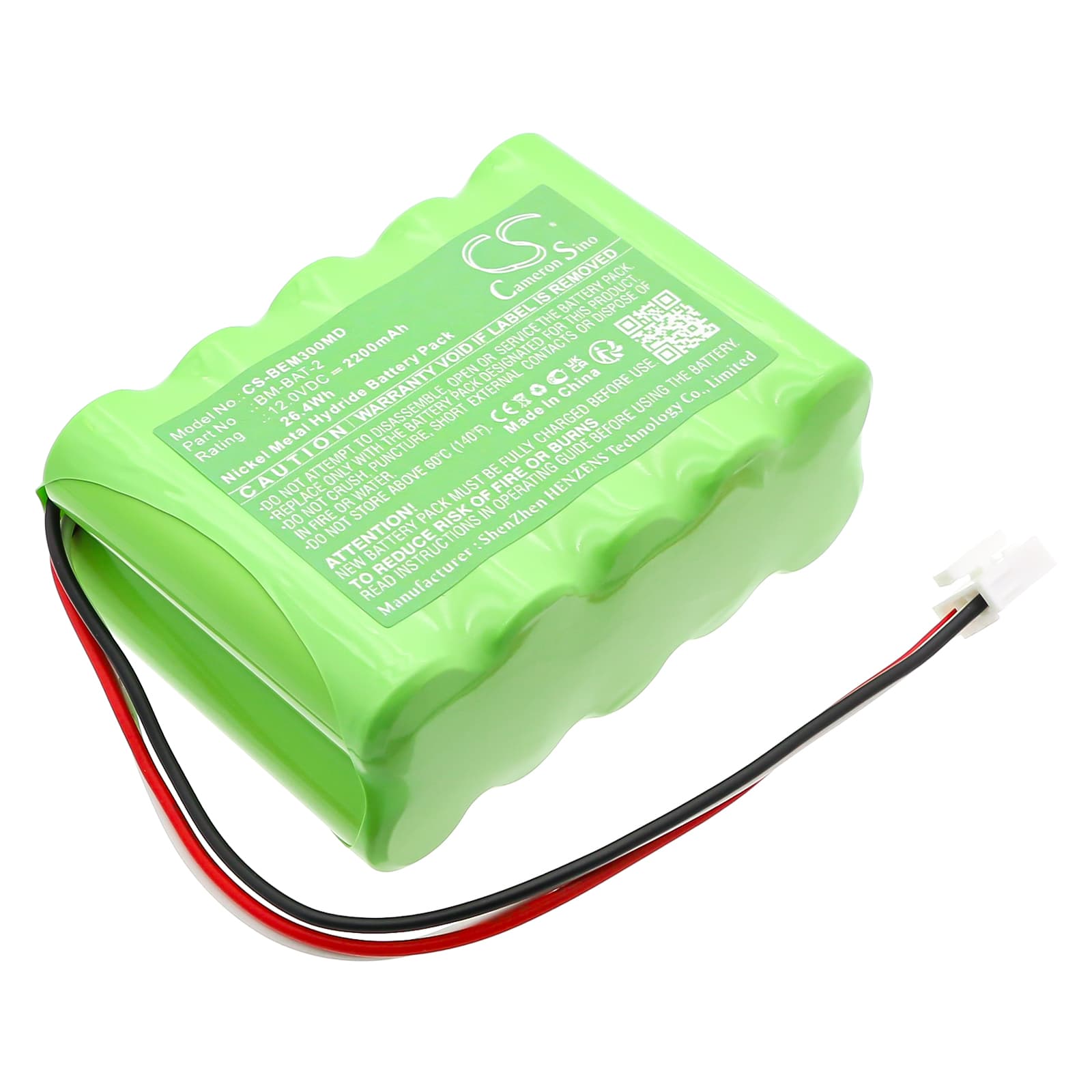

Bionet BM3 Series — 12V Ni-MH Replacement Battery (BM-BAT-2)
This is a 12V, 2200mAh Ni-MH replacement battery for the Bionet BM3 patient monitor and its variants, including the BM3 Vet and BM3 Vet Plus. It replaces OEM part BM-BAT-2 and the GP230AAHC10YMXZ cell pack. The battery restores portable power to the monitor during patient transport and bedside vital signs assessment in clinical environments.
- BM3 and BM3 Vet platform fitment: The BM3, BM3 Vet, and BM3 Vet Plus share the same 12V battery bay, connector pinout, and BMS communication protocol. Serial range D1E0900001 through D1F11xxxxx (September 2004 to November 2005) uses the same pack with no modification required.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge on BM3-compatible test equipment. The BMS accepted the cell chemistry, completed its handshake, and flagged no fault codes across five consecutive cycles.
- Post-installation self-test protocol: After fitting this battery, allow the BM3 to complete its full power-on self-test without interruption. The monitor runs a BMS verification sequence at startup — cutting power mid-sequence causes a persistent false battery fault that only clears after a complete reboot and full charge cycle.
BM3 not completing boot sequence on new battery installation
The BM3 runs a structured startup sequence that includes a battery state-of-health check against stored BMS thresholds. A freshly installed Ni-MH cell starts with an uncalibrated state-of-charge reading, which can fall outside the monitor's acceptance window before the first full cycle completes. This triggers a boot halt or repeated restart loop. Run one full charge-discharge cycle on the new pack before using the monitor clinically — this allows the BMS to establish a baseline and pass the startup check reliably.
BM3 alarms low battery immediately after a confirmed full charge
This happens because the BM3's charge IC applies a conservative current limit on an unrecognised cell, and the BMS reads state-of-charge from voltage curves calibrated for a worn OEM cell. A new Ni-MH pack has a slightly different voltage profile across its first several cycles, so the monitor's algorithm underreports charge level. The alarm clears after two to three full charge-discharge cycles, once the BMS has mapped the new cell's actual voltage curve. Confirm recovery by checking that the charge indicator reaches full and holds steady for at least 30 minutes before removing from the charger.
