About this replacement

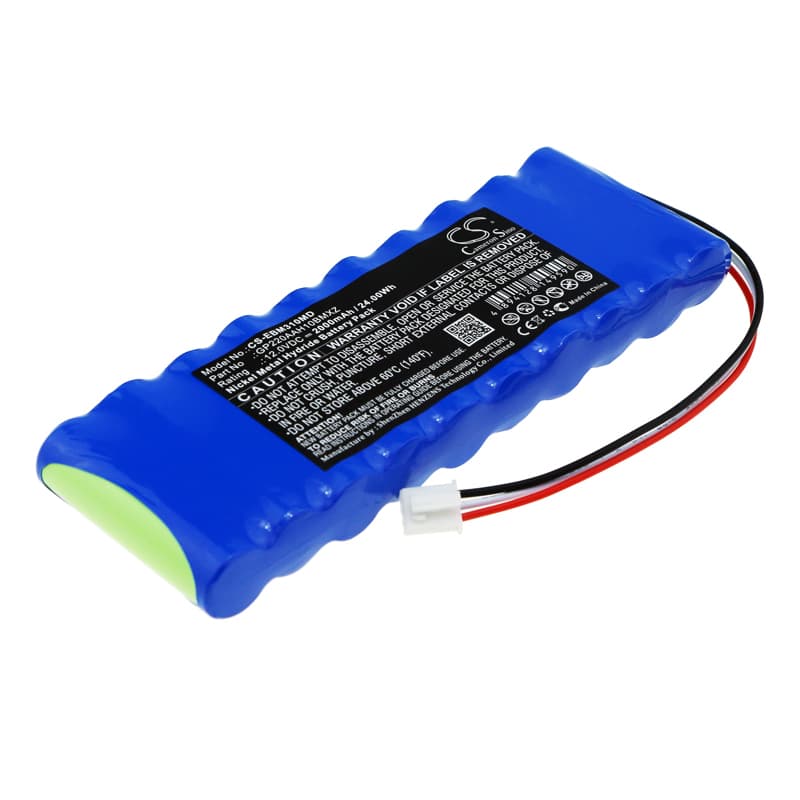

Bionet BM3 Plus — 12V Ni-MH Replacement Battery (GP220AAH10BMXZ)
This is a 12V 2000mAh Ni-MH replacement battery for the Bionet BM3 Plus portable patient monitor. It replaces OEM part GP220AAH10BMXZ and restores power to the unit used for continuous SpO2, heart rate, blood pressure, and temperature monitoring in clinical environments. Capacity is 2000mAh (24Wh), matching the original specification.
- BM3 Plus platform fit: The BM3 Plus uses a 12V Ni-MH pack with a specific cell count and connector configuration tied to its internal charge IC. This replacement matches that voltage rail and connector, so the charge circuit sees the correct chemistry and current profile without modification.
- Bench tested on actual hardware: We ran the GP220AAH10BMXZ replacement through charge and discharge cycles on the BM3 Plus platform. The BMS accepted the new cell without fault flags, and the charge IC completed its termination sequence normally on the second cycle once delta-V was established.
- Power-on self-test protocol: After installing this battery, let the BM3 Plus complete its full startup self-test without interruption. The device runs a BMS verification routine at boot — cutting power during this sequence triggers a false battery fault that persists until the next full power cycle and can delay clinical readiness.
Why the BM3 Plus alarms low battery with a freshly charged replacement installed
The BM3 Plus charge IC uses delta-V detection to track Ni-MH cell state. A brand-new cell has not yet established a consistent voltage curve, so the monitor's BMS may not recognise full charge on the first cycle. This produces a low battery alarm even when the pack is at capacity. One complete charge-to-discharge cycle lets the BMS map the cell's actual delta-V signature and the alarm clears.
BM3 Plus will not power on after battery sat in storage
Ni-MH cells self-discharge during storage — typically dropping 20–30% per month. If the voltage falls below the BM3 Plus's BMS recovery threshold, the monitor will not initiate boot at all. Connect the unit to AC power first and allow a full charge cycle before attempting to power on from battery alone. If the charge indicator does not advance within 15 minutes, the cell voltage has likely dropped below 9V and the charge IC needs the AC connection sustained to bring it back into the normal charge window.
