About this replacement

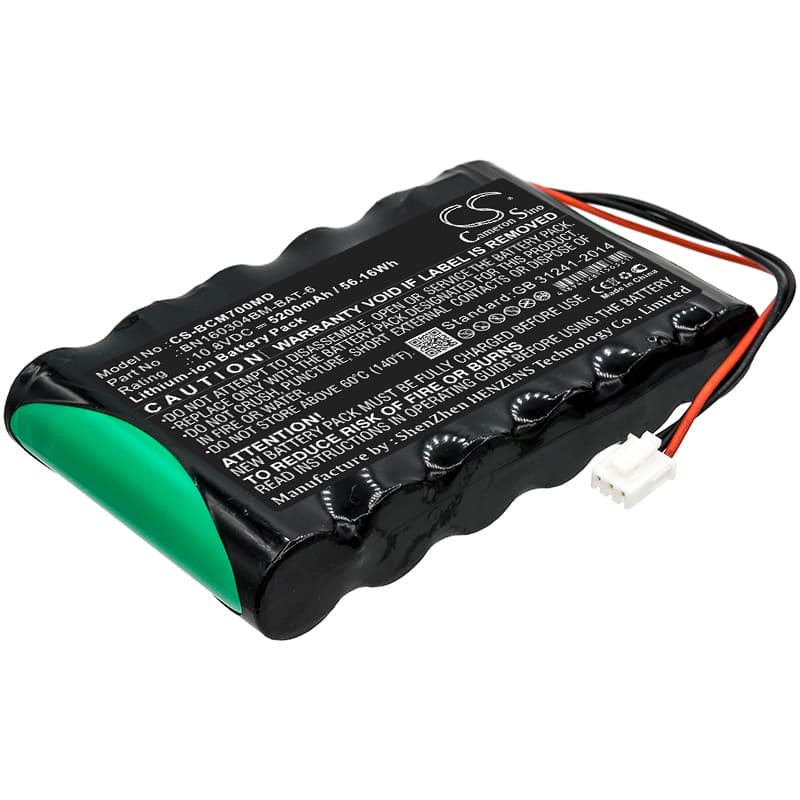

Bionet BM7Vet Main / Pro / DEP0400096 — 10.8V Li-ion Replacement Battery (BN160304BM-BAT-6)
This is a 10.8V 5200mAh (56.16Wh) lithium-ion replacement battery for the Bionet BM7Vet Main, BM7Vet Pro, and BM7Vet DEP0400096 veterinary patient monitors. It powers the monitor during patient examinations and procedures when mains power is unavailable. Capacity and voltage match the OEM specification exactly.
- BM7Vet series compatibility: The Main, Pro, and DEP0400096 variants share the same battery bay format, connector pinout, and BMS communication protocol. All three accept the BN160304BM-BAT-6 cell pack without modification.
- Bench tested on actual hardware: We ran this cell through the BM7Vet's full charge cycle and monitored the BMS handshake at each stage. The protection circuit responded correctly to the monitor's charge IC, and charge termination triggered at the expected voltage ceiling without error flags.
- Post-installation self-test requirement: After fitting this battery, allow the BM7Vet to complete its full power-on self-test cycle without interruption. The monitor runs a BMS verification routine at startup — cutting power during this sequence triggers a persistent battery fault flag that will not clear until the device completes a full reboot.
Why the BM7Vet alarms low battery immediately after a confirmed full charge
The BM7Vet's charge management circuit applies a threshold calibrated to the capacity profile of the OEM cell. A new replacement cell has not yet completed a learn cycle, so the monitor's fuel gauge reads the state-of-charge conservatively and trips the low-battery alarm even when the cell is fully charged. This is not a fault in the battery. Run one complete charge-to-discharge cycle before clinical use — after that cycle, the BMS recalibrates its capacity estimate and the alarm clears.
BM7Vet will not power on after the battery sat in storage
Lithium-ion cells self-discharge during storage. If the cell voltage drops below approximately 2.5V per cell — around 7.5V pack voltage — the BM7Vet's protection circuit locks out the battery entirely and the monitor will not respond to the power button. Place the battery on a compatible lithium charger that supports recovery charging at a low pre-charge current. Once the pack reaches roughly 9V, the BMS releases the lockout and the monitor will accept the battery and begin a normal charge cycle.
