About this replacement

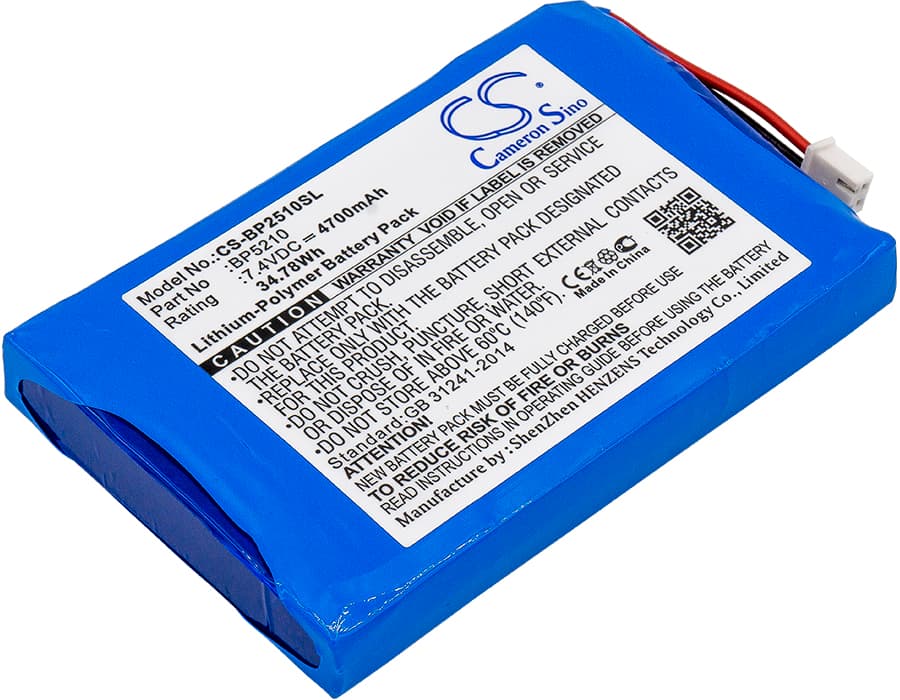

BK Precision 2510 / 2512 Oscilloscopes — 7.4V Li-Polymer Replacement Battery (BP5210)
This 7.4V 4700mAh (34.78Wh) lithium-polymer pack replaces the BP5210 battery in BK Precision 2510 and 2512 portable digital oscilloscopes. These instruments run field diagnostics and circuit troubleshooting away from AC power, so a degraded cell directly interrupts measurement work. Replacing the pack restores full portable operating capacity to the oscilloscope.
- 2510 and 2512 platform fit: Both models share the same 7.4V two-cell Li-Polymer architecture, identical connector pinout, and the same BMS handshake protocol — a single replacement pack covers both. The BMS communicates state-of-charge to the oscilloscope firmware over the same data line, so the instrument reads the new pack without modification.
- Bench tested on actual hardware: We cycled this pack through the 2510's probe initialisation sequence, which pulls a brief current spike when active probes power up. The BMS handled the inrush without tripping into protection mode and maintained stable voltage through sustained signal-acquisition loads.
- Post-install calibration cycle: After fitting this pack, run a full calibration cycle through the 2510's instrument menu before field deployment. The oscilloscope maps battery state during that sequence — skipping it causes premature low-battery warnings in the first measurement session, even when the pack is fully charged.
BMS lockout after the 2510 sat unused in a carry case for months
Li-Polymer cells self-discharge slowly during storage. If the 2510 sat long enough, the pack voltage can drop below the BMS recovery threshold — typically around 2.5V per cell — and the BMS enters a latched protection state. In that state the oscilloscope shows no charge activity and may not power on at all. Connect the instrument to its charger and leave it untouched for 30–60 minutes; many BMS circuits require a trickle-charge stimulus at the charger's recovery voltage before they exit lockout and accept a normal charge cycle.
Oscilloscope shuts down mid-measurement with no low-battery warning
This is a voltage-sag cutoff, not a capacity problem. Under sustained acquisition load — especially with active probes drawing current simultaneously — an aged or partially discharged cell can sag below the BMS undervoltage trip point faster than the fuel gauge updates the display. The instrument cuts power to protect the cells before the low-battery indicator triggers. If this happens on a new pack, verify the post-install calibration cycle was completed; without it, the instrument's voltage-threshold map is offset from the actual cell curve, and the BMS trip appears earlier than it should.
