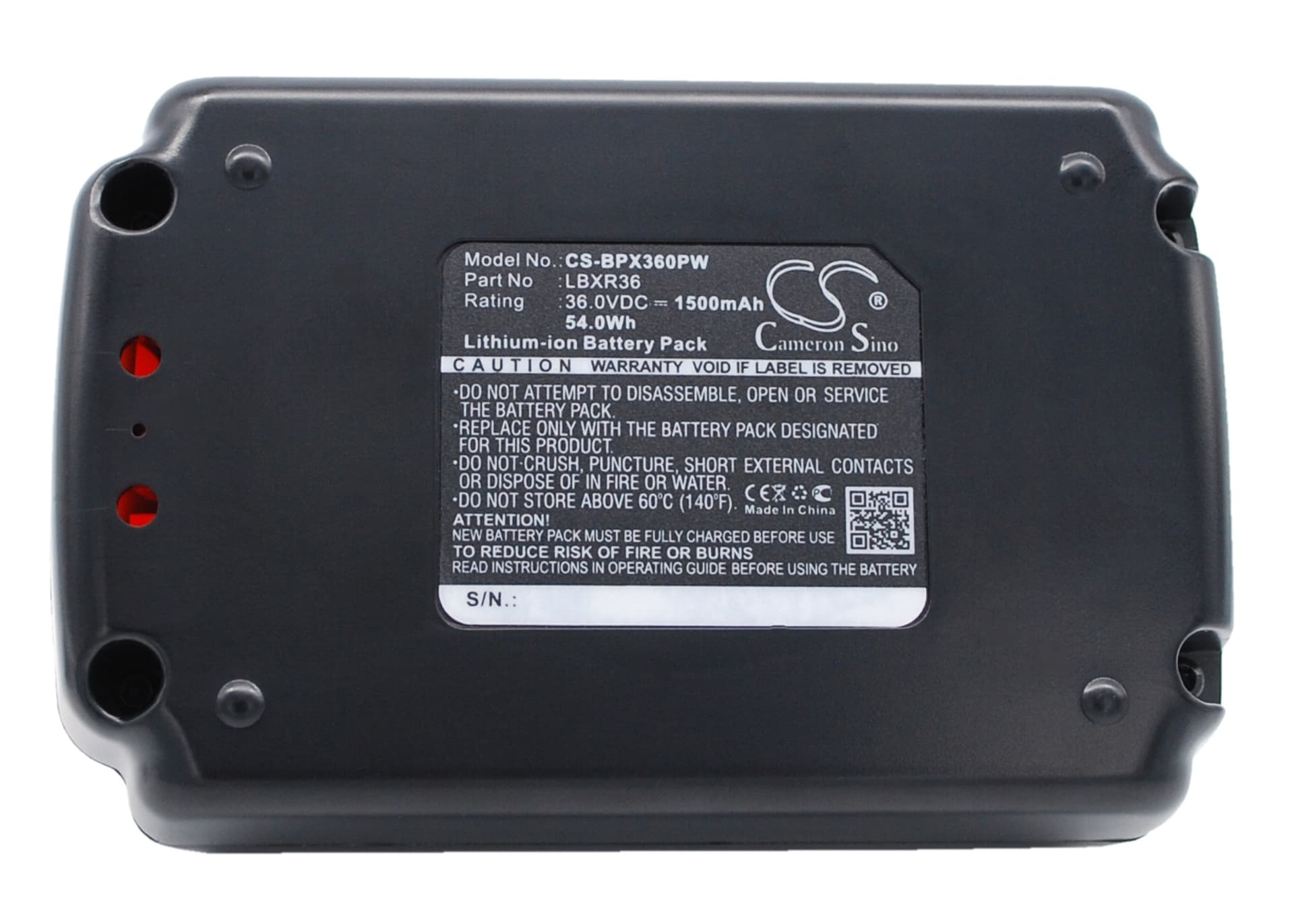

Black & Decker LST136 Series — 36V Li-ion Replacement Battery (LBXR36)
This 36V 1500mAh Li-ion battery replaces the LBXR36 and fits the Black & Decker LST136 cordless string trimmer along with the TC220, MST1024, MST2118, and 47 additional models. It runs at 36V nominal with a 54Wh energy rating. Swap it in when the original pack no longer holds a charge or fails to register on the charger.
- LST136 and TC220 platform compatibility: These models share the same 36V battery rail, connector pinout, and BMS handshake protocol. One pack works across all of them without adapter hardware or firmware changes.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the LST136 platform. The BMS responded correctly to motor-start inrush current, held the voltage rail steady under mid-load trimming, and tripped protection as expected at the overcurrent threshold.
- Motor-start conditioning on first use: On the first two cycles, run the trimmer at half throttle through the full charge. This lets the BMS log the motor's inrush current signature before it sets its overcurrent trip threshold — it reduces nuisance cutouts during aggressive cutting later.
BMS Cutoff on LST136 Motor-Start Inrush
When you pull the trigger on the LST136, the brushless motor draws a short inrush spike — often three to five times the steady-state current. A new or storage-depleted pack can read this spike as an overcurrent fault. The BMS cuts the output rail in under a millisecond, and the trimmer stops before the blade reaches speed. Cycling the pack through two full charge-discharge runs at moderate load lets the BMS recalibrate its trip threshold against this motor's actual inrush profile.
Charger Shows Blinking Red on a New or Stored Pack
Black & Decker's 36V charger requires the pack to present a minimum cell voltage — typically around 2.5V per cell — before it enters the main charge phase. A pack that has sat in storage can drop below this acceptance threshold, and the charger responds with a blinking red LED rather than starting the charge cycle. Place the pack in the charger, wait 10 minutes, then remove and reinsert it — the charger's trickle-wake circuit may push the cells back above the acceptance floor. If the blink continues, check that all rail contacts are clean and seat the pack firmly until it clicks at 36V.
