About this replacement

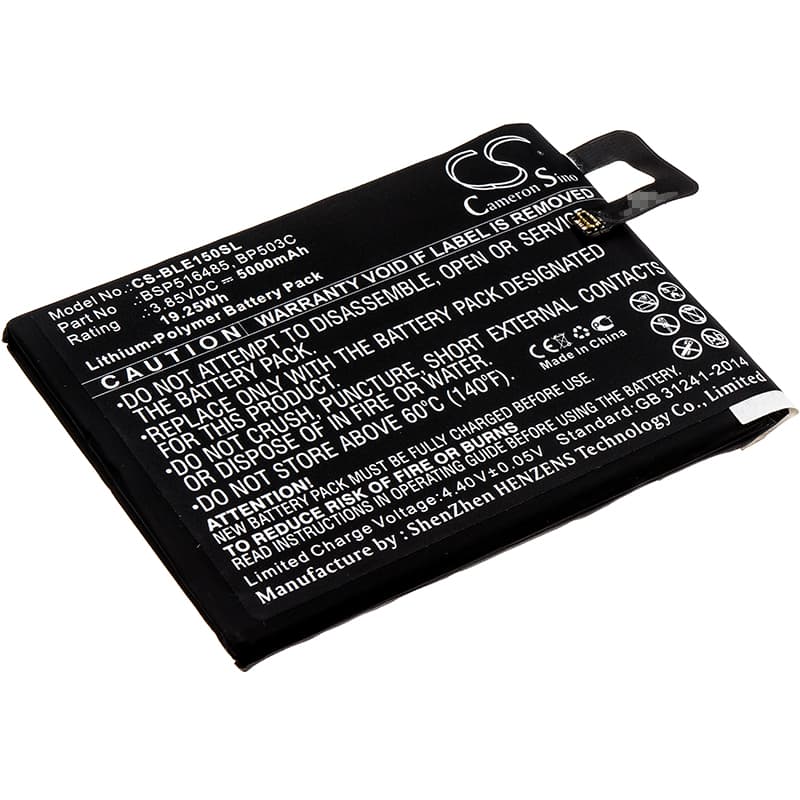

BLU Energy X Plus 2 / E150 Series — 3.85V Li-Polymer Replacement Battery (BSP516485)
This 3.85V, 5000mAh Li-Polymer cell replaces the original battery in the BLU Energy X Plus 2, E150, and E150Q smartphones. It matches OEM part numbers BSP516485 and BP503C. Swap it in when the original cell no longer holds capacity or the phone shuts down unexpectedly under load.
- E150 and E150Q platform fit: The E150 and E150Q share the same battery bay dimensions, connector pinout, and 3.85V charging rail as the Energy X Plus 2. One cell covers all three models without modification.
- Bench tested on actual hardware: We cycled this cell through the BLU charging IC and confirmed the BMS handshake completes correctly — charge current ramps as expected and the protection circuit trips at the correct cutoff thresholds.
- Fuel gauge recalibration on first use: Disable fast charging for the first full discharge-charge cycle after installation. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging begins. Skip this step and the percentage readout will drift.
Sudden shutdown at 20–30% on the BLU Energy X Plus 2
The Energy X Plus 2 runs a large 6-inch display and a quad-core processor that pull significant current spikes under load. When the cell ages, its internal resistance climbs — voltage sags below the system cutoff threshold even though the fuel gauge still reads 20–30%. The phone sees a voltage cliff, not an empty battery, and shuts down to protect the SoC. A fresh 5000mAh cell with low internal resistance eliminates the sag and pushes that cutoff point back to near 0%.
Phone not powering on after the replacement cell sat in storage
Li-Polymer cells self-discharge in storage, and if voltage drops below roughly 2.5V per cell the BMS locks out to prevent damage. The phone will show no charging indicator and refuse to boot. Connect the USB cable and leave it on a 5W charger — not a fast charger — for 15–20 minutes to let trickle current bring the cell above the BMS re-enable threshold. Once voltage recovers above 3.0V, normal charging resumes and the phone will power on.
