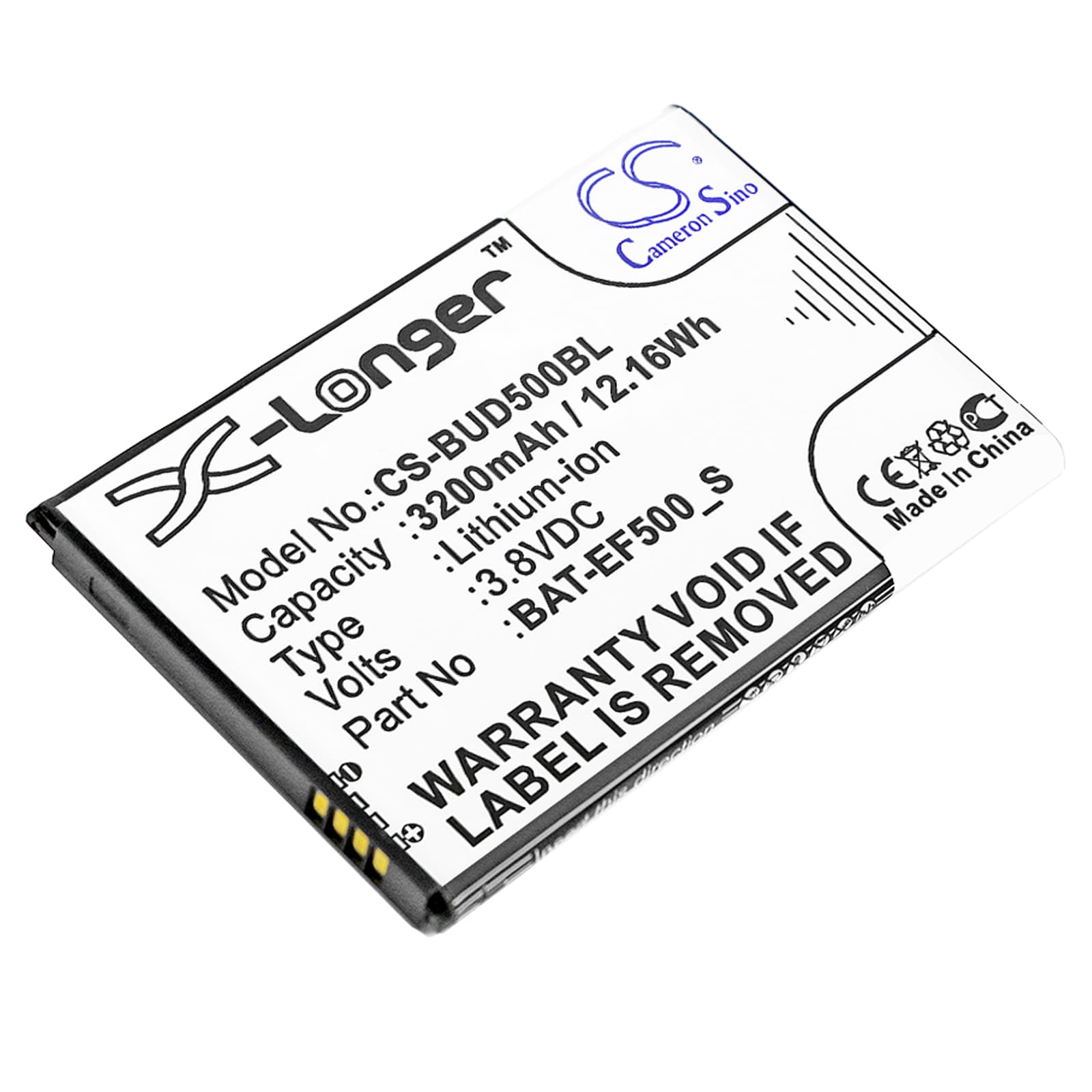

BlueBird EF500R / EF501R Series — 3.8V Li-ion Replacement Battery (BAT-EF500_S)
This 3.8V, 3200mAh Li-ion cell replaces the original BAT-EF500_S pack in the BlueBird EF500R, EF500, EF501, and EF501R handheld barcode scanners. These units are workhorses in warehouse pick-and-pack lines, retail stockrooms, and logistics operations where scanning runs continuously across multiple shifts. At 12.16Wh, this pack matches the stock energy rating the device firmware expects.
- EF500 / EF501 platform fit: All four models — EF500, EF500R, EF501, EF501R — share the same battery bay geometry, contact pin layout, and BMS handshake protocol. The scanner's firmware reads cell authentication data from the pack; this replacement passes that handshake without triggering a battery-fault flag in the status bar.
- Bench tested on actual hardware: We cycled this pack through repeated scan-trigger bursts combined with active Wi-Fi polling — the inrush pattern that most stresses the BMS. Voltage held steady across burst sequences and the protection circuit responded correctly to simulated over-discharge without latching into a locked fault state.
- First-shift cradle protocol: After installing this pack, seat the scanner in its charging cradle and run a full charge cycle before pulling it into active use. The scan trigger draws its sharpest inrush current when the cell is near minimum charge — a full cell on the first shift prevents false BMS trips that can look like a faulty battery.
Cradle charging error on a brand-new pack
A new pack sitting at storage charge — typically around 3.6V — can confuse the EF500R's dock if the contact pads on either the battery or cradle carry oxidation or debris. The dock interprets high contact resistance as a pack fault and throws a charging error LED before the charge cycle even starts. Wipe the three gold contact pads on the battery face and the corresponding dock pins with a dry cloth, then reseat firmly. If the error clears within 10 seconds of reseating, contact resistance was the cause — not the cell.
Scanner dropping Wi-Fi mid-scan burst
The EF500R fires the imager and maintains a live Wi-Fi session simultaneously — both drawing current at the same instant during a rapid scan sequence. If the cell voltage sags below roughly 3.5V under that combined load, the radio stack drops its association before the battery protection circuit would otherwise intervene. This shows up as a disconnection error mid-shift rather than a low-battery warning. Charge the pack to full before a high-volume shift and check that the cradle contacts are clean so the pack reaches a true full-charge state at 4.2V.
