About this replacement

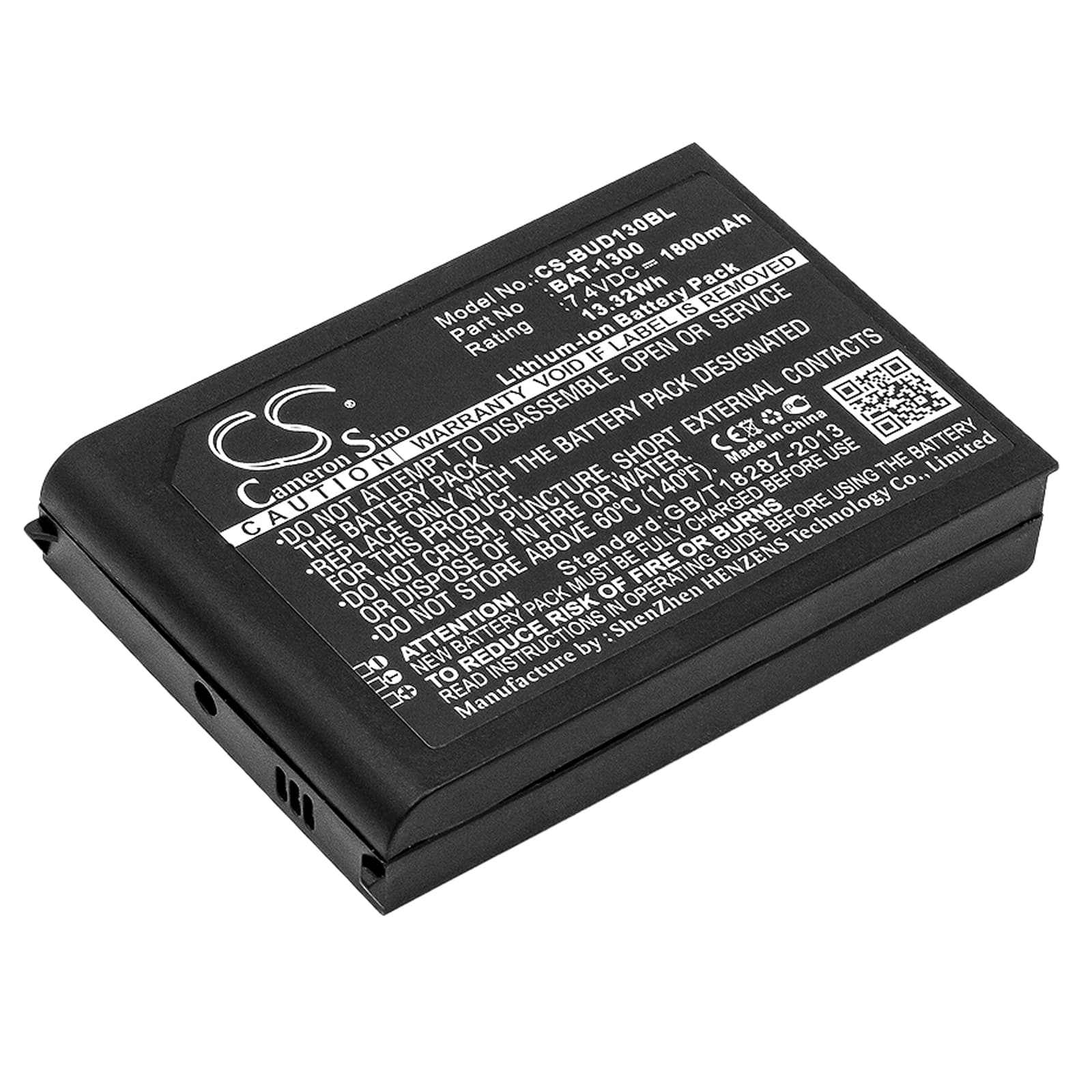

BlueBird Pidion BIP-1300 — 7.4V Li-ion Replacement Battery (BAT-1300)
This is a 7.4V 1800mAh Li-ion battery for the BlueBird Pidion BIP-1300 handheld barcode scanner. It fits units used in retail, warehouse, and logistics environments where the scanner runs pick-and-pack workflows across full shifts. Voltage and capacity match the OEM BAT-1300 specification.
- BIP-1300 platform fit: The BIP-1300 runs a single battery bay with a 7.4V nominal rail shared by the imager, wireless radio, and touchscreen. The BAT-1300 connector pinout and BMS handshake match the host device's charging circuit — no firmware prompt or unrecognised-battery warning on boot.
- Bench tested on actual hardware: We cycled this pack through repeated scan bursts and wireless polling loads on the bench. The BMS held the voltage rail steady through combined inrush events and cut off cleanly at the lower protection threshold without nuisance trips.
- First-shift preparation for the BIP-1300: Before deploying this pack on the floor, seat it in the BIP-1300 cradle and let it complete a full charge cycle. The scan trigger and radio together draw the highest inrush current when the cell is near minimum — a fully charged cell prevents a false BMS protection trip on the first trigger pull of the shift.
Cradle showing a charging error on a new BAT-1300 pack
The BIP-1300 cradle checks contact resistance before initiating the charge cycle. If the dock pins or the battery terminals have oxidation or debris from shipping, the cradle reads the resistance as a fault and displays a charging error rather than starting current flow. Remove the pack, wipe the four gold contacts on the battery with a dry cloth, and reseat it firmly until the cradle LED changes state. If the error persists, check the cradle dock pins for debris and clear them with a dry cotton swab.
Scanner loses wireless connection during a rapid scan burst
On the BIP-1300, the imager and the wireless radio draw simultaneously during a fast scan sequence — the imager fires, the radio transmits the decoded data, and both inrush events overlap within milliseconds. If the cell voltage sags below the radio's minimum operating threshold during that combined draw, the wireless stack drops the connection before the scan is confirmed. This is more likely near the end of a charge cycle when internal resistance is highest. Keeping the pack above 30% charge during high-frequency scanning prevents the sag from reaching the radio's cutoff point — check the battery indicator before starting a dense pick batch.
