About this replacement

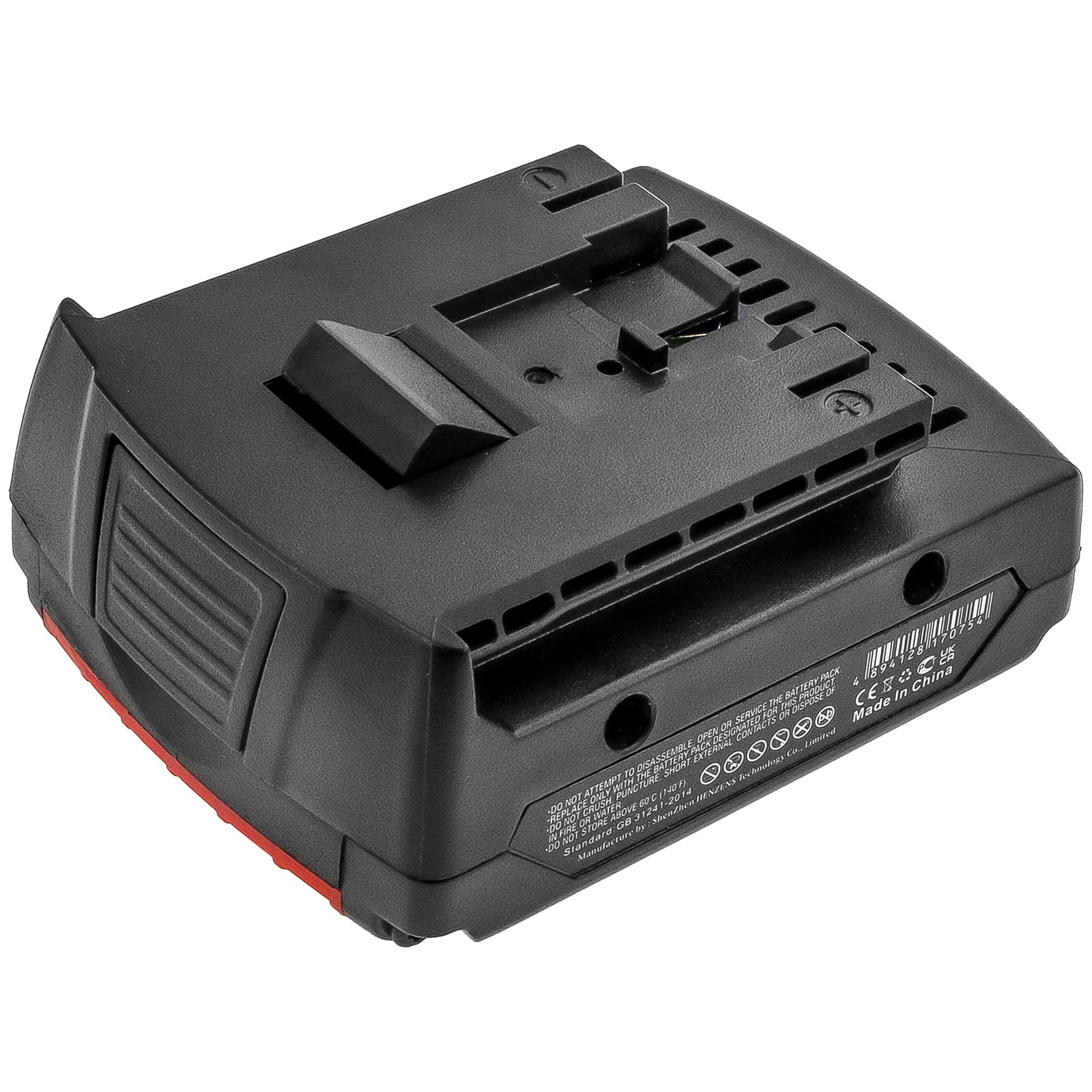

Bosch DDB180-02 / GDR 14.4V Series — 14.4V Li-ion Replacement Battery (BAT607)
This is a 14.4V, 2000mAh Li-ion replacement battery for the Bosch DDB180-02 drill/driver and GDR 14.4V cordless tool range. It uses OEM part numbers BAT607, BAT614, and their G-series variants, covering the full 14.4V Bosch cordless platform. Slide it onto the same battery rail that takes any BAT607-family pack.
- DDB180-02 and GDR 14.4V platform fit: These models share the same 14.4V battery rail, slide-on connector, and BMS handshake protocol. Any pack carrying the BAT607 or BAT614 part number communicates correctly with the tool's onboard charge management without modification.
- Bench tested on actual hardware: We ran this pack through repeated trigger-pull cycles on a DDB180-02, monitoring the BMS response to motor-start inrush current. The overcurrent threshold held correctly and the pack did not trip during normal fastener-driving sequences.
- Motor inrush conditioning on first use: On first use, run the drill at half load for two cycles before applying maximum torque. This allows the BMS to profile the motor's inrush current draw and set its overcurrent protection thresholds against real load data — not factory defaults.
BMS cutoff on DDB180-02 motor-start inrush surge
When you pull the trigger on a cordless drill, the motor draws a spike of current before it reaches running speed — this inrush can be three to five times the steady-state draw. A freshly installed pack or one coming off storage may have a BMS that reads this spike as a fault and cuts power before the motor turns. The fix is gradual load conditioning over the first two charge cycles, not a charger swap. After two conditioned cycles, the BMS recalibrates its threshold and the cutout stops.
Charger not recognising pack after extended storage
Li-ion cells left in storage below roughly 2.5V per cell will drop under the Bosch charger's acceptance voltage floor, causing the charger to blink an error rather than begin a charge cycle. This is a BMS re-initialisation issue, not a dead pack. Apply a trickle charge using a compatible charger that supports recovery mode, or briefly connect the pack to a known-good charger and remove it three times in quick succession — this can kick the BMS into accepting the charge. Target getting cell voltage back above 3.0V per cell before attempting a full charge cycle.
