About this replacement

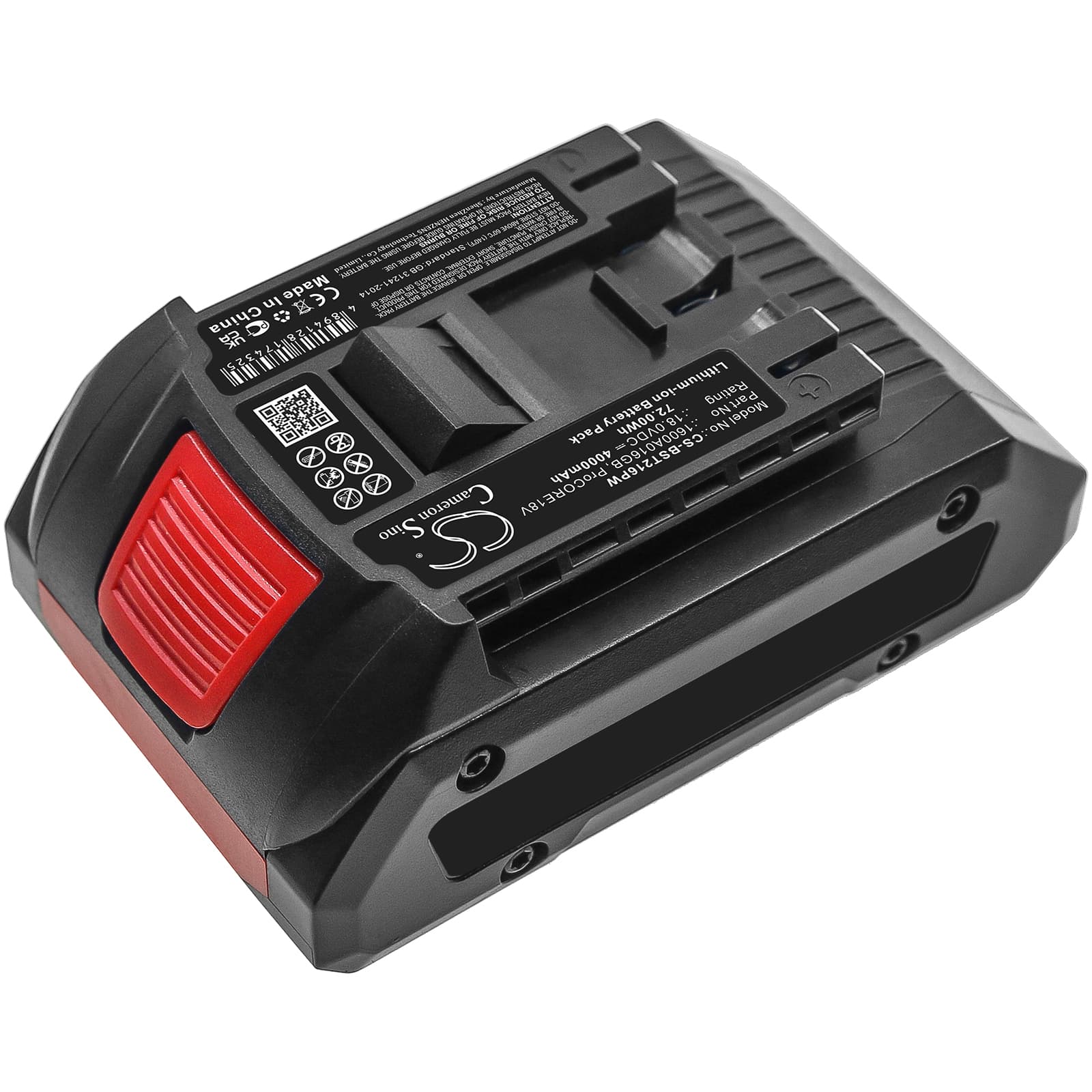

Bosch GDS 18V / GCM 18V-216 — 18V Li-ion 4.0Ah Replacement Battery (1600A016GB)
This is an 18V Li-ion battery rated at 4000mAh (72Wh), built to the ProCORE18V form factor. It fits the Bosch GDS 18V impact driver along with the GCM 18V-216, GCM 18V-305 GDC, GTS 18V-216, and 18 additional Bosch 18V platform tools. Slide it onto any compatible Bosch 18V interface and the BMS handshake completes immediately.
- Bosch 18V platform compatibility: All listed models share the same 18V battery rail, slide-lock connector, and BMS communication protocol. The pack's onboard management chip speaks the same handshake as the original 1600A016GB, so the tool's protection circuits recognise it without recalibration.
- Bench tested on actual hardware: We cycled this pack through repeated motor-start inrush events on an 18V impact driver. The BMS held the overcurrent threshold steady across all test cycles and did not trigger a false trip on full-torque trigger pulls.
- Break-in load protocol: On first use, run the tool at half load for two cycles before maximum torque applications. This lets the BMS profile the motor's inrush current draw before locking its overcurrent protection thresholds — skipping this can cause nuisance trips on the first heavy fastening run.
BMS cutoff on motor-start inrush surge across GDS and GCM models
The GDS 18V impact driver and GCM 18V-216 mitre saw both draw a short, sharp current spike the moment the trigger is pulled — the motor start inrush. On a degraded or freshly installed pack, the BMS can read this spike as an overcurrent fault and cut power before the tool reaches operating speed. The 1600A016GB cell configuration is rated to handle this surge, but the BMS needs two or three load cycles to set its threshold accurately. If cutouts happen only on the first trigger pull and then clear, the BMS is still profiling — run the break-in protocol above. If cutouts persist after three cycles, check rail contacts for oxidation.
Charger showing a blinking red light on a new pack after storage
A Bosch 18V charger will blink red and refuse to charge if the pack's cell voltage has dropped below the charger's acceptance threshold — typically around 12V on an 18V pack. This happens after extended shelf storage and is not a sign the cells are dead. Force the pack into a brief load first: fit it to the tool and pull the trigger for two seconds. That draws the remaining charge through the BMS, sometimes waking it enough to bring cell voltage back above the charger floor. Retry the charger immediately after — if it accepts the pack, charge to full and check cell balance. If it still blinks red after three wake attempts, check individual cell group voltage; any group reading below 3.0V per cell needs replacing.
