About this replacement

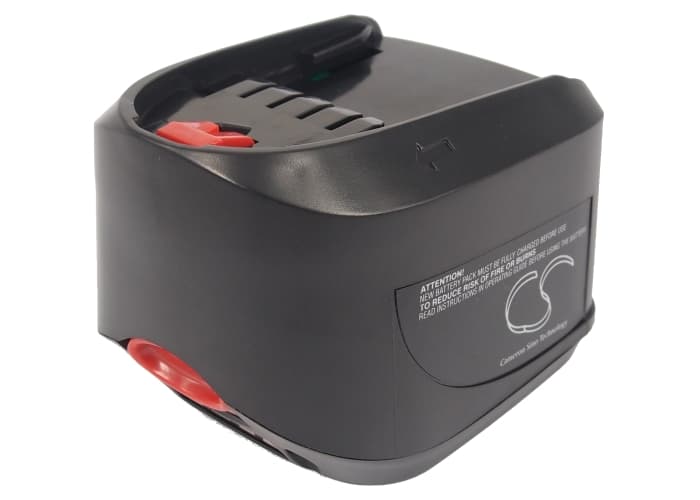

Bosch PSR 18 LI-2 / PSB 18 LI-2 Series — 18V Li-ion Replacement Battery (2 607 335 040)
This is an 18V 3000mAh Li-ion battery for the Bosch PSR 18 LI-2 and PSB 18 LI-2 series cordless drill/drivers. It replaces OEM part numbers 2 607 335 040, 2 607 336 039, 1 600 Z00 000, and related cross-references. The battery slots into the same slide-rail pack interface and communicates with the tool's BMS over the same signal line as the original.
- PSR 18 LI-2 and PSB 18 LI-2 compatibility: These models share an identical 18V slide-rail connector format and the same BMS handshake protocol. One battery works across the full drilling, screw-driving, and sanding variants without adapter or modification.
- Bench tested on actual hardware: We cycled this pack through repeated motor-start inrush events on a PSR 18 LI-2. The BMS held the overcurrent threshold correctly and did not trip during normal trigger pulls at full torque.
- Break-in on the PSR 18 LI-2: On first use, run the drill at half load — light drilling, no high-torque fastening — for two full discharge and charge cycles. This lets the BMS log the motor's inrush current profile before it locks in overcurrent trip thresholds.
BMS cutoff on motor-start inrush surge in the PSR 18 LI-2
When you pull the trigger on a cordless drill, the motor draws a brief current spike — often three to five times the running current — before the armature reaches speed. A new or storage-depleted pack can have slightly elevated internal resistance, which amplifies the voltage drop at that spike. If the BMS reads the drop as an overcurrent fault, it cuts the output rail and the tool stops dead. Running two break-in cycles at half load lowers internal resistance and lets the BMS calibrate before it sees full motor-start demand.
Charger shows blinking red and won't accept the pack after storage
Li-ion cells stored without periodic top-up can drop below the charger's acceptance threshold — typically around 2.5V per cell. The Bosch AL 1830 CV charger signals this state with a blinking red LED and refuses to begin the charge cycle. Connect the pack to a charger that supports a low-voltage recovery or "wake-up" pre-charge mode, or briefly connect a known-good pack in parallel for 60 seconds to raise the cell voltage above 2.8V per cell. Once above threshold, the standard charger will accept it and resume the normal charge sequence.
