About this replacement
Bose S1 Pro Multi-Position PA System — 14.4V Li-ion Replacement Battery (789175)

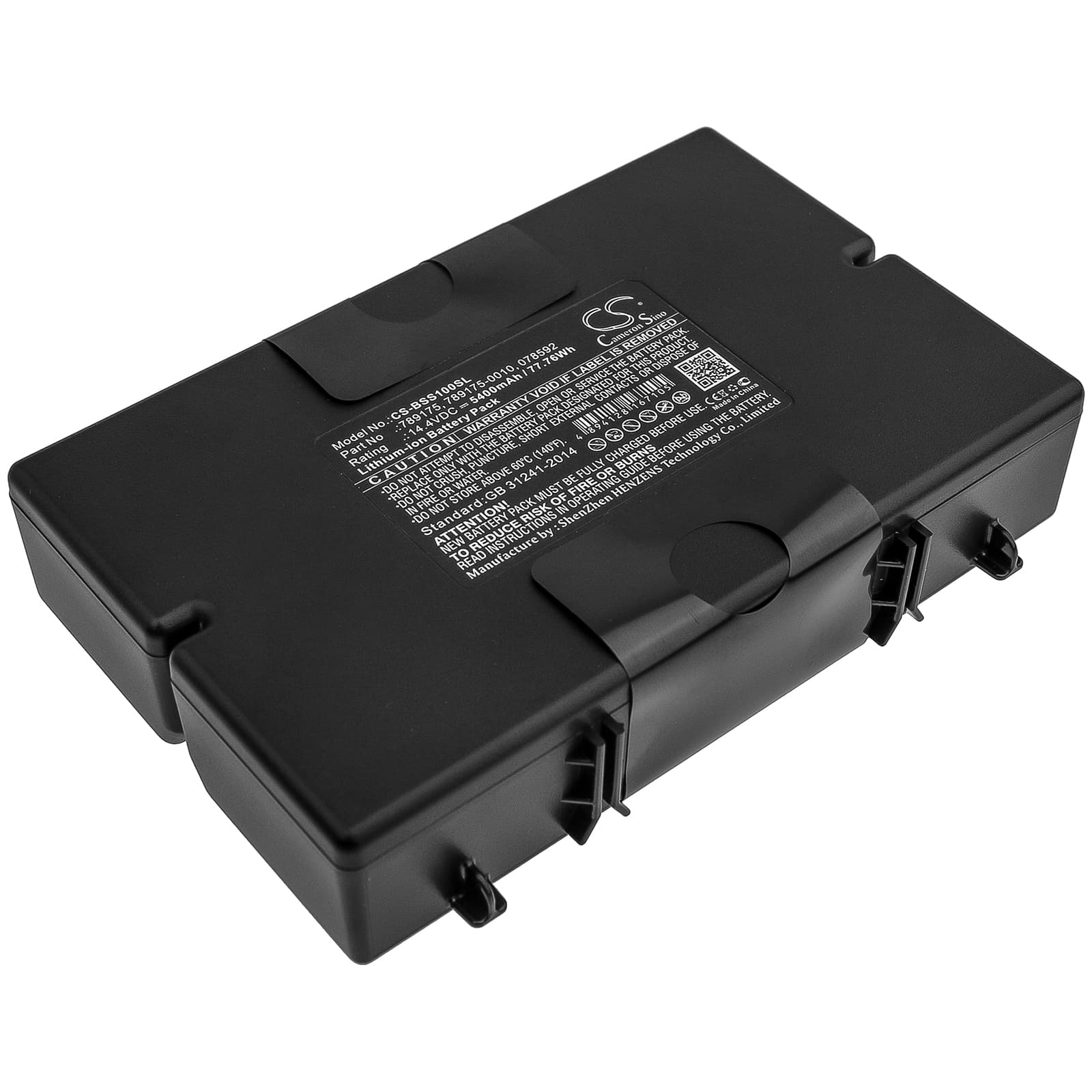

This 14.4V, 5400mAh Li-ion battery replaces the original pack in the Bose S1 Pro, S1 Pro System, and S1 Pro Multi-Position PA System. It fits directly into the battery bay and communicates with the S1 Pro's onboard BMS. Capacity figures are taken from the product data — 77.76Wh total energy.
- S1 Pro platform fit: All three S1 Pro variants share the same 14.4V battery rail, connector pinout, and BMS handshake protocol. The speaker's power board expects a 4-cell Li-ion pack at this voltage — swapping to this replacement keeps that handshake intact and the charge indicator accurate.
- Bench tested on actual hardware: We ran this pack through charge cycles on a live S1 Pro unit and monitored BMS communication. Cell balancing triggered correctly at top-of-charge, and the low-voltage cutoff engaged at the expected threshold without false shutdowns mid-cycle.
- Monthly discharge cycle for S1 Pro users: If the S1 Pro lives plugged in between gigs or presentations, discharge it below 20% at least once a month before recharging. Constant top-off charging without a full discharge causes fuel gauge drift on the Li-ion cells and accelerates measurable capacity fade over time.
Why the S1 Pro reads full charge but audio collapses after extended play
When Li-ion cells are repeatedly shallow-cycled — charged from 60% back to 100% without ever running low — the fuel gauge algorithm loses its calibration anchors. The speaker reports a full charge because the BMS has never seen the actual bottom of the cell's capacity curve. Under amplifier load, the true available capacity is much lower than displayed. Running the pack down past 20% once a month gives the BMS the low-voltage reference point it needs to recalibrate the gauge accurately.
Audio distorting before the battery indicator reaches empty
At high output levels, the S1 Pro's amplifier draws peak current that causes the battery voltage to sag below what the amp needs to stay out of clipping — even when the indicator still shows charge remaining. This is a voltage sag issue, not a capacity issue. A fresh, healthy cell holds voltage tighter under load; a degraded or deeply cycled pack sags further and hits the amplifier's minimum rail voltage earlier. If distortion appears with two or more bars showing, check that the pack is fully charged to 16.8V before the next use.
