About this replacement

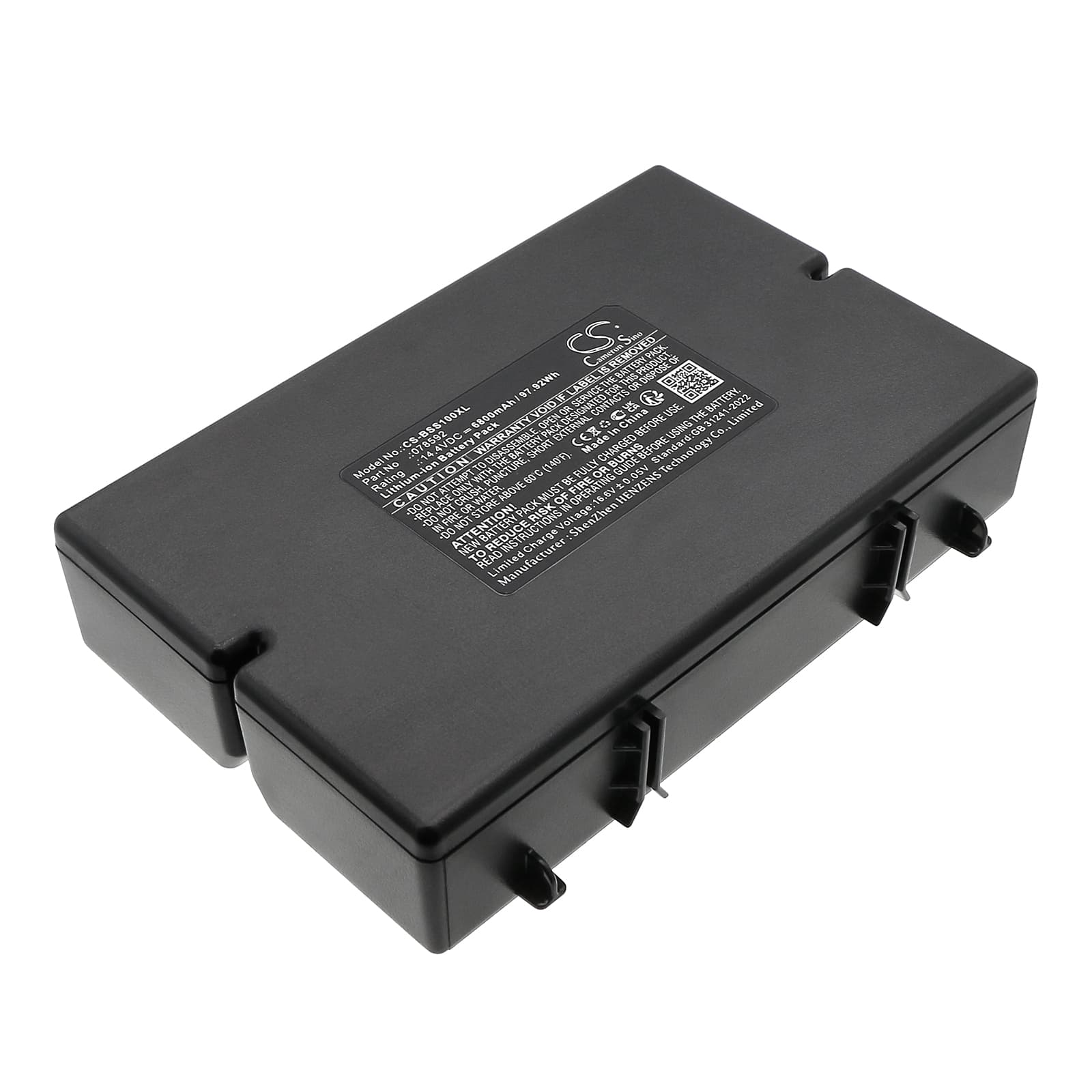

Bose S1 Pro Multi-Position PA System — 14.4V Li-ion Replacement Battery (789175)
This 14.4V 6800mAh Li-ion battery replaces OEM part 789175 in the Bose S1 Pro, S1 Pro System, and S1 Pro Multi-Position PA System. It restores full portable operation when the original cell can no longer hold a usable charge. At 97.92Wh, it matches the energy capacity the S1 Pro amplifier expects from a healthy pack.
- S1 Pro platform fit: All three S1 Pro variants — S1 Pro, S1 Pro System, and S1 Pro Multi-Position PA System — share the same battery bay geometry, connector pinout, and BMS communication protocol. One battery fits all three without modification.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the S1 Pro. The BMS handshook correctly, the fuel gauge reported accurately from 100% down to the low-battery cutoff, and the amplifier showed no mid-cycle shutdown.
- Monthly discharge cycle on the S1 Pro: If the S1 Pro sits on a desk and gets topped off constantly before dropping below 50%, the fuel gauge drifts and capacity fades faster than normal cycling. Let the pack run below 20% at least once a month before recharging to keep the cell calibration accurate.
Audio distorting before the S1 Pro battery indicator reaches empty
When the pack is aged or a replacement cell has higher internal resistance than the original, voltage sags under the combined amplifier and radio draw before the battery gauge triggers the low-battery warning. The amplifier hits its minimum rail voltage and clips the signal first. This produces audible distortion — usually at higher volumes — while the indicator still shows one or two bars. Check resting voltage at that point: if it reads below 13.5V under load, the cell is sagging too hard and needs replacement.
S1 Pro showing full charge bars but audio drops out after extended play
This is fuel gauge drift — common in packs that have been shallow-cycled for months without a full discharge. The cell's actual state of charge diverges from what the BMS reports, so the indicator reads full while the usable capacity is significantly lower. A full discharge to the S1 Pro's automatic cutoff, followed by an uninterrupted charge to 100%, forces the BMS to recalibrate its charge estimation. If the symptom persists after two full cycles, the cell has degraded past recovery and replacement is the correct fix.
