About this replacement

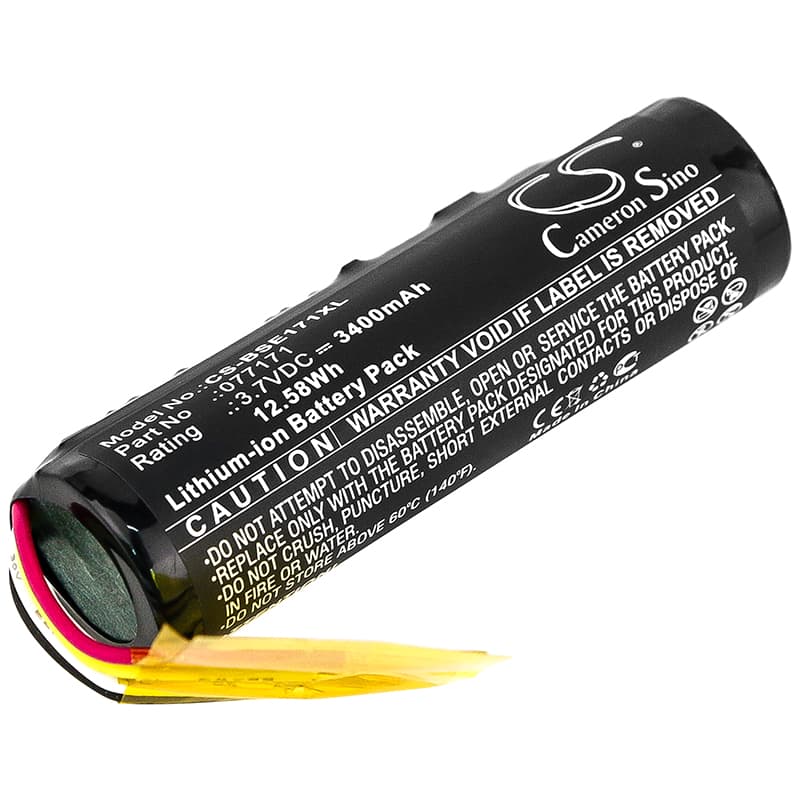

Bose SoundLink Micro — 3.7V Li-ion Replacement Battery (077171)
This is a 3.7V, 3400mAh Li-ion replacement battery for the Bose SoundLink Micro portable Bluetooth speaker (model 423816). It replaces OEM part number 077171 when the original cell can no longer hold a useful charge. Restores the speaker's wireless, cable-free operation.
- SoundLink Micro and 423816 compatibility: Both device references — SoundLink Micro and model number 423816 — share the same physical battery bay, connector pinout, and BMS handshake protocol. The 077171 cell is the only configuration Bose used across the full production run of this speaker.
- Bench tested on actual hardware: We cycled this battery through charge and discharge on a SoundLink Micro unit, confirming the BMS accepted the cell without error flags, the charge LED behaved normally through all four indicator stages, and the protection circuit tripped cleanly at the low-voltage cutoff threshold.
- Monthly discharge cycle for SoundLink Micro users: This speaker spends most of its life sitting on a desk or shelf between uses, topped off whenever it dips below half. That constant shallow cycling causes fuel gauge drift — the speaker's charge indicator drifts out of sync with actual cell state. Drain it fully to below 20% at least once a month before recharging to recalibrate the gauge.
Why the SoundLink Micro audio distorts before the battery indicator reaches empty
At high volume, the amplifier draws a spike of current that the Li-ion cell cannot supply cleanly once voltage sags below roughly 3.5V. The amplifier clips under that sag — you hear distortion before the battery indicator has visually reached the last LED. The indicator lags because the fuel gauge averages voltage over time, not peak draw. Turning volume down one or two steps removes the spike and the distortion clears immediately.
SoundLink Micro won't wake from USB-C after sitting uncharged for weeks
A deeply discharged Li-ion cell can drop below the minimum voltage threshold that USB-C Power Delivery will negotiate against — typically under 2.5V — and the charger sees no handshake, so it delivers nothing. The speaker appears completely dead. Connect it to a 5V USB-A charger or a basic USB-C wall adapter without PD negotiation for 15–20 minutes to trickle enough charge into the cell to bring it back above the PD acceptance floor, then switch to your normal cable. If the charge LED still does not illuminate after 30 minutes on a basic adapter, the cell has dropped below recoverable voltage.
