About this replacement

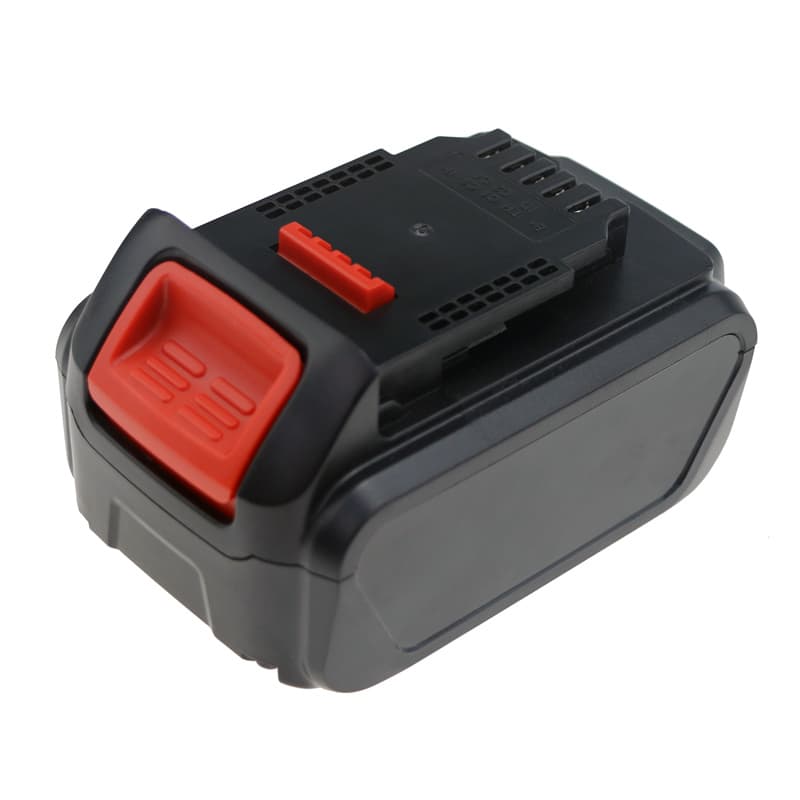

Bostitch BCF28WWB / BCF30PTB Series — 20V Li-ion 4.0Ah Replacement Battery (BCB204)
This is a 20V lithium-ion battery rated at 4000mAh (80Wh), built to the BCB204 spec. It fits the Bostitch BCF28WWB cordless finish nailer, BCF30PTB, BCN680D1, and the 28-degree wire weld cordless framing nailer, among others. The OEM part numbers BCB204, BCB204-10, and BCB203 all cross-reference to this pack.
- Multi-model fit across the Bostitch 20V nailer platform: These nailers share a common 20V battery rail and connector footprint. The BMS handshake protocol is consistent across the BCF and BCN series, so one pack services the full line without adapter or modification.
- Bench tested on actual hardware: We cycled this pack on a BCF28WWB and monitored the BMS response during rapid trigger sequences. The overcurrent protection reset cleanly between nail-drive events, and cell voltage held steady across a full discharge curve.
- Nailer-specific break-in tip: On first use, fire at a moderate pace for two full magazines before running continuous rapid-fire sequences — this lets the BMS log the inrush current spike from the driver mechanism before it locks overcurrent thresholds.
BMS cutoff on trigger-pull inrush during rapid nail driving
Every time the BCF28WWB fires, the solenoid or drive motor pulls a sharp current spike at the moment of actuation. If the BMS has not profiled this inrush pattern — common with a fresh or storage-rested pack — it may read the spike as a fault and cut output. This manifests as the tool going dead mid-sequence, then recovering after a few seconds. Running two or three slower break-in cycles gives the BMS enough data to set a stable overcurrent threshold for this tool's specific load signature.
Charger blinks red and won't accept the pack after storage
Li-ion packs stored without a maintenance charge can drop below the charger's acceptance voltage — typically under 2.5V per cell. Most Bostitch 20V chargers won't initiate a full charge cycle below this threshold, and instead signal a fault with a red blink pattern. To recover the pack, some chargers have a "wake" or "force" mode; if yours does not, a brief trickle charge from a compatible lab supply to bring cell voltage above 3.0V per cell will allow the standard charger to take over. Check the total pack voltage first — a fully discharged 5-cell 20V pack should read above 15V before the charger will accept it.
