About this replacement

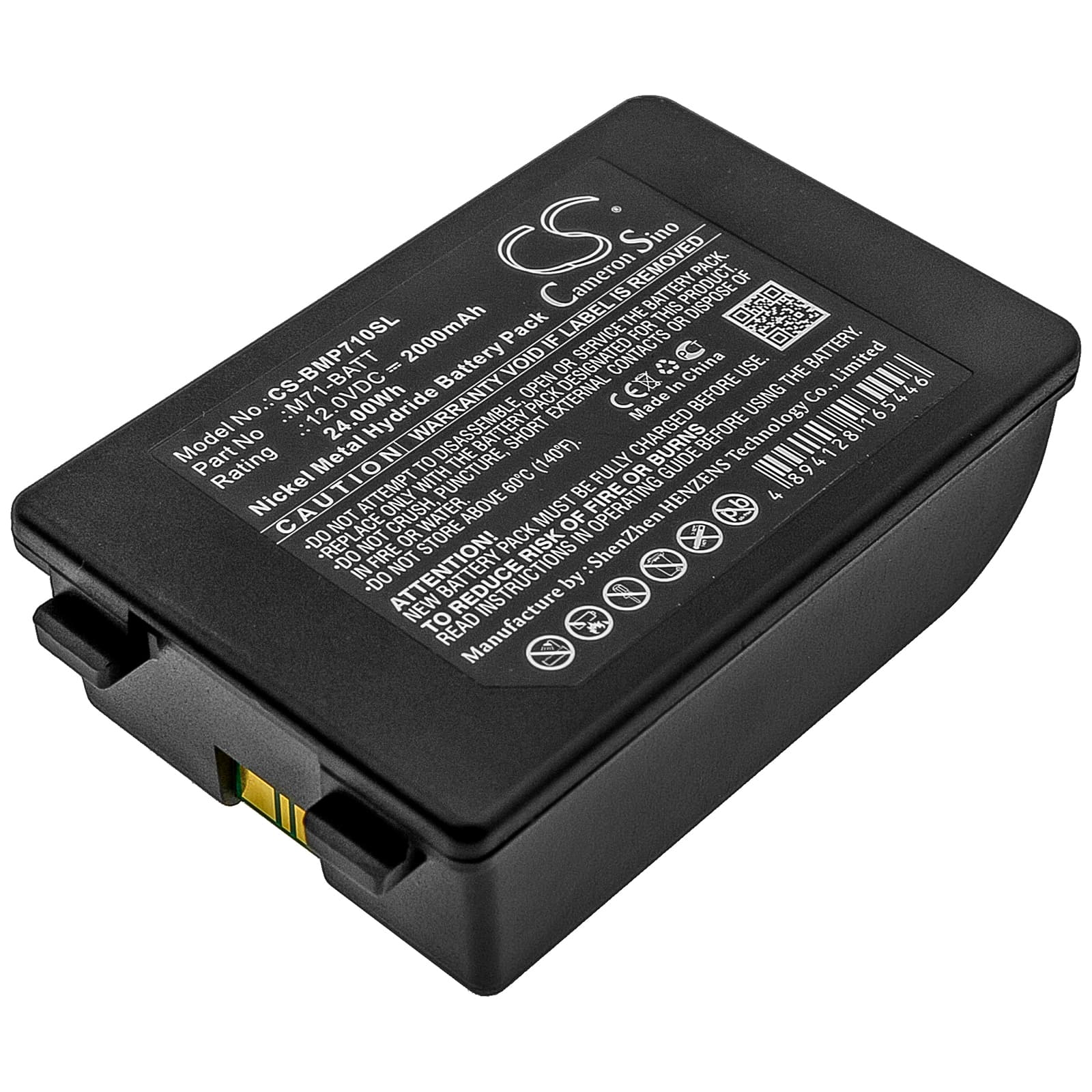

Brady BMP71 — 12V Ni-MH Replacement Battery (M71-BATT)
This 12V 2000mAh Ni-MH battery replaces the OEM M71-BATT in the Brady BMP71 portable label printer. It fits the BMP71 handheld thermal printer used in industrial, warehouse, and facility management environments. Voltage and capacity match factory spec exactly.
- BMP71 platform fit: The BMP71 uses a 12V Ni-MH pack with a specific connector and BMS handshake tied to the thermal print head and paper feed motor. This replacement matches that voltage rail and connector so the printer recognises the pack at startup without error flags.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on BMP71 hardware. The BMS held cutoff thresholds correctly under both thermal head draw and simultaneous paper feed motor load — no false low-battery shutdowns observed.
- Post-install print calibration: After fitting this battery, charge it fully and run five test label prints before field deployment. The BMP71's paper feed motor calibrates current draw against the BMS profile during initial print cycles — skipping this step can cause the printer to underestimate available charge and shut down early.
Why the BMP71 refuses to print after sitting unused for weeks
Ni-MH cells self-discharge faster than lithium chemistry — a BMP71 left on the shelf for three to four weeks can drop below the minimum motor drive voltage the BMS allows. At that point the printer powers on but will not initiate a print job because the BMS blocks current to the thermal head and feed motor. Plug the printer into its charger and let it reach a full charge before attempting to print. If the pack has dropped below 9V, some chargers will not initiate a charge cycle — in that case, a 30-minute trickle charge at low current first will bring the cells back into the normal charge acceptance range.
Print darkness fading or becoming uneven mid-label run
The BMP71 thermal head requires a stable voltage to maintain consistent head temperature across a label run. As battery charge drops, voltage sags under load and the head runs cooler than the set point — this shows up as faded text or uneven darkness across the label. It is not a head fault and it does not mean the battery is defective. Recharge the pack and the print quality returns. If fading starts at what appears to be a high charge level, the cells may have developed capacity fade — check the battery indicator and confirm the pack is reaching at least 13.2V at full charge before use.
