About this replacement

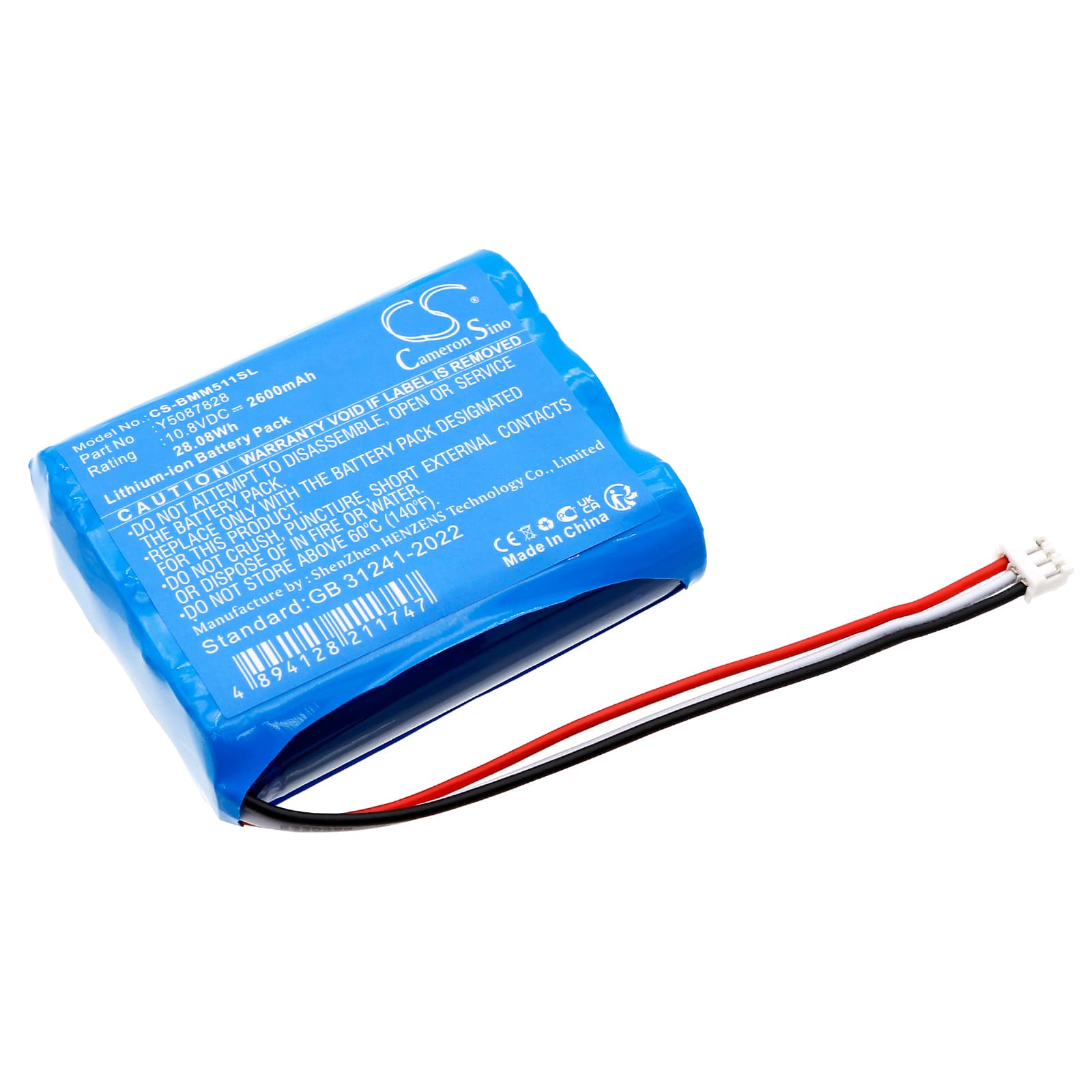

Brady M511 — 10.8V Li-ion Replacement Battery (Y5087828)
This is a 10.8V, 2600mAh (28.08Wh) lithium-ion replacement battery for the Brady M511 portable label printer. It slots directly into the M511 handset and restores full power to the thermal print head, paper feed motor, and wireless radio. Capacity figures are taken from product data, not third-party estimates.
- M511 platform fit: The M511 uses a single-cell-group 10.8V pack with a multi-pin connector that carries both charge and BMS communication lines. This replacement matches that connector layout and voltage rail so the printer firmware recognises the pack on first boot.
- Bench tested on actual hardware: We cycled this pack through the M511 charge circuit and confirmed the BMS handshake completes without fault codes. The thermal head and feed motor both drew current within expected limits across a full charge-to-cutoff cycle.
- First-deployment print sequence: After installing this battery, charge it fully and then run five consecutive label prints before putting the printer into service. The feed motor and thermal head together set a current baseline the BMS uses to calibrate load thresholds — skipping this step can cause premature low-battery warnings mid-job.
Why the M511 won't wake after sitting unused for weeks
The M511 BMS has a deep-discharge protection threshold around 9.0V. If the pack self-discharges below that level during storage, the BMS locks the output rail and the printer appears completely dead — no power LED, no response to the power button. A standard wall charge won't break the lock because the charger handshake requires a minimum voltage response from the battery. Connect the printer to the Brady AC adapter and leave it for 20–30 minutes without pressing anything; the charger's trickle stage will bring the cell above the BMS re-enable threshold, after which normal charging resumes.
Bluetooth dropping mid-job on the M511
The M511's Bluetooth radio pulls a brief current spike each time it transmits a packet. When the battery is below roughly 10.2V under load, that spike causes a transient voltage sag that trips the radio's power supervisor, dropping the connection. This looks like a wireless or app fault but is a battery voltage issue. Charge the pack to full before a long print run, and if drops persist on a battery that reads full, the cell capacity has faded enough that the sag occurs even at nominal charge — replace the pack.
