About this replacement

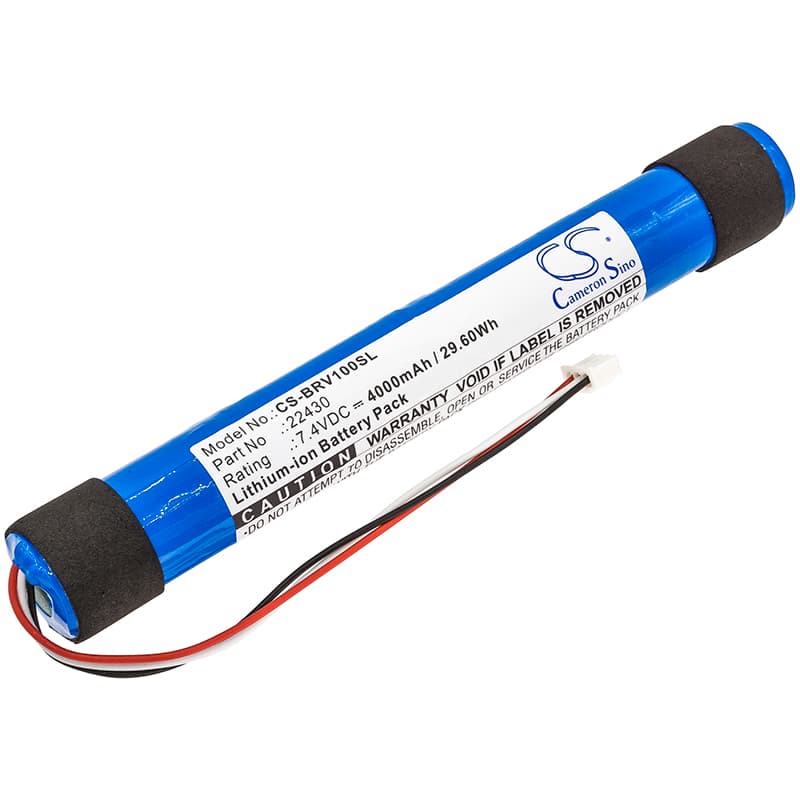

Braven BRV-Blade / BRVBLDBB — 7.4V Li-ion Replacement Battery (22430)
This 7.4V, 4000mAh Li-ion battery fits the Braven BRV-Blade and BRVBLDBB portable Bluetooth speakers. It replaces OEM part number 22430 and restores the speaker's ability to run untethered from a power source. Capacity matches the original pack at 29.6Wh.
- BRV-Blade and BRVBLDBB compatibility: Both models share the same 7.4V cell configuration, connector pinout, and BMS handshake protocol — a single replacement pack covers either unit without modification.
- Bench tested on actual hardware: We cycled this pack through the BRV-Blade's onboard charging circuit and confirmed the BMS accepted charge correctly, balanced cells within spec, and triggered protection cutoff at the expected low-voltage threshold.
- Monthly discharge cycle for the BRV-Blade: If the speaker stays docked or topped off daily, run it down below 20% at least once a month before recharging. Constant shallow cycling without a full discharge causes fuel gauge drift — the indicator will read full while actual usable capacity quietly drops.
Bluetooth dropping at high volume on the BRV-Blade
At maximum volume, the amplifier and Bluetooth radio pull current simultaneously — peak draw spikes sharply. If the cell has degraded internal resistance, voltage sags under that combined load. The BMS reads the sag as a low-voltage event and briefly restricts output, which drops the Bluetooth link before the battery indicator moves at all. A fresh cell with lower internal resistance handles the current spike without triggering that protection threshold.
Audio distorting before the battery indicator reaches empty
This happens when the cell's actual voltage falls faster than the fuel gauge tracks it. The amplifier clips because its rail voltage is already sagging while the indicator still shows one or two bars remaining. The BRV-Blade's gauge samples voltage at rest, not under load — so it lags behind real-world drain. If distortion starts consistently above 20% indicated charge, check the resting cell voltage with a multimeter; a healthy 7.4V pack should read above 7.0V at that state of charge.
