About this replacement

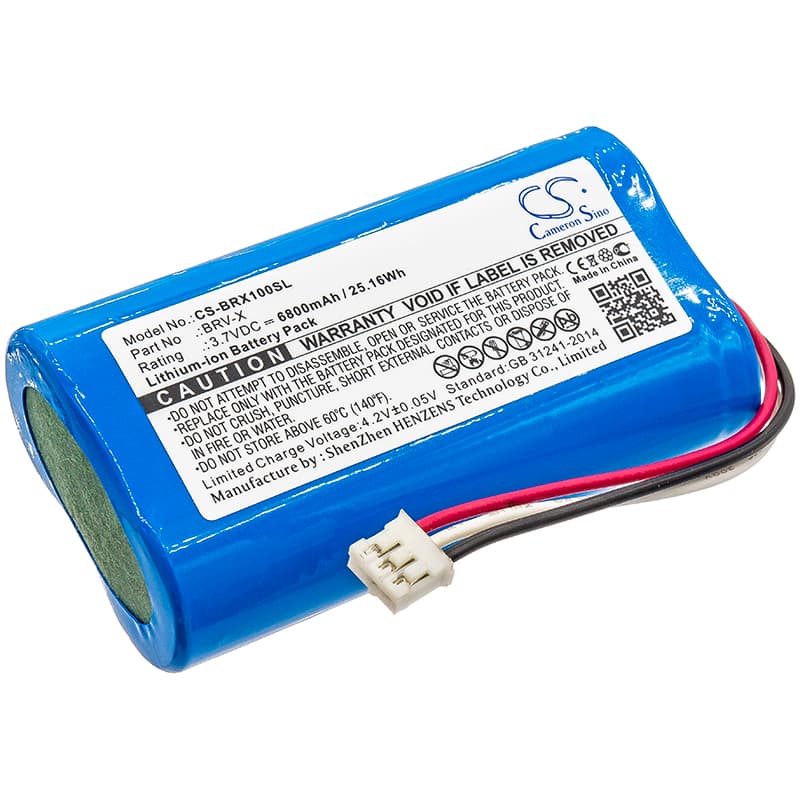

Braven BRV-X / BRVXBBB — 3.7V Li-ion Replacement Battery (BRV-X)
This 3.7V 6800mAh (25.16Wh) Li-ion cell replaces the original battery in the Braven BRV-X and BRVXBBB portable Bluetooth speakers. Both models share the same battery footprint, connector, and BMS handshake. Dimensions are 66.60 × 37.00 × 18.60mm — measure your existing cell before ordering if you are unsure.
- BRV-X and BRVXBBB compatibility: Both models run the same 3.7V cell with an identical connector pinout and BMS communication protocol. Swapping between variants does not require firmware changes or recalibration — the protection circuit reads the same.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the BRV-X platform, confirmed BMS handshake at power-on, and verified the protection circuit tripped correctly at low-voltage cutoff without causing a hard lock-out.
- Monthly discharge cycle for BRV-X users: The BRV-X spends most of its life sitting charged on a desk or shelf. Run it down below 20% at least once a month before recharging — constant top-off charging without a full discharge causes fuel gauge drift and accelerates capacity fade in the Li-ion cell.
Why the BRV-X shows full charge but audio drops after an hour
A degraded cell loses capacity from the inside while the fuel gauge still reads what it was calibrated against. The speaker's charge indicator is voltage-based — it reports what the cell looks like at rest, not how much usable energy is left under amplifier load. Once the cell ages, voltage sags quickly under the combined draw of the amp and Bluetooth radio, triggering low-voltage protection well before the indicator hits empty. Replacing the cell resets this mismatch; run one full charge-to-discharge cycle after installation to let the gauge recalibrate.
Audio distorting before the battery indicator reaches empty
This is amplifier clipping under voltage sag — not a speaker fault. As the cell discharges, internal resistance rises and voltage drops under the amplifier's current draw, particularly at high volume. The amplifier hits its supply floor and clips the audio waveform before the BMS trips. Drop the volume by 20–30% when you hear distortion and charge the pack; if distortion starts above 40% indicated charge, the cell's internal resistance has risen too far and the battery needs replacement.
