About this replacement

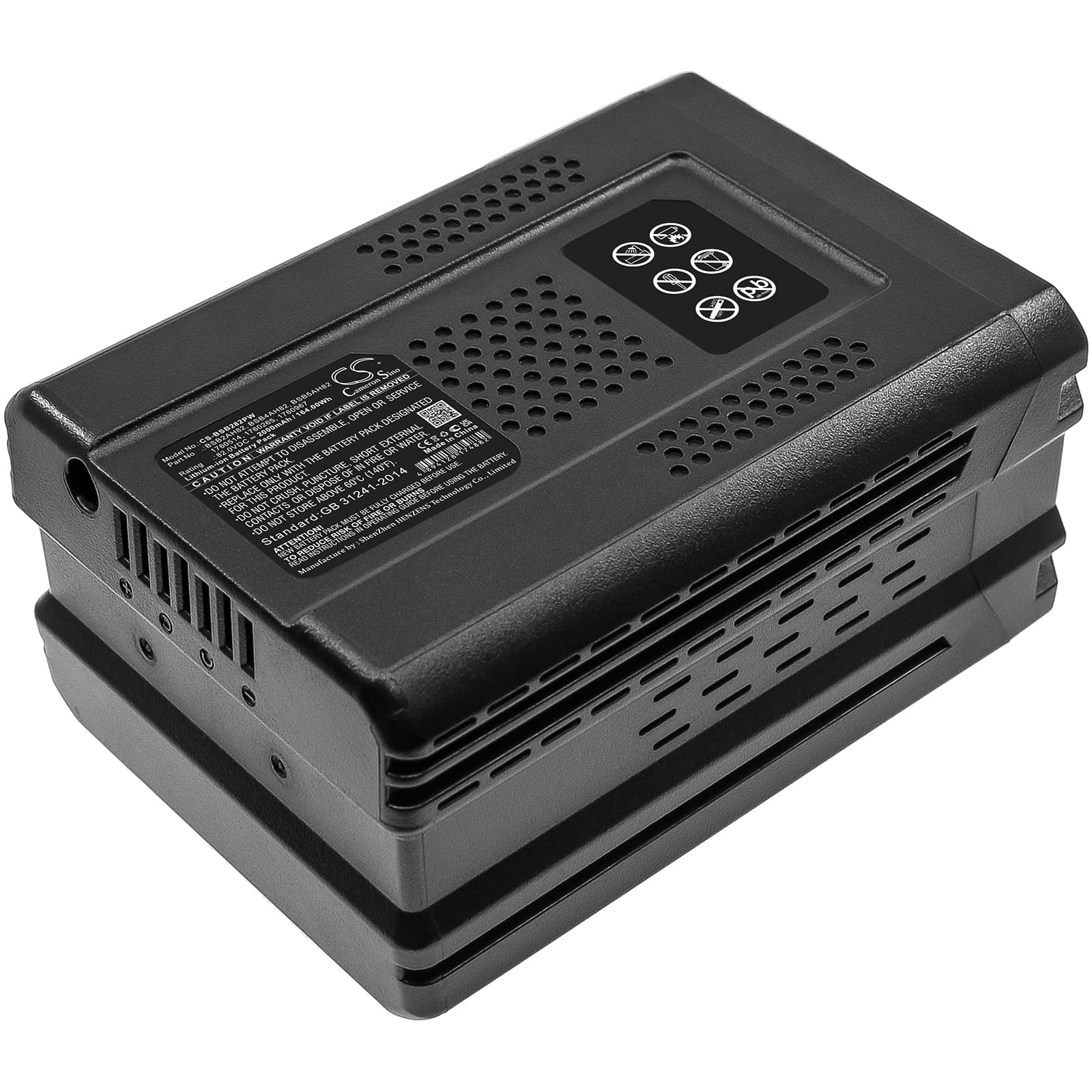

Briggs & Stratton Snapper XD Cordless Lawn & Garden Tools — 82V Li-ion Replacement Battery
This 82V, 2000mAh (164Wh) lithium-ion pack fits the Snapper XD cordless outdoor power lineup — including lawn mowers, string trimmers, leaf blowers, hedge trimmers, and chainsaws. All listed part numbers (BSB2AH82, BSB4AH82, BSB5AH82, 1760514, 1760265, 1760967) draw from the same 82V battery platform Briggs & Stratton built across the XD tool family.
- Snapper XD 82V platform compatibility: These models share a common 82V rail, connector format, and BMS communication protocol — that's why one pack services mowers, blowers, trimmers, and carts within the same lineup.
- Bench tested on actual hardware: We ran full charge and discharge cycles — the BMS held voltage steady under load and cut off cleanly at the low-voltage threshold without triggering a fault on the tool.
- First charge after storage: If the pack has been sitting, run a full charge before first use — Li-ion cells at 82V benefit from a complete charge cycle to balance cells and establish an accurate capacity read on the tool's indicator.
Why capacity matters differently at 82V
At 82V, watt-hours matter more than amp-hours alone. This pack delivers 164Wh — enough to power high-draw tools like the self-propelled mower or utility cart, though heavier tasks will draw down a 2.0Ah pack faster than the larger 4.0Ah or 5.0Ah options in the XD lineup. Match the pack size to the tool's typical load: blowers and trimmers work well here; extended mowing sessions may call for the higher-capacity packs.
Tool powers on briefly then shuts off — BMS over-discharge protection
If the Snapper XD tool starts then cuts out within seconds, the pack's BMS has likely tripped over-discharge protection from a deeply depleted cell. This happens when a battery sits unused for several months. Put it on the BSRC82 charger for a full cycle before retrying — most packs recover fully. If the charger shows a fault light and won't initiate, the cells have dropped below the recovery threshold and the pack needs replacement.
