About this replacement

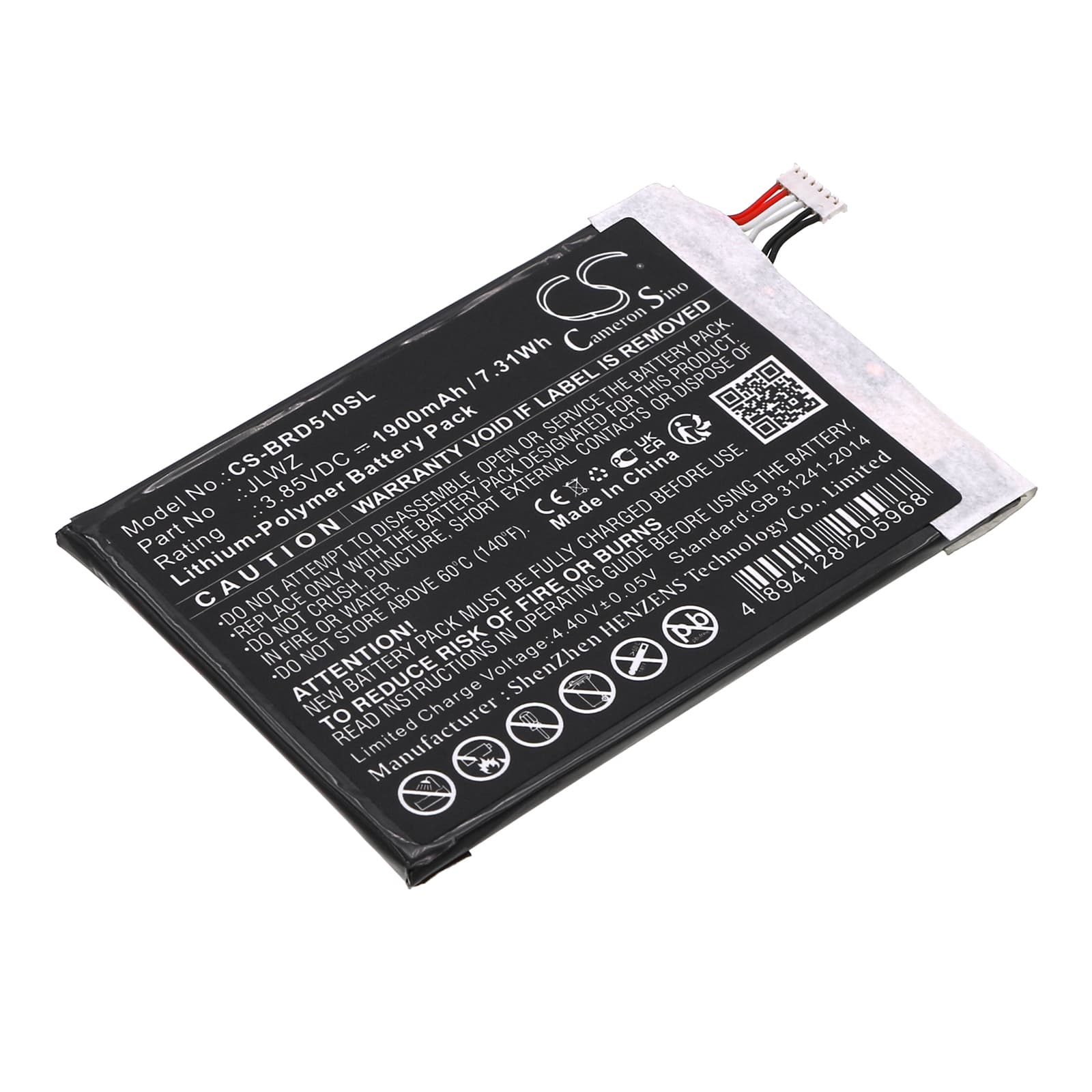

Brondi 510 S HD — 3.85V Li-Polymer Replacement Battery (JLWZ)
This is a 3.85V, 1900mAh lithium-polymer battery for the Brondi 510 S HD smartphone. It replaces the original JLWZ cell when the existing battery no longer holds a charge or has physically swollen. Rated at 7.32Wh, it restores power to the display, modem, and processor.
- Brondi 510 S HD fitment: The 510 S HD uses a fixed connector pinout and a battery cavity sized at 78.70 × 54.70 × 3.60mm. This cell matches both the physical envelope and the BMS handshake expected by the phone's charge IC — a mismatch on either point causes charge refusal.
- Bench tested on actual hardware: We cycled this cell through full charge and load discharge on the 510 S HD platform. The BMS accepted the cell on first connection, charge termination triggered correctly at 4.35V, and the fuel gauge IC tracked state-of-charge without error flags.
- First-cycle fast charge behaviour: On first use after installation, disable fast charging and run one full discharge-charge cycle at standard rate. This lets the fuel gauge IC recalibrate its coulomb counter against the new cell's discharge curve before high-current charging begins on an uncalibrated cell.
Why the 510 S HD reports the wrong battery percentage after a cell swap
The fuel gauge IC on the 510 S HD stores a learned discharge curve from the original cell. When a new cell is installed, that stored curve no longer matches the actual cell chemistry, so the percentage reading drifts — often showing full capacity until a sharp drop near the end. The fix is one complete discharge to automatic shutdown followed by a full uninterrupted charge. After that cycle, the coulomb counter resets its reference points against the new cell and percentage reporting stabilises.
Sudden shutdown at 20–30% remaining on the replacement cell
This happens when the cell voltage drops below the modem's minimum rail voltage under peak load — even though the fuel gauge still shows charge remaining. The gauge is reading a flat discharge curve, but the cell cannot sustain voltage when the LTE modem or screen backlight draws a spike of current. The phone's protection circuit interprets this as an under-voltage condition and cuts power. Run the first full calibration cycle as described above; if shutdowns persist, check that the battery connector is fully seated — a partial connection increases effective impedance and worsens voltage sag under load.
